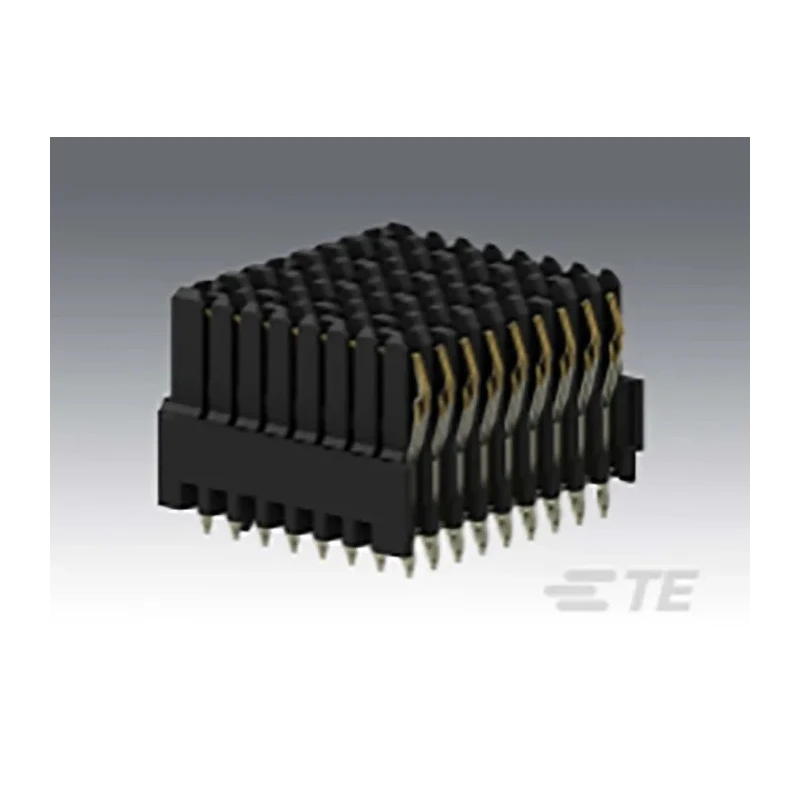

TE Connectivity 1.8 mm Pitch High Speed Backplane Connector, Vertical Female, 8 Column, 9 Row, 72 Way 2102735-1

TE Connectivity 2102735-1 is a high speed backplane connector designed with a 1.8 mm pitch and vertical female contact configuration. The connector has 8 columns and 9 rows, providing 72 connection ways, optimized for high vibration environments with a quad-redundant contact structure.

Its housing is made from liquid crystal polymer, providing strength and heat resistance, while the phosphor bronze contacts plated with gold and tin guarantee high conductivity and durability. The connector is designed for board mounting and uses solder termination for secure and reliable connections.

This backplane connector supports critical high speed communication protocols including Ethernet, Fibre Channel, InfiniBand, PCI Express, and Serial RapidIO, making it suitable for advanced electronic systems and industrial applications. It operates safely within a temperature range from -55°C up to 125°C, ensuring performance stability in harsh conditions.

The ruggedized design with a quad-redundant contact system enhances resistance to shock and vibration, which is essential for use in ground defense, missile defense, commercial aerospace, space systems, and C4ISR electronic systems. The connector also fits 0.8 inch card slot pitches and can integrate with high power, RF, and optical modules to expand its functionality.

Constructed with robust liquid crystal polymer housing and gold plated phosphor bronze contacts for longevity. Supports a variety of high speed protocols including Ethernet and PCIe for versatile use. Quad-redundant contact system designed for resistance to shock and vibration.

High operating temperature range suitable for demanding industrial environments. Modular, lightweight design enabling flexible board-to-board connections. Compatible with standardized card slot pitches and ruggedized guide hardware options.

Ideal for defense, aerospace, commercial, and space applications requiring reliable backplane connections. Manufactured in the United States to meet stringent quality standards.

This TE Connectivity 2102735-1 backplane connector is categorized under Backplane Connectors, within Electronics & Electricals > Connectors. For additional options and related connectors, browse EnvMart's extensive catalog of electronic and power connectors designed for industrial and military-grade applications.
