TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector, Straight Male, 4 Row, 24 Way 5536504-1

Free Delivery in India | Lowest Global Shipping Charges

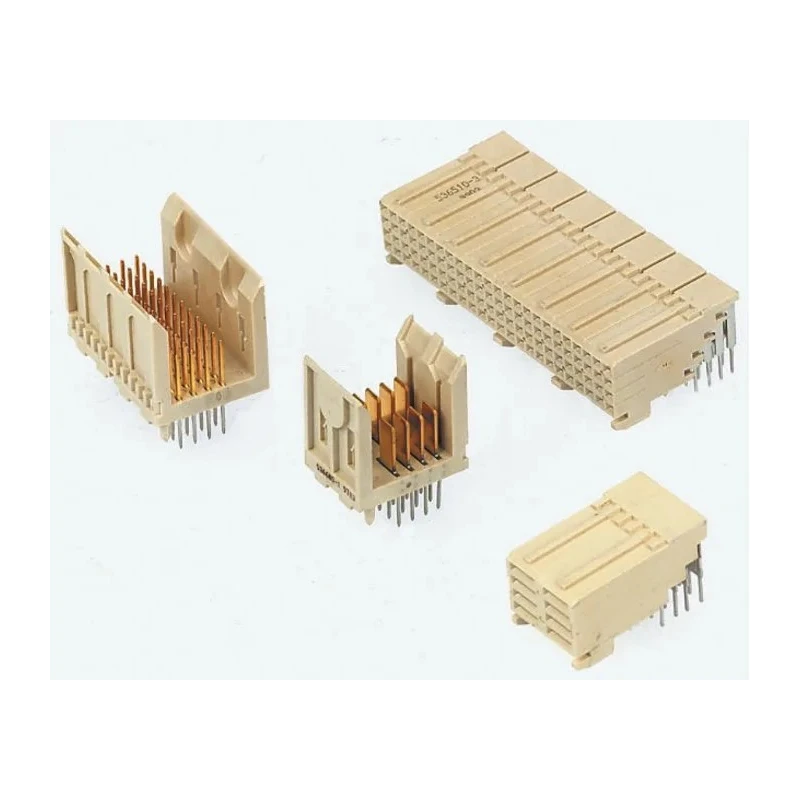

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector, Straight Male, 4 Row, 24 Way 5536504-1

Name: TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector, Straight Male, 4 Row, 24 Way 5536504-1
Brand: TE Connectivity
SKU: 220247
Price: 7.18 USD
Availability: InStock



Category Backplane Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	30V ac
Brand	TE Connectivity
Orientation	Straight
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	Z-PACK
Termination Type	Press-in
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	4
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	24
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	Futurebus+

Key Features

Constructed with durable liquid crystal polymer housing for high performance.
Features phosphor bronze contacts with gold over nickel plating for reliable conductivity.
Supports operating voltages up to 30V AC.
Operates within temperature range from -55°C to 125°C for industrial environments.
Mount type is through hole with press-in termination for secure PCB mounting.
Modular design allows end-to-end stackable assembly suitable for daughterboard to motherboard connections.
Complies with Futurebus+ and IEC 1076-4-0X-(48B) standards for high-density, high-speed signal and power transmission.
Ideal for electronic, industrial, and power connector applications.

Product Description

TE Connectivity 5536504-1 Backplane Connector is a high density, high speed 2 mm pitch Futurebus+ female connector with straight male orientation featuring 24 contacts arranged in 4 rows. The housing is made of liquid crystal polymer ensuring durability and thermal stability.

The connector contacts are crafted from phosphor bronze and plated with gold over nickel for low resistance and enhanced corrosion protection, making it suitable for critical industrial applications. It supports operating voltages of up to 30V AC and functions reliably in harsh temperature environments ranging from -55°C to 125°C.

This through-hole mounted connector uses a press-in termination type, assuring secure mechanical and electrical connection to PCBs. The modular design enables flexible stacking of the connectors end-to-end, ideal for linking daughterboards to motherboards or backplanes in electronic assemblies.

Compliant with industry standards including Futurebus+ and IEC 1076-4-0X-(48B), the Z-PACK series offers robust performance for power and signal connectivity in demanding industrial, manufacturing, and electronic control systems.

Durable liquid crystal polymer housing. Phosphor bronze contacts with gold over nickel plating. Supporting voltages up to 30V AC. Wide operating temperature range (-55°C to 125°C). Through hole mounting with press-in termination.

Modular and stackable design. Futurebus+ and IEC compliant.

This product supports applications in industrial automation, electronic manufacturing, backplane assembly, and power distribution systems. Its reliable construction and standards compliance make it a suitable choice for high-performance backplane connectivity solutions.

Explore more electronic connector solutions and related products available in our Backplane Connectors category at EnvMart.
