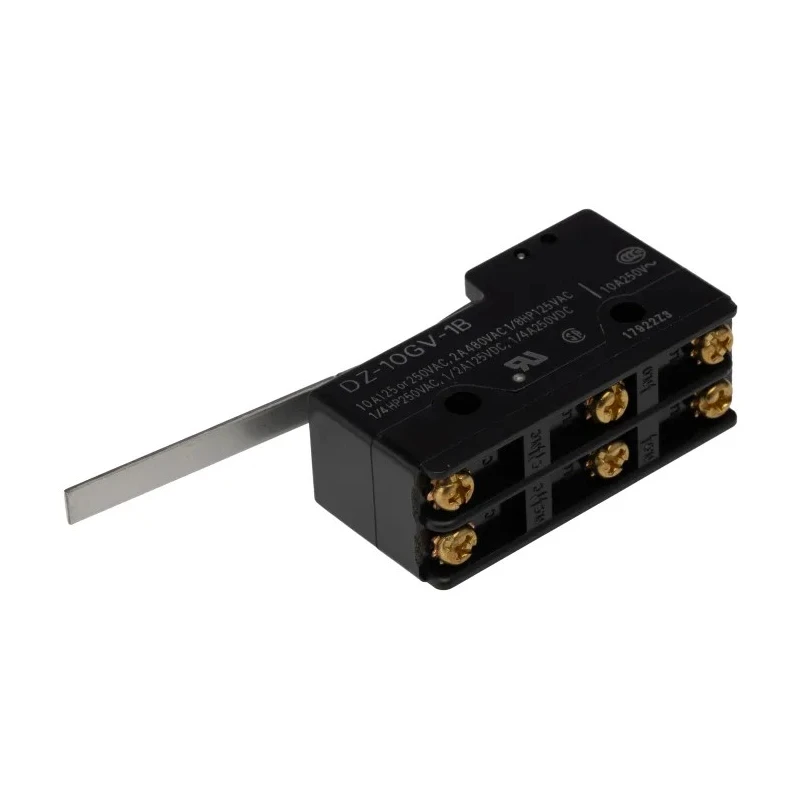

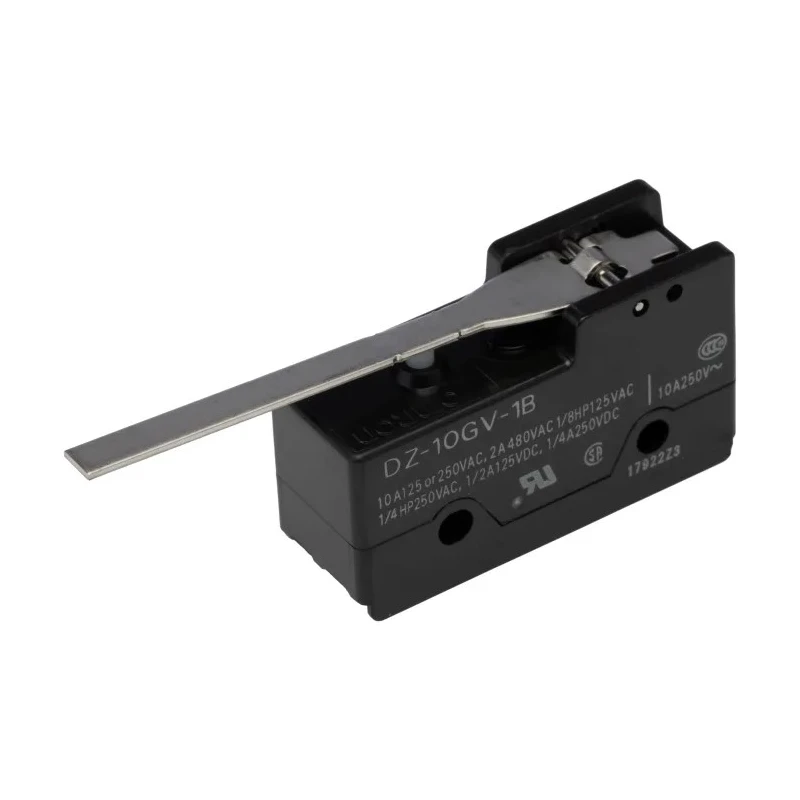

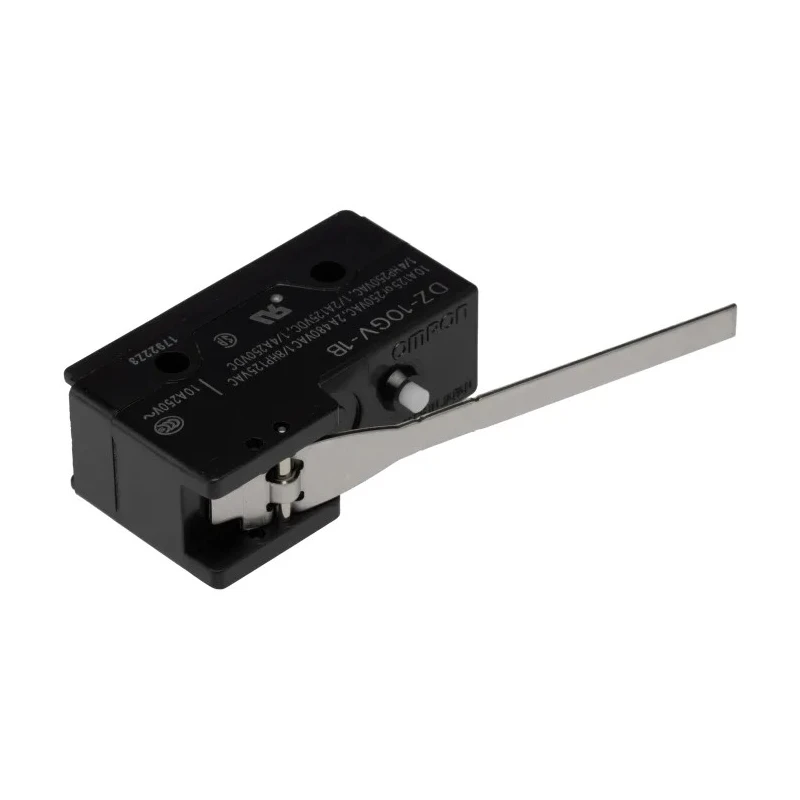

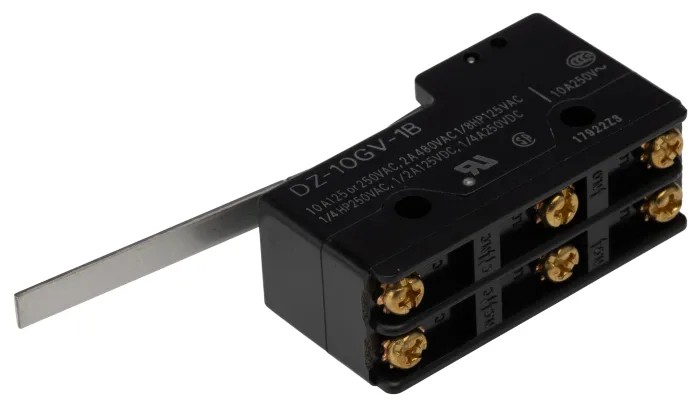

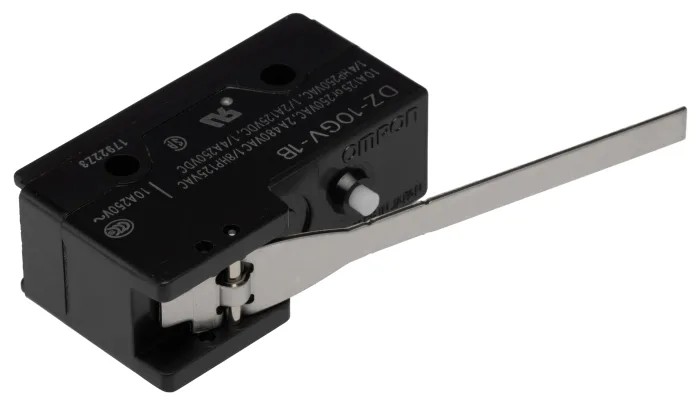

Omron DZ Series Lever Limit Switch, DPDT, Snap Action, IP00, 250V AC, 10A, Mechanical Life 1000000 Operations
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Length | 49.2mm |
| Model | IP00 |
| Depth | 27.9mm |
| IP Rating | IP00 |
| Width | 17.45mm |
| Series | DZ |
| Maximum Operating Temperature | 85°C |
| Mounting Orientation | Screw |
| Contact Configuration | DPDT |
| Actuator Type | Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Screw |
| Standards/Approvals | UL, RoHS, CSA |
| Operating Force | 1.96N |
| Mechanical Life | 1000000Operations |
| Switching AC Voltage | 250V ac |
Key Features
- Incorporates a lever actuator type for precise mechanical operation.
- DPDT configuration allows control of two independent circuits simultaneously.
- Robust snap-action contact type ensures reliable switching performance.
- IP00-rated housing suitable for protected indoor environments.
- Designed to operate in a temperature range from -25°C to 85°C.
- Mechanical life rated for one million operations, promising long service life.
- Screw terminal type eases wiring and maintenance tasks.
- Compact dimensions with length 49.2mm, width 17.45mm, and depth 27.9mm.
Product Description
Omron DZ-10GV-1B lever limit switch is a high-precision device designed for industrial automation and control systems. Featuring a lever actuator and a double pole double throw (DPDT) contact configuration with snap action, it provides reliable and fast mechanical switching at rated AC voltage of 250V and a switching current of 10A. Its compact size of 49.2mm length, 17.45mm width, and 27.9mm depth allows installation in space-limited control panels.
This switch operates effectively across a broad temperature range from -25°C up to 85°C, ensuring reliable performance in various industrial environments. The IP00 ingress protection rating indicates suitability for indoor use with protection against large foreign objects but no protection against water ingress. The screw terminal connection type facilitates easy wiring and secure installation.
With a mechanical life expectancy of 1,000,000 operations, the DZ-10GV-1B limit switch delivers durability for extensive use in machinery control and automation feedback loops. It complies with respected safety and environmental standards such as UL, RoHS, and CSA. Mounting is achieved via screws, recommended with torque settings between 1.18 to 1.47 N·m for optimum reliability.
Lever actuator provides precise mechanical control. DPDT contact configuration suits managing two independent circuits. Snap-action contact ensures rapid response to actuations. Compact form factor for flexible installation.
Wide operating temperature range for varied applications. Long mechanical life supports frequent switching operations. Screw terminal connection simplifies electrical installation. Certified for quality, safety, and environmental compliance.
Ideal for automation systems requiring high reliability and accurate position sensing. Recommended mounting with M4 screws using specified torque for stability.
This Omron limit switch is ideal for industrial, manufacturing, HVAC, and machinery automation use cases where precise limit detection and reliable electrical switching are needed. For further related products and automation control components, explore the Electronics & Electricals Switches & Sockets Limit Switches category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this model is 10A.
It operates effectively within a temperature range of -25°C to 85°C.
This unit features a double pole double throw (DPDT) contact configuration.
It incorporates a lever actuator type for precise mechanical operation.
The mechanical life of this switch is rated for one million operations.
The dimensions are 49.2mm in length, 17.45mm in width, and 27.9mm in depth.
It uses a screw terminal connection type, which facilitates easy wiring and installation.
The IP rating is IP00, indicating it is suitable for protected indoor environments.
It complies with UL, RoHS, and CSA safety and environmental standards.
Mounting is achieved via screws, with recommended torque settings between 1.18 to 1.47 N·m for stability.
It utilizes a snap-action contact type, ensuring reliable switching performance.
It is ideal for use in industrial automation, manufacturing, HVAC, and machinery automation applications.
