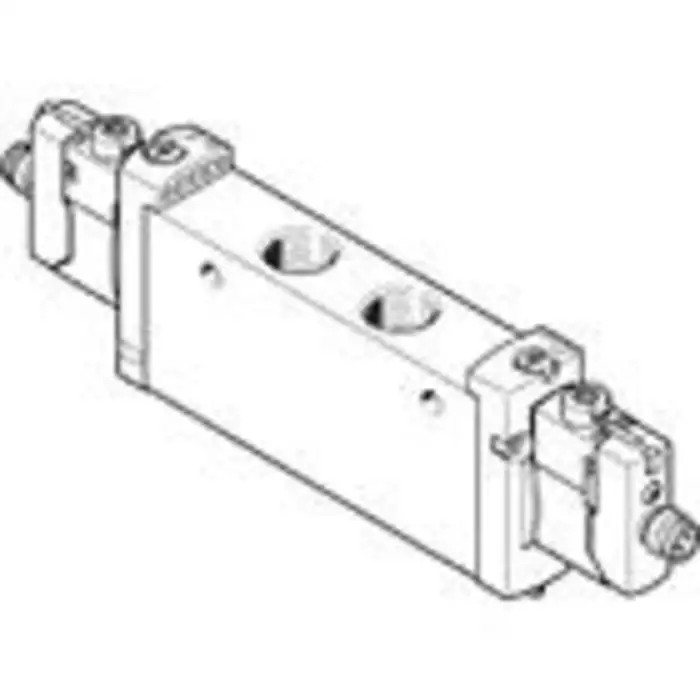

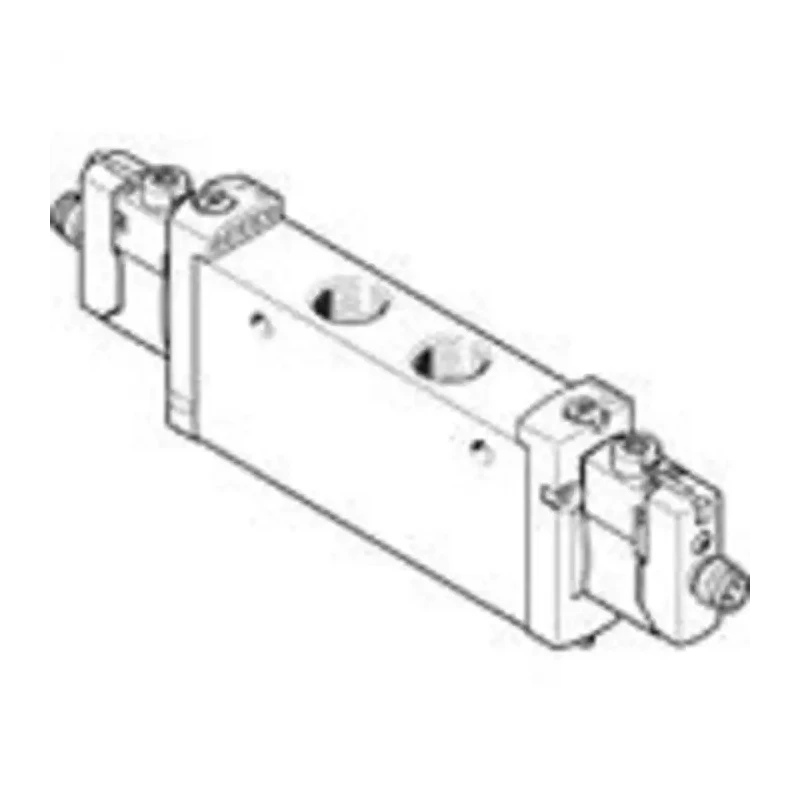

Festo Pneumatic Solenoid Valve 3/2 NC Solenoid G VUVG Series 24V dc Aluminium Alloy Body VUVG-L18-T32C-MT-G14-1R8L
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVG-L18-T32C-MT-G14-1R8L |
| Width | 18mm |
| Mount Type | In-Line |
| Series | VUVG |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 4 |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 870L/min |
| Standards/Approvals | RoHS, CSA, cULus |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 2bar |
| Valve Function | 3/2 NC |
| Electrical Connection Type | Electrical Connection Plate |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Features aluminium alloy body construction ensuring durability and lightweight design.
- Equipped with nitrile rubber (NBR) seals to maintain reliable sealing performance.
- Valve includes 3 ports with a female G connection thread standard sized at 1/4 inch.
- Maximum operating pressure is 8 bar with temperature range from -5°C to 60°C.
- Solenoid type is single with 1W power consumption, suitable for precise actuation control.
- Designed for in-line mounting with electrical connection plate type interface.
- Valve function is 3/2 normally closed (NC) providing 4 switching positions.
- Maximum flow rate up to 870 L/min supports efficient fluid handling.
Product Description
Festo VUVG-L18-T32C-MT-G14-1R8L pneumatic solenoid valve is a high-performance 3/2 normally closed valve operating at 24V dc. It is built with an aluminium alloy body that offers robust mechanical strength while ensuring light weight for integration in pneumatic systems. The valve is intended for industrial automation, manufacturing processes, and fluid power control applications.
This solenoid valve functions with a single solenoid for precise and reliable switching of pneumatic flows. It utilizes nitrile rubber (NBR) seals for effective sealing under variable conditions. The valve supports a maximum operating pressure of 8 bar and operates efficiently within temperatures from -5°C up to 60°C, making it suitable for a variety of industrial environments including manufacturing, HVAC, and laboratory pneumatic setups.
The device features a 1/4 inch female G port connection with three ports for flexible fluid routing. The valve offers four switching positions and a maximum flow rate of 870 L/min, allowing high throughput in control circuits. The electrical connection is via an electrical connection plate, simplifying installation and maintenance.
The internal pilot air supply supports various pressure ranges for customized operation. The valve is compliant with RoHS, CSA, and cULus certifications, ensuring quality and safety in industrial applications. Manufactured in Germany, this valve meets stringent industrial standards and delivers dependable performance in pneumatic control systems.
Aluminium alloy body construction provides strength and lightweight design. Sealed with nitrile rubber (NBR) for durability and leak prevention. Supports 24V dc single solenoid actuation with 1W power consumption. Ports: 3 with 1/4 inch female G connection for fluid versatility.
Maximum operating pressure 8 bar and maximum flow rate 870 L/min enhances system efficiency. Suitable for various industrial uses including manufacturing, HVAC, and automation. Electrical connection plate simplifies installation and maintenance.
RoHS, CSA, and cULus certified for compliance and safety. Manufactured in Germany ensuring strict quality control standards.
This Pneumatic Solenoid Valve is ideal for industrial plants requiring precise and reliable pneumatic control. Explore more pneumatic valves and related fluid power products in the Industrial Valves & Valve Fittings section at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic solenoid valve is 8 bar.
It operates efficiently within a temperature range from -5°C to 60°C.
This model features three ports with a female G connection thread standard sized at 1/4 inch.
The maximum flow rate of this valve is up to 870 L/min.
It utilizes single solenoid actuation with a power consumption of 1W.
The valve has an aluminium alloy body and nitrile rubber (NBR) seals for effective sealing performance.
The valve functions as a 3/2 normally closed (NC) valve, providing four switching positions.
It features an electrical connection plate type interface for simplified installation.
Yes, it is compliant with RoHS, CSA, and cULus certifications.
The minimum pilot pressure required for this valve is 2 bar.
This pneumatic solenoid valve is manufactured in Germany, ensuring adherence to stringent quality control standards.
