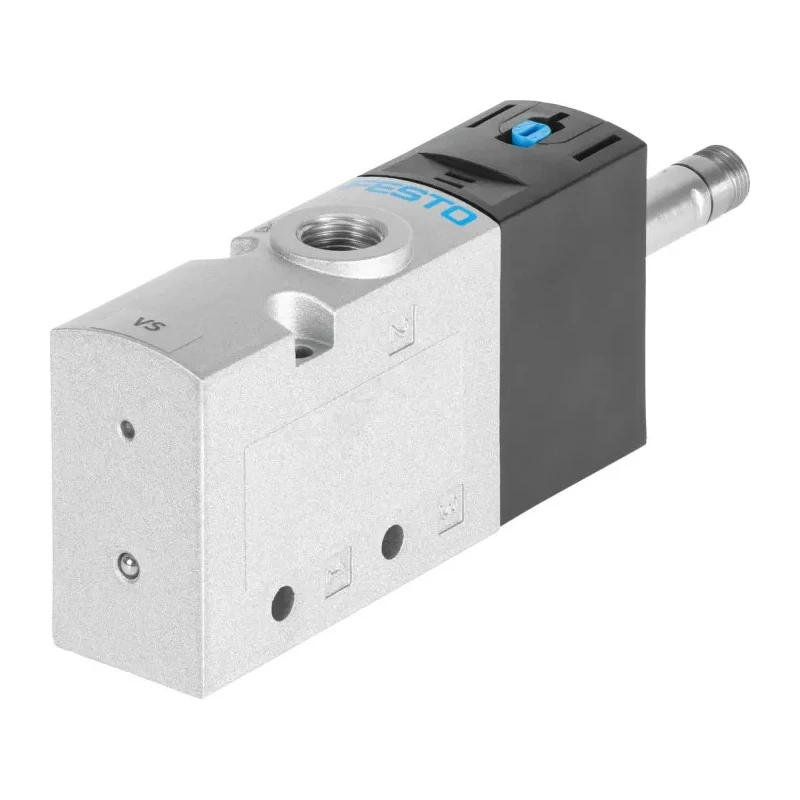

Festo Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Port Die Cast Aluminium Body VUVS-L20-M32C-MD-G18-F7

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Port Die Cast Aluminium Body VUVS-L20-M32C-MD-G18-F7

Name: Festo Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/8 Port Die Cast Aluminium Body VUVS-L20-M32C-MD-G18-F7
Brand: FESTO
SKU: 251875
Price: 8056.99 INR
Availability: InStock



Category Pneumatic Solenoid Valve Brand FESTO Condition New

Specifications

Country of Origin	China
Brand	Festo
Body Material	Die Cast Aluminium
Maximum Operating Pressure	10 bar
Model	VUVS-L20-M32C-MD-G18-F7
Width	21mm
Mount Type	In-Line
Series	VUVS
Number Of Ports	3
Maximum Operating Temperature	60°C
Number of Positions	2
Port Size	1/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	700L/min
Standards/Approvals	cULus, RoHS
Connection Thread Standard	G 1/8
Minimum Pilot Pressure	2.5bar
Valve Function	3/2 NC
Solenoid Type	Single
Port Gender	Female

Key Features

Operates with a solenoid actuation type and single solenoid configuration.
Constructed with a durable die cast aluminium body for enhanced strength.
Suitable for operating pressures between 2.5 and 10 bar with a maximum operating pressure of 10 bar.
Provides a maximum flow rate of 700 L/min ensuring efficient pneumatic system performance.
Designed with Nitrile Rubber (NBR) seals for reliable sealing and contamination resistance.
Operates reliably between minimum temperature -10°C and maximum temperature 60°C.
Features 3 ports and 2 valve positions for versatile pneumatic control.
Mount type is in-line for straightforward installation in pneumatic circuits.

Product Description

Festo VUVS-L20-M32C-MD-G18-F7 pneumatic solenoid valve is a 3/2 NC solenoid valve with a G 1/8 port size designed for precise and reliable airflow management in various industrial processes.

This valve uses a single solenoid for electrical actuation and features a sturdy die cast aluminium body that provides durability and corrosion resistance.

Its operating pressure range of 2.5 to 10 bar and maximum operating pressure of 10 bar make it well suited for a wide range of pneumatic control tasks. Seal material is nitrile rubber (NBR), which ensures effective sealing and prevents contamination ingress, supporting long-term valve operation.

Performance includes a maximum flow rate of 700 L/min, enabling efficient pneumatic system flow. The valve reliably functions within temperature limits of -10°C to +60°C, making it suitable for diverse industrial environments.

Featuring 3 ports and 2 positions, this valve allows flexible pneumatic control with G 1/8 thread female ports mounted in-line for convenient integration. Its fast switching response and manual override function (push or detent actuator) enable precise control even during power interruptions.

Common applications include laboratory equipment, factory automation systems, and automotive industry pneumatic controls where reliable solenoid operation is critical. Operates with solenoid actuation and single solenoid type.

Constructed with die cast aluminium body for durability. Seal material is nitrile rubber (NBR) for effective sealing. Supports maximum operating pressure of 10 bar and pilot pressure range 2.5 - 10 bar. Maximum flow rate of 700 L/min ensures efficient performance.

Operates in temperature range -10°C to 60°C. Features 3 ports, 2 valve positions, and G 1/8 female port connection. In-line mount type for easy installation. This product is manufactured in China and is new in condition. It complies with cULus and RoHS standards ensuring quality and environmental safety.
