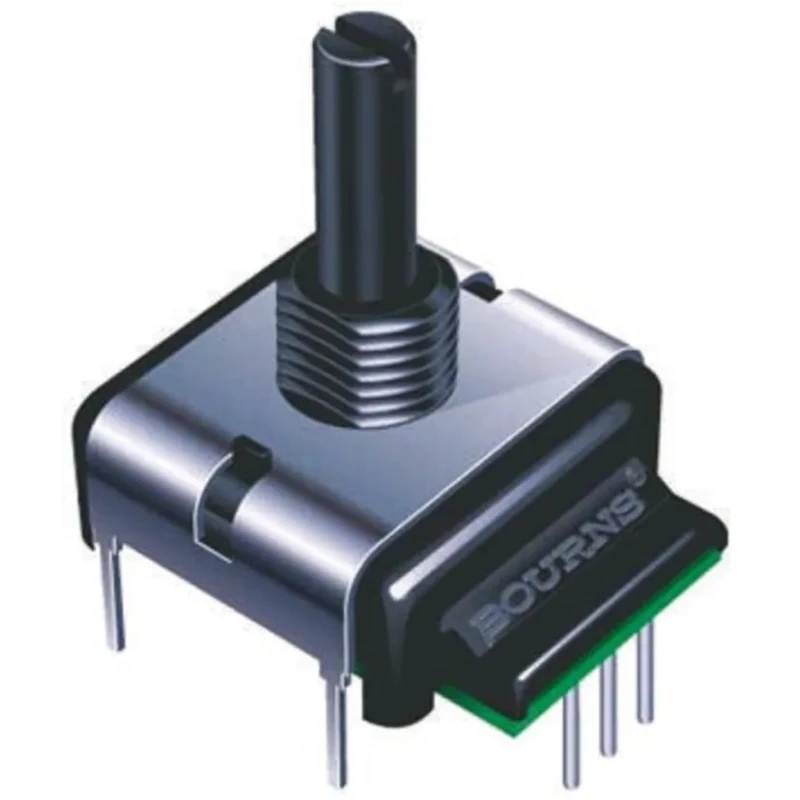

Bourns ECW Series Incremental Digital Contacting Encoder 10V dc, 24 ppr, Digital Signal, Solid Shaft 6.35 ECW1J-C24-AC0024L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | ECW1J-C24-AC0024L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | ECW |
| Overall Width | 22.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 28.49mm |
| Shaft Type | Solid |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 10V dc |
| Overall Depth | 27.51mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Digital |
Key Features
- Uses incremental encoder technology for accurate position sensing.
- Delivers 24 pulses per revolution suitable for precise motion applications.
- Operates at a maximum speed of 120 rpm with a 10V dc supply voltage.
- Features a solid shaft with a diameter of 6.35 mm and IP40 rating.
- Designed for panel mount with an operating temperature range from -40°C to 85°C.
- Compact dimensions with overall depth 27.51 mm, height 28.49 mm, and width 22.2 mm.
- Built to RoHS standards ensuring environmental compliance.
Product Description
Bourns ECW1J-C24-AC0024L Incremental Digital Contacting Encoder is engineered for precise motion control in industrial and automation environments, featuring incremental encoder technology with a quadrature digital output.
Operating on a 10V dc supply, this encoder provides 24 pulses per revolution and supports a maximum rotational speed of 120 rpm, making it suitable for applications requiring precise angular position feedback.
The solid shaft design with a diameter of 6.35 mm ensures durability, while the encoder body offers compact dimensions (27.51 mm depth, 28.49 mm height, and 22.2 mm width) enabling panel mount installations with ease. The IP40 ingress protection rating safeguards the device from intrusion of solid objects larger than 1 mm.
With an operating temperature range from -40°C to 85°C, the ECW1J-C24-AC0024L model is built to withstand diverse industrial environments. Compliance with RoHS standards verifies its adherence to environmental and safety regulations.
Incremental encoder technology enables accurate position measurement. 24 pulses per revolution output ensures fine resolution for control systems. Solid 6.35 mm diameter shaft for reliable mechanical coupling. Panel mount design with compact form factor.
IP40 rated for protection against small particulates. Wide operating temperature range for versatile use. RoHS compliant assuring environmentally safe manufacturing.
This encoder is ideal for industrial automation, motion control, robotics, and instrumentation sectors requiring reliable rotational position feedback. It can be integrated into machinery to enhance production efficiency and precision control. Environmentally conscious designs and robust mechanical characteristics make it a dependable choice for engineers and system integrators alike.
Explore more Bourns sensors and incremental encoders at EnvMart to find components that fit your automation needs.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Bourns ECW1J-C24-AC0024L encoder is 10V dc.
This model delivers 24 pulses per revolution, which is suitable for precise motion applications.
The encoder supports a maximum rotational speed of 120 rpm.
It operates within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
The encoder provides a digital output signal type, enabling accurate position feedback.
The solid shaft has a diameter of 6.35 mm.
The overall dimensions are 27.51 mm in depth, 28.49 mm in height, and 22.2 mm in width.
Yes, it is compliant with RoHS standards, ensuring adherence to environmental safety regulations.
The encoder has an IP40 rating, providing protection against solid objects larger than 1 mm.
It is designed for panel mount installation, which simplifies integration into various systems.
This encoder belongs to the ECW series, which is known for its incremental encoder technology.
The encoder is manufactured in India.
