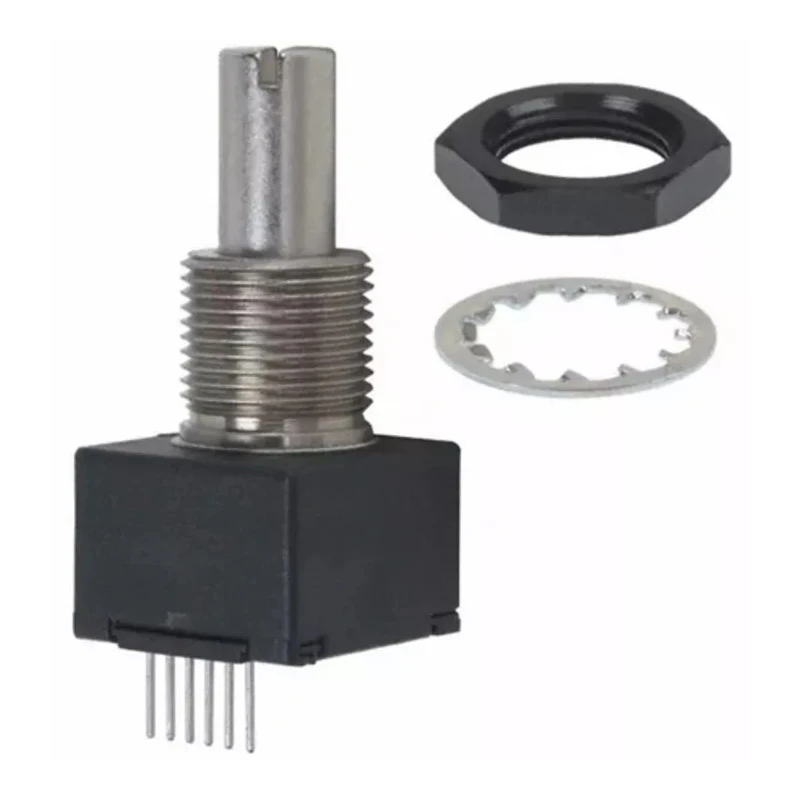

Bourns EM14 Series 14 mm Rotary Optical Encoder, 5V DC, 32 PPR, HCMOS TTL Signal, Slotted Shaft, 6 mm, Panel Mount

Bourns EM14R0D-R20-L032S is a 14 mm series rotary optical encoder designed to provide precise shaft position feedback for industrial and automation applications. Operating at 5V DC supply voltage, this encoder offers 32 pulses per revolution with HCMOS and TTL compatible output signals. The slotted shaft design with a 6 mm diameter allows direct integration into motion control systems.

The encoder's panel mount type construction and IP54 splashproof shaft seal provide durability and protection against dust and moisture, making it suitable for industrial environments. It supports a maximum revolution speed of 120 rpm and withstands operating temperatures ranging from -40°C to 70°C, ensuring reliable performance in varied climates.

This rotary optical encoder is widely used in human-machine interfaces (HMI) and control gear settings, where compact size and high accuracy are critical. The 14.25 mm width and 30.57 mm overall depth enable versatile mounting options within electronic assemblies.

Key features include optical encoder technology, pin terminal type for robust electrical connections, and compliance with RoHS environmental directives. The robust design ensures a long operational life with consistent pulse generation over extended cycles.

This encoder uses optical technology for precise motion control. Output signals are compatible with HCMOS and TTL logic standards. The device supports a maximum rotational speed of 120 rpm. It has a compact design with an overall width of 14.25 mm and depth of 30.57 mm.

Features an IP54-rated splashproof shaft seal ensuring durability. Operating temperature range is from -40°C to 70°C, suitable for harsh environments. Ideal for human-machine interface (HMI) applications requiring reliable shaft position feedback.

Panel mount type design allows easy installation in control gear setups. The product complies with RoHS environmental standards. Terminal connection type is pin for secure electrical interface.

This product is suitable for industrial automation, manufacturing process control, and other motion sensing applications requiring high precision and reliability. Explore the wide range of Bourns Motion Control Sensors at EnvMart for your automation needs.
