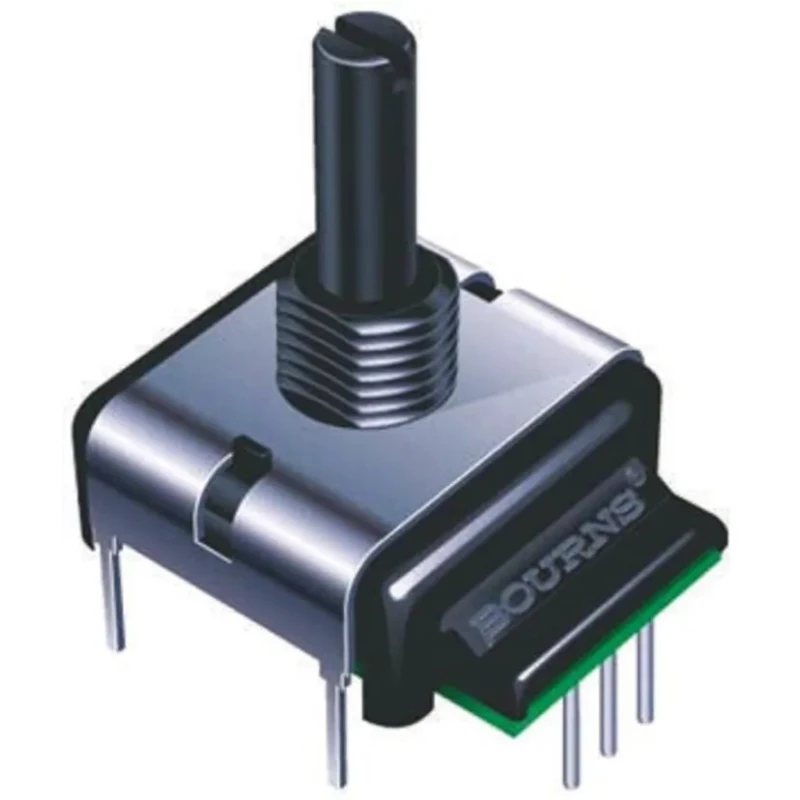

Bourns Incremental Digital Contacting Encoder, ECW Series, 10V DC, 24 PPR, Digital Signal, Solid Shaft ECW1J-R24-BC0024L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Model | ECW1J-R24-BC0024L |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Series | ECW |
| Overall Width | 23.37mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 27.68mm |
| Shaft Type | Solid |
| Pulses per Revolution | 24ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 10V dc |
| Overall Depth | 28.02mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Digital |
Key Features
- Operates at a maximum supply voltage of 10V DC with a digital output signal.
- Features a solid shaft type with a diameter of 6.35 mm for reliable mounting.
- Designed for panel mount with IP40 protection rating to prevent ingress of solid objects.
- Supports operating temperature range from -40°C to 85°C ensuring performance in varying conditions.
- Maximum rotational speed of 120 rpm for accurate incremental positioning.
- Complies with RoHS standards for environmental and safety considerations.
Product Description
Bourns ECW1J-R24-BC0024L is a high-quality incremental digital contacting encoder from the ECW series engineered for demanding motion control sensor applications. Operating at a supply voltage of 10V DC, it provides 24 pulses per revolution (ppr) output in a durable digital signal format.
The encoder features a solid shaft design with a 6.35 mm diameter, optimally suited for panel mounting arrangements. Its compact size with overall depth of 28.02 mm, height 27.68 mm, and width 23.37 mm allows integration in tight spaces.
Rated with an IP40 protection class, this encoder is designed to withstand penetration by solid objects larger than 1 mm, fitting industrial environment requirements. The operating temperature range from -40°C to 85°C ensures reliability under diverse conditions encountered in industrial, automation, laboratory, and manufacturing environments.
This product is capable of a maximum rotational speed of 120 revolutions per minute, delivering precise incremental position sensing critical for motion control feedback.
The ECW series incremental encoders by Bourns are known for their long operating life and robust construction, featuring a bushing mount that enhances stability during operation. Compliance with RoHS directives guarantees reduced environmental impact.
Operates at a maximum supply voltage of 10V DC with a digital output signal. 24 pulses per revolution for precise incremental measurements. Solid shaft of 6.35 mm diameter, panel mountable encoder. IP40 rated protection against solid object ingress.
Wide operating temperature range from -40°C to 85°C. Compact overall dimensions for flexible system installation. Maximum rotational speed 120 rpm supports versatile applications. RoHS compliant for environmental sustainability.
The Bourns ECW1J-R24-BC0024L encoder is well suited for use in industrial automation systems, Motion Control Sensors, manufacturing equipment, robotics, and laboratory instrumentation. With its reliable incremental output and durable design, it offers a dependable solution for precise positioning and speed feedback.
Explore EnvMart's extensive catalog of sensors and motion control components to find complementary products and enhance your automation projects with trusted brand Bourns.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The encoder operates at a maximum supply voltage of 10V DC.
It provides 24 pulses per revolution (ppr) for precise incremental measurements.
The operating temperature range is from -40°C to 85°C, ensuring reliability in various conditions.
It outputs a digital signal type, suitable for motion control applications.
The solid shaft has a diameter of 6.35 mm, designed for reliable mounting.
The overall dimensions are 23.37 mm in width, 27.68 mm in height, and 28.02 mm in depth.
It has a maximum rotational speed of 120 revolutions per minute (rpm).
The encoder has an IP40 protection rating against the ingress of solid objects larger than 1 mm.
Yes, it complies with RoHS standards for reduced environmental impact.
This model is designed for panel mounting, making it suitable for various installations.
It belongs to the ECW series of incremental digital contacting encoders.
The encoder is manufactured in India.
