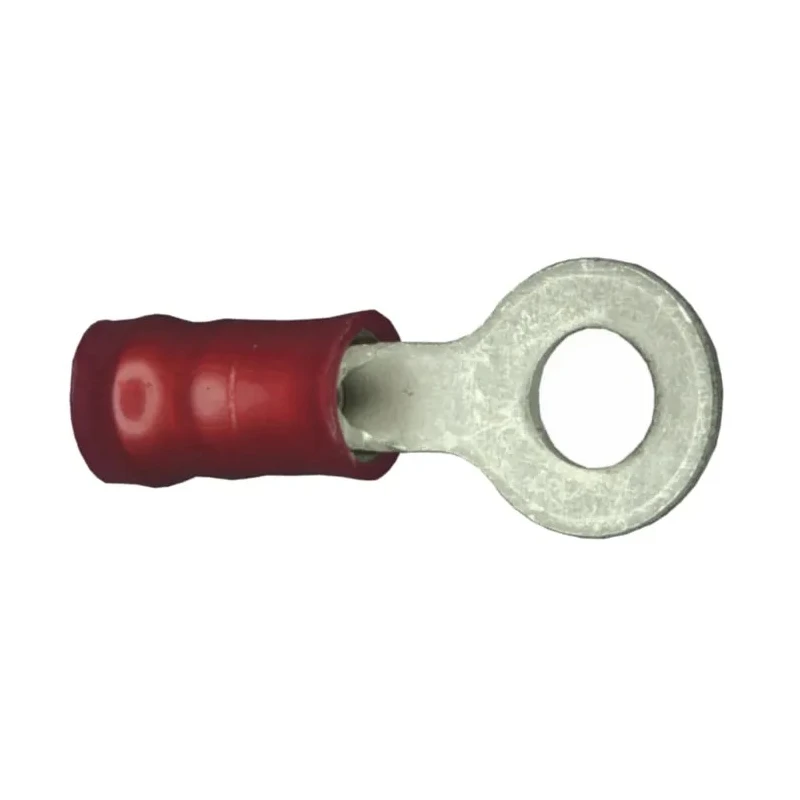

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG Wire Size Nylon Insulation Red 32835

TE Connectivity 32835 PIDG Insulated Ring Terminal is designed for secure and reliable electrical connections in industrial, electronic, and power distribution applications. This ring terminal supports wire sizes ranging from 22 AWG to 16 AWG, making it suitable for various wiring tasks requiring firm connection and durability.

The terminal features a precision-formed copper barrel with serrations that enhance contact and tensile strength upon crimping. This barrel is plated with tin to prevent corrosion, ensuring long-term electrical conductivity and mechanical integrity.

The outer insulation is made from durable nylon, color-coded in red for easy identification according to wire gauge. With a stud size of M4, an inner ring diameter of 4.34 mm, and an outer ring diameter of 8.74 mm, it fits securely onto appropriately sized studs and connectors.

The ring terminal is rated for a maximum operating temperature of 105°C, making it suitable for moderately high-temperature environments such as industrial controls, HVAC systems, and power electronics. Its overall length of 22.25 mm and a thickness of 0.79 mm provide mechanical robustness in demanding applications.

TE Connectivity's PIDG MIL-SPEC ring terminals conform to military specifications for quality and performance, ensuring consistent and dependable electrical connections. They are widely used in manufacturing, automotive wiring, electrical panels, and control systems.

Compatible with wire sizes from 22 AWG to 16 AWG, ensuring versatility in wiring applications. Features a nylon insulated sleeve for electrical safety and color identification. Constructed with copper contact material plated with tin for corrosion resistance.

M4 stud size with inner ring diameter of 4.34 mm and outer ring diameter of 8.74 mm. Overall length of 22.25 mm and thickness of 0.79 mm for reliable mechanical strength. Rated for maximum operating temperature up to 105°C for high thermal endurance.

Designed to provide maximum contact and tensile strength after crimping per MIL-SPEC standards.

This insulated ring terminal is ideal for use in industrial automation, power distribution, electrical maintenance, and manufacturing sectors where reliable wire terminations are critical.
