Omron Z Series Plunger Limit Switch, SPDT Contact Configuration, Thermosetting Resin Housing, 500V, Model IP00

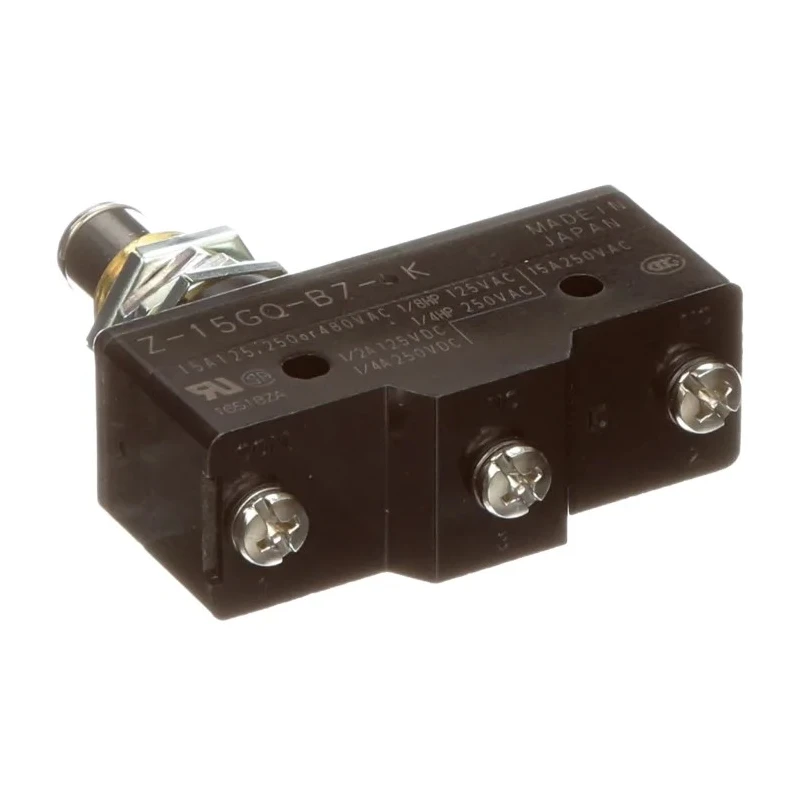

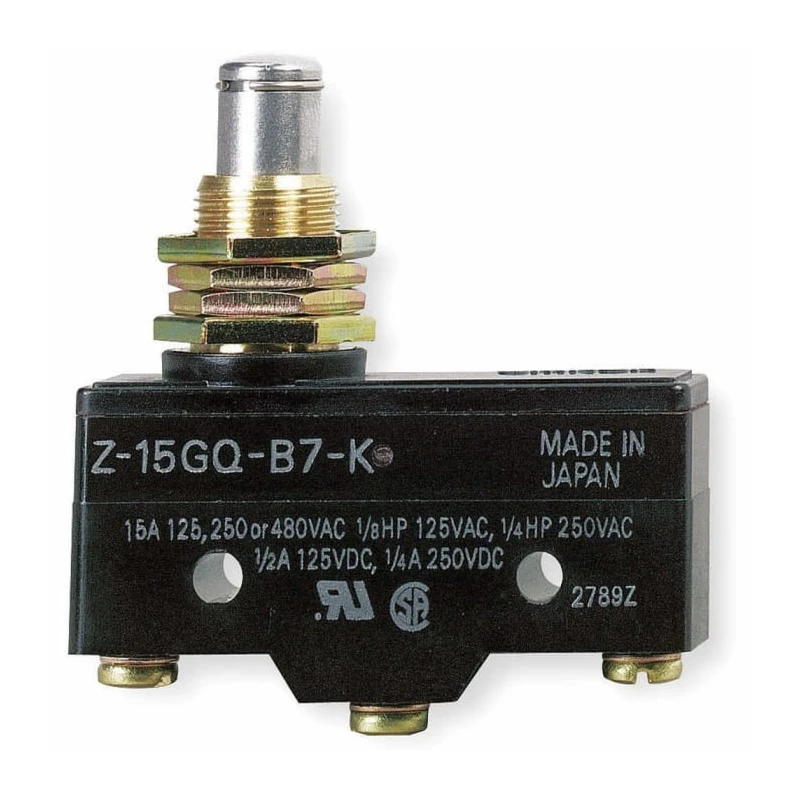

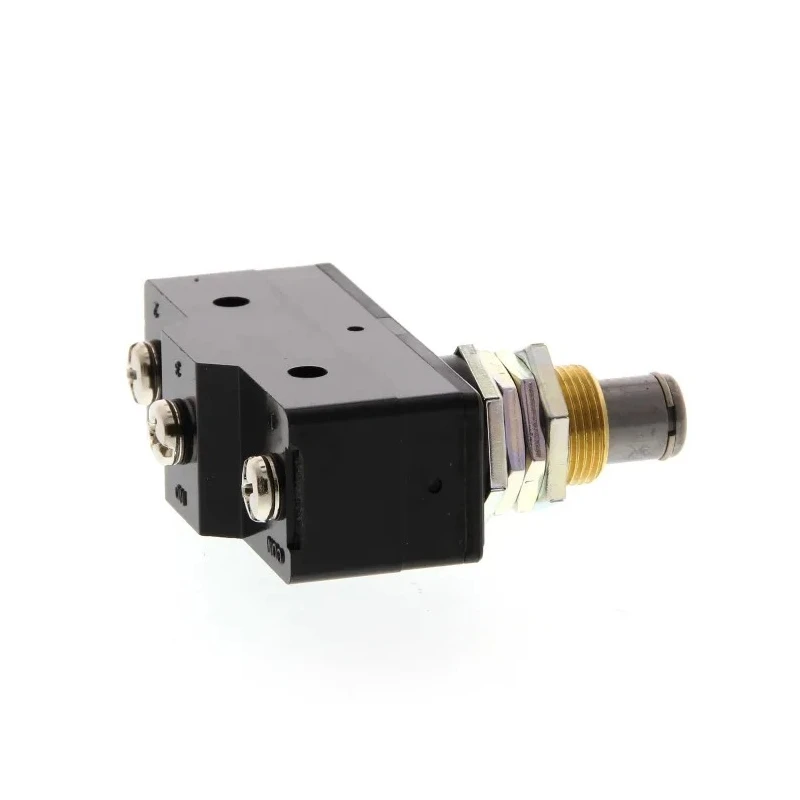

Omron Z-15GQ-B7-K is a high-quality plunger limit switch designed to provide precise control and protection in industrial automation systems. This model features a Single Pole Double Throw (SPDT) contact configuration and is housed in durable thermosetting resin to withstand rigorous operating conditions.

The switch operates reliably with a mechanical life of up to 20 million operations and can handle switching AC voltages up to 500 volts with a current rating up to 15 amperes. It is suitable for diverse temperature environments ranging from -25°C to 80°C. The compact size and side mounting orientation facilitate easy integration into machinery and equipment with limited space.

Its snap action contact mechanism ensures rapid and consistent switching performance, making it ideal for applications such as position detection in automation equipment, conveyor safety systems, motor controls, robotics, packaging machinery, and assembly line quality control.

The thermosetting resin housing enhances durability and electrical insulation. Screw-type terminals provide secure and stable electrical connections. Compliance with international standards including CCC, CE, CSA, and UL certifies this product for safety and reliability in industrial applications.

This limit switch features a plunger actuator type for precise mechanical operation. It employs a snap action contact type ensuring rapid response and durability. The device is designed for side mounting orientation and operates between -25°C to 80°C.

Electrical rating supports switching AC voltage up to 500V with a maximum current of 15A. The housing is constructed from durable thermosetting resin material suitable for industrial environments. Mechanical life expectancy is rated for 20 million operations, providing long-term reliability.

Compact dimensions of 49.2mm length, 25.5mm width, and 17.45mm depth allow installation in confined spaces. Mounting and terminal configurations feature screw terminals for secure electrical connections. The switch complies with CCC, CE, CSA, and UL standards ensuring international safety compliance.

Designed for position detection in automation equipment, conveyor systems, motor control, and packaging machinery.

This Omron Z Series limit switch is ideally suited for industrial, manufacturing, automation, and HVAC environments where precise position sensing and reliable switching are critical for operational efficiency and equipment safety.
