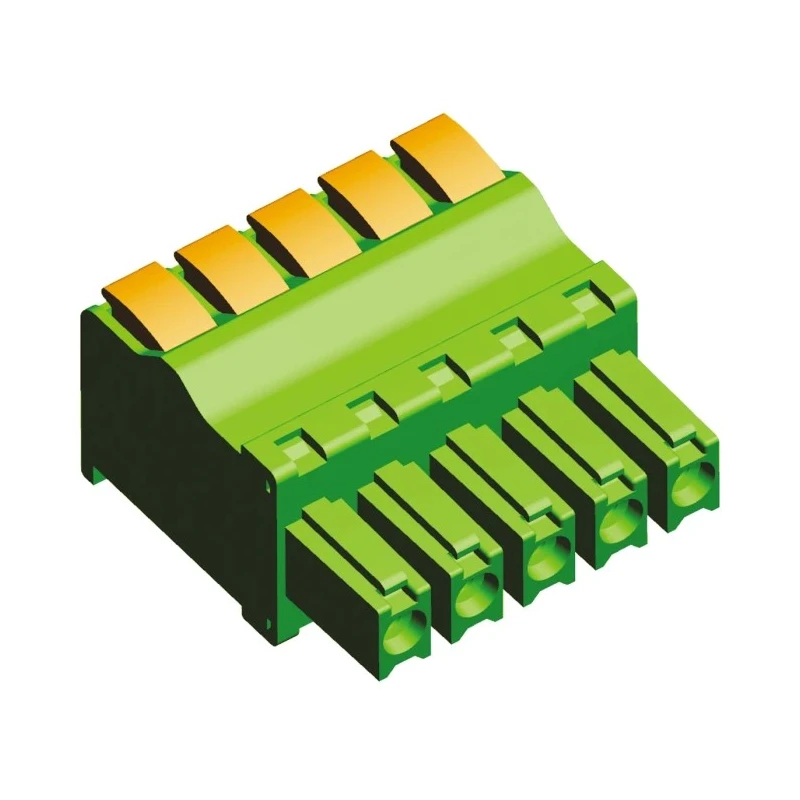

TE Connectivity Buchanan Series Pluggable Terminal Block 5-Contact, 3.81 mm Pitch, 1 Row, 9A, 300V AC, Green 1986720-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 9A |
| Length | 19.05mm |
| Depth | 20.75mm |
| Width | 11.65mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- Rated current of 9A suitable for a variety of electrical connections.
- Compact 3.81 mm pitch allowing high-density PCB layouts.
- Male connector type with straight orientation for easy wiring.
- Durable green polyamide housing ensures long-lasting insulation.
- Designed for wire sizes ranging from 14 AWG to 30 AWG.
- Supports a voltage rating of 300V AC for industrial applications.
- Single row construction with 5 contact points for multi-wire connections.
- Spring clamp style terminal providing secure and reliable wire retention.
Product Description
TE Connectivity 1986720-5 Pluggable Terminal Block is a high-quality connector designed for industrial and electronic use. Featuring a 5-contact male configuration with a 3.81 mm pitch and single row layout, this terminal block is suitable for robust electrical connections requiring a current rating of up to 9A and voltage of 300V AC. The green polyamide housing provides excellent durability and insulation performance, making it ideal for rigorous environments.
This terminal block supports a wide range of wire sizes from 14 AWG to 30 AWG, accommodating both stranded and solid wires. The spring clamp design ensures secure wire retention with top entry, facilitating straightforward installation and maintenance. Its compact dimensions permit high-density PCB configurations and efficient space usage in control panels, circuit assemblies, and other equipment.
Ideal for industrial, commercial, and manufacturing applications, this connector meets the needs of power distribution, signal transmission, and control systems. Its straight orientation allows flexible wiring setups and ease of connectivity.
Rated current: 9A for stable performance under electrical load. Pitch: 3.81 mm supports precise PCB mounting and alignment. Housing material: Polyamide enhances mechanical strength and electrical insulation. Connector gender: Male, designed for standard mating with compatible headers.
Wire size range: 14 to 30 AWG for versatility. Voltage: 300V AC suitable for various industrial power levels. Single row with 5 contacts facilitates multiple connection points. Compact size with length 19.05 mm, depth 20.75 mm, and width 11.65 mm.
No certifications explicitly stated; compliance with standard industrial requirements implied.
Choose TE Connectivity Buchanan Series for reliable, high-quality Pluggable Terminal Blocks ensuring safe and efficient electrical connectivity. Explore the extensive range of electronic connectors and components available.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a rated current of 9A, making it suitable for various electrical connections.
It supports a voltage rating of 300V AC, suitable for industrial applications.
The contact pitch is 3.81 mm, allowing for compact and high-density PCB layouts.
This model supports wire sizes ranging from 14 AWG to 30 AWG, accommodating both stranded and solid wires.
The dimensions are 19.05 mm in length, 20.75 mm in depth, and 11.65 mm in width.
The housing is made from durable green polyamide, which provides good insulation and mechanical strength.
It features a single row construction with 5 contact points for multi-wire connections.
The connector has a straight orientation, which facilitates easy wiring setups.
The spring clamp design allows for secure wire retention and top entry, making installation straightforward.
It is ideal for industrial, commercial, and manufacturing applications involving power distribution and signal transmission.
No specific certifications are explicitly stated, but it is implied to comply with standard industrial requirements.
The connector is male, designed for standard mating with compatible headers.
