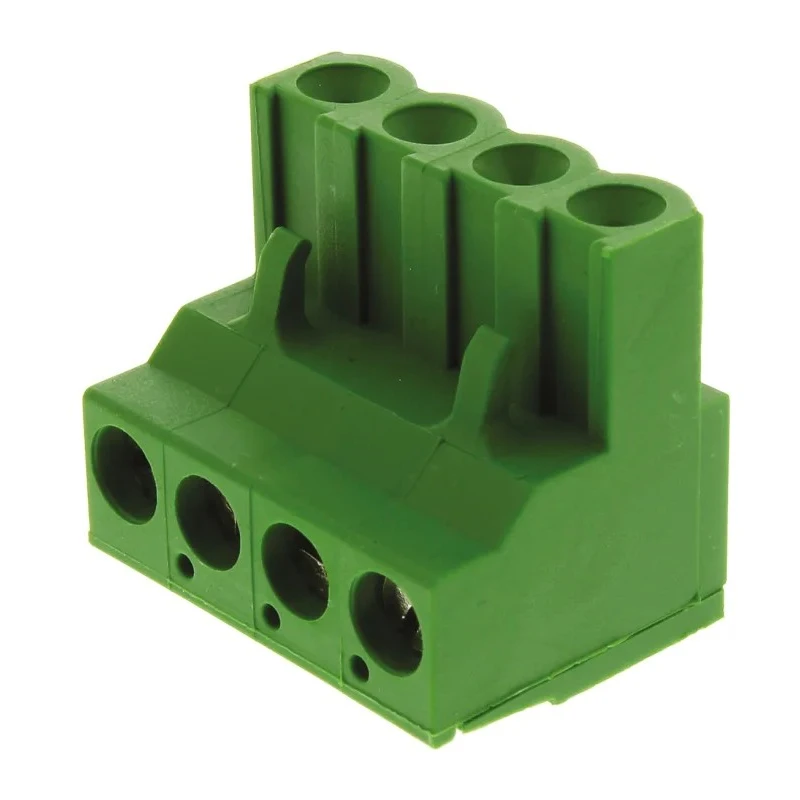

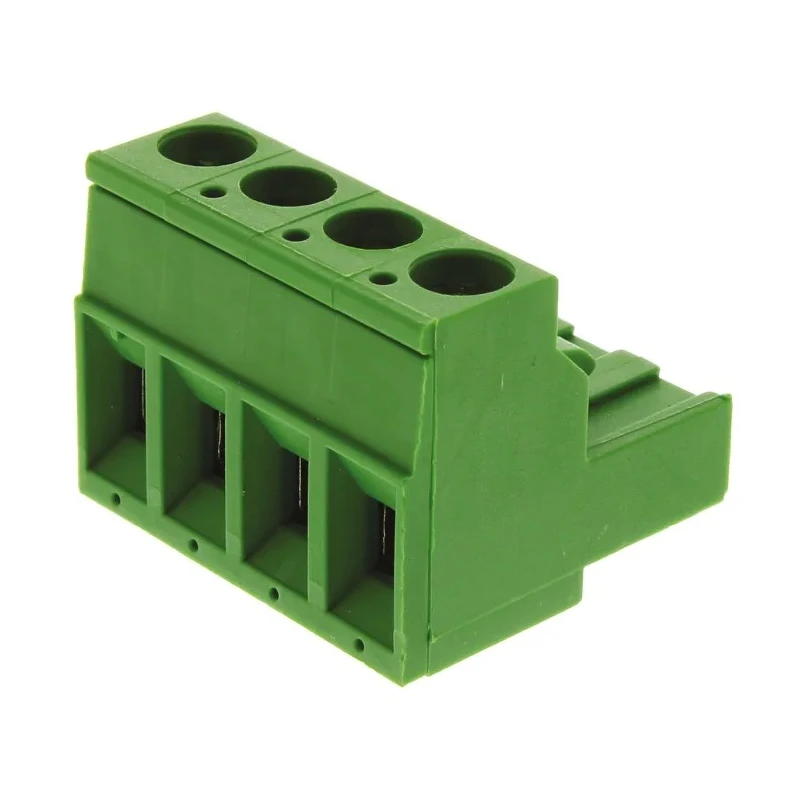

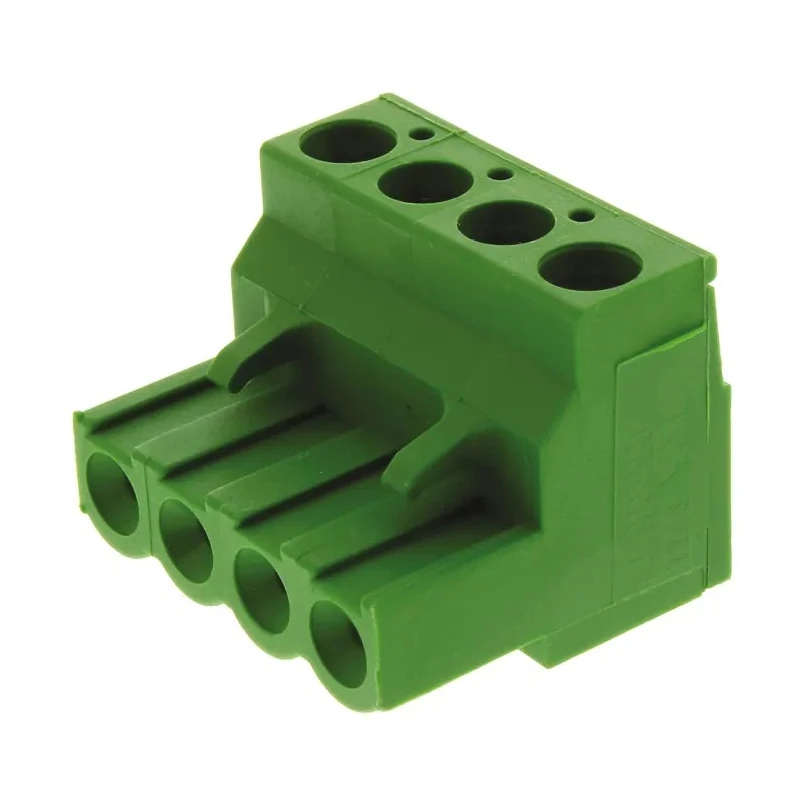

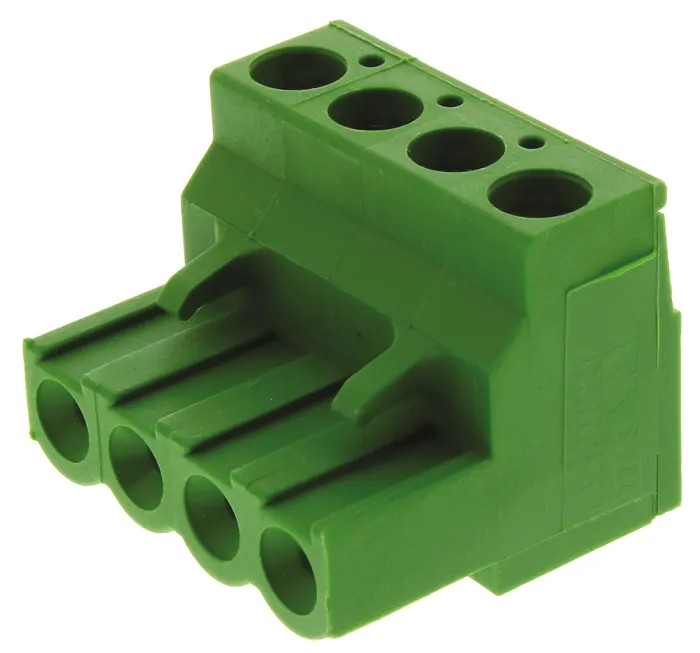

TE Connectivity Buchanan Series Pluggable Terminal Block 4-Contact 5.08 mm Pitch 1 Row 300V AC 15A 796634-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 10.16mm |
| Model | 796634-4 |
| Depth | 18.4mm |
| Width | 15.5mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS, CSA File no 007189A, UL no E 60677 |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
| Wire Connection Method | Screw |
Key Features
- Features a robust green polyamide housing for durability.
- Accommodates wire sizes ranging from 30 AWG to 12 AWG.
- Rated for a maximum current of 15 amperes and voltage of 300V AC.
- Right angle orientation with screw connection method ensures secure wiring.
- Compact dimensions of 18.4 mm depth, 15.5 mm width, and 10.16 mm length.
- Side stackable design facilitates flexible PCB mounting layouts.
- Complies with RoHS, UL E60677, and CSA 007189A standards.
- Suitable for applications in industrial automation, electronic assemblies, and control panel wiring.
Product Description
TE Connectivity 796634-4 Buchanan Series Pluggable Terminal Block is a 4-contact terminal designed for reliable, secure electrical connections in PCB and industrial applications. It features a 5.08 mm pitch with a single row of contacts, suitable for accommodating wire sizes from 30 AWG to 12 AWG. The terminal block integrates a green polyamide 6.6 GF housing offering chemical resistance and durability, making it ideal for corrosive environments.
Rated at 15 amperes current and 300V AC voltage, this right angle, screw terminal connector ensures effective and safe wiring solutions on printed circuit boards. Its compact dimensions - depth of 18.4 mm, width of 15.5 mm, and length of 10.16 mm - allow efficient PCB layout and space conservation. The side stackable design facilitates modular assembly and flexibility in electronic component installations.
Designed to meet rigorous industry standards, the product is RoHS compliant and holds certifications from UL (E60677) and CSA (File no 007189A). It incorporates a rising clamp design suitable for side entry terminals, allowing easier wiring and longer lifecycle. These features make it highly applicable in industrial automation systems, electronics manufacturing, HVAC equipment connections, and power distribution assemblies.
With reliable performance and a secure connection method, it supports maintenance friendly applications in manufacturing and control panels, where dependable electrical interfaces are critical.
Features a robust green polyamide housing for durability. Accommodates wire sizes ranging from 30 AWG to 12 AWG. Rated for a maximum current of 15 amperes and voltage of 300V AC. Right angle orientation with screw connection method ensures secure wiring.
Compact dimensions of 18.4 mm depth, 15.5 mm width, and 10.16 mm length. Side stackable design facilitates flexible PCB mounting layouts. Complies with RoHS, UL E60677, and CSA 007189A standards. Suitable for applications in industrial automation, electronic assemblies, and control panel wiring.
Manufactured in India maintaining high-quality standards.
For those seeking high-quality Pluggable Terminal Blocks with proven industrial reliability, TE Connectivity's 796634-4 model represents a prime choice. Explore comprehensive ranges and technical solutions at EnvMart for advanced electrical components and connectivity products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum voltage of 300V AC and a maximum current of 15 amperes.
This terminal block can accommodate wire sizes ranging from 30 AWG to 12 AWG.
The dimensions are 10.16 mm in length, 15.5 mm in width, and 18.4 mm in depth.
The housing is made of green polyamide, which provides durability and chemical resistance.
It uses a screw connection method for secure wiring.
Yes, it complies with RoHS, UL E60677, and CSA 007189A standards.
The terminal block features a right angle orientation.
This model has 4 contacts.
The pitch size is 5.08 mm.
Yes, it features a side stackable design that facilitates flexible PCB mounting layouts.
It is manufactured in India.
It is suitable for applications in industrial automation, electronic assemblies, and control panel wiring.
