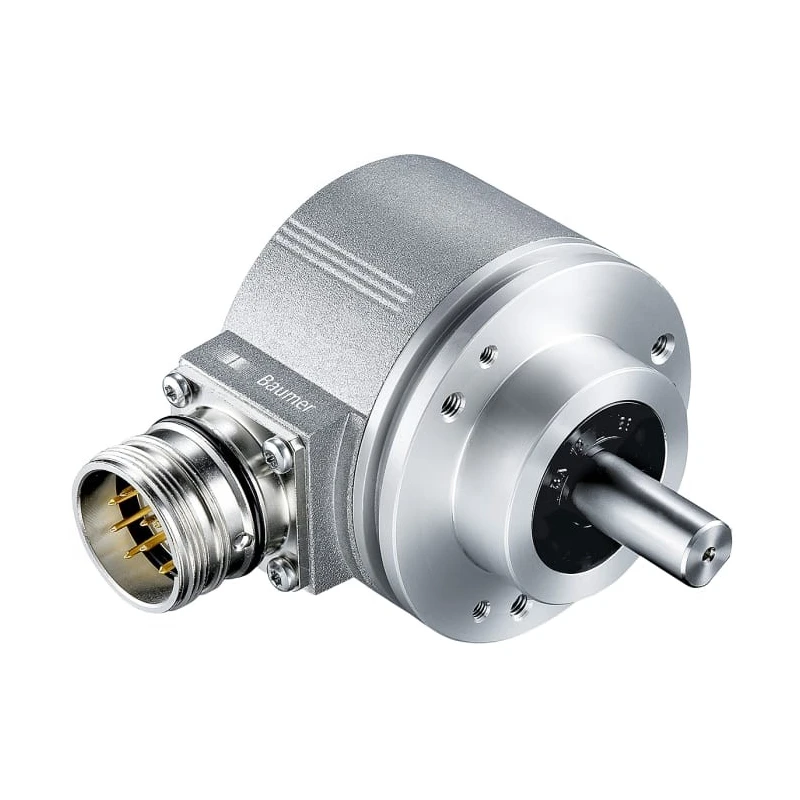

Baumer EIL580 Series Optical Incremental Encoder 30V dc 1000 ppr HTL Push Pull Signal Solid Shaft 10 mm Shaft EIL580
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Baumer |
| Model | EIL580 |
| IP Rating | IP65 |
| Mount Type | Clamping Flange Mount |
| Series | EIL580 |
| Overall Width | 58mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 10mm |
| Overall height | 63mm |
| Switching Frequency | 300kHz |
| Shaft Type | Solid |
| Terminal type | M12 Flange Connector |
| Interface Type | Push Pull |
| Pulses per Revolution | 1000ppr |
| Standards/Approvals | UL |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 48mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | HTL/Push Pull |
Key Features
- Features optical encoder technology for high accuracy.
- Outputs HTL/Push Pull signal for reliable interfacing.
- Designed with a solid 10 mm diameter shaft for robust mechanical connection.
- Equipped with M12 flange connector and clamping flange mount.
- Operates within a temperature range from -40°C to 85°C.
- IP65 rated enclosure offers protection against dust and water jets.
- Has a maximum supply voltage of 30V dc for flexible power options.
- Supports switching frequency up to 300 kHz for fast signal processing.
Product Description
The Baumer EIL580 Series Optical Incremental Encoder EIL580 is designed for high precision motion control applications, featuring a robust solid shaft of 10 mm diameter and optical sensing technology.
Operating at a maximum voltage of 30V dc, this encoder provides 1000 pulses per revolution (ppr) with a maximum rotational speed of 12000 rpm, supporting HTL/Push Pull output signals for reliable and fast signal transmission in industrial environments.
The device is housed in a sturdy die-cast aluminium enclosure with a stainless steel solid shaft, ensuring durability and resistance to mechanical stresses such as shock and vibration. It also has an IP65 rating, making it suitable for harsh environments with dust and water exposure.
The encoder supports a wide operating temperature range from -40°C to 85°C and features a switching frequency of up to 300 kHz, making it ideal for demanding automation and control applications.
It is equipped with an M12 flange connector and mounted via a clamping flange mount, facilitating easy installation and secure connectivity. The overall compact dimensions (58 mm width, 63 mm height, 48 mm depth) allow integration into various industrial machinery and equipment.
Features optical encoder technology for high accuracy. Outputs HTL/Push Pull signal for reliable interfacing. Designed with a solid 10 mm diameter shaft for robust mechanical connection. Equipped with M12 flange connector and clamping flange mount.
Operates within a temperature range from -40°C to 85°C. IP65 rated enclosure offers protection against dust and water jets. Has a maximum supply voltage of 30V dc for flexible power options. Supports switching frequency up to 300 kHz for fast signal processing.
Constructed with stainless steel solid shaft and die-cast aluminium housing for durability. Compact dimensions: 58 mm width, 63 mm height, and 48 mm depth.
This Baumer EIL580 encoder is ideal for industrial automation, motion control, manufacturing equipment, robotics, and precision measurement applications where reliable and precise rotary position feedback is essential.
Explore more industrial sensors and motion control devices at EnvMart to suit your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the Baumer EIL580 encoder is 30V dc.
This encoder outputs an HTL/Push Pull signal, ensuring reliable interfacing in industrial applications.
The encoder provides 1000 pulses per revolution (ppr).
It operates within a temperature range from -40°C to 85°C.
The maximum rotational speed for the Baumer EIL580 encoder is 12000 rpm.
It is equipped with an M12 flange connector for secure electrical connections.
The overall dimensions are 58 mm in width, 63 mm in height, and 48 mm in depth.
The Baumer EIL580 encoder has an IP65 rating, providing protection against dust and water jets.
This model utilizes a clamping flange mount for installation.
It features a stainless steel solid shaft and a die-cast aluminium housing for durability.
The encoder supports a switching frequency of up to 300 kHz for fast signal processing.
This encoder complies with UL standards, ensuring reliability in its performance.
