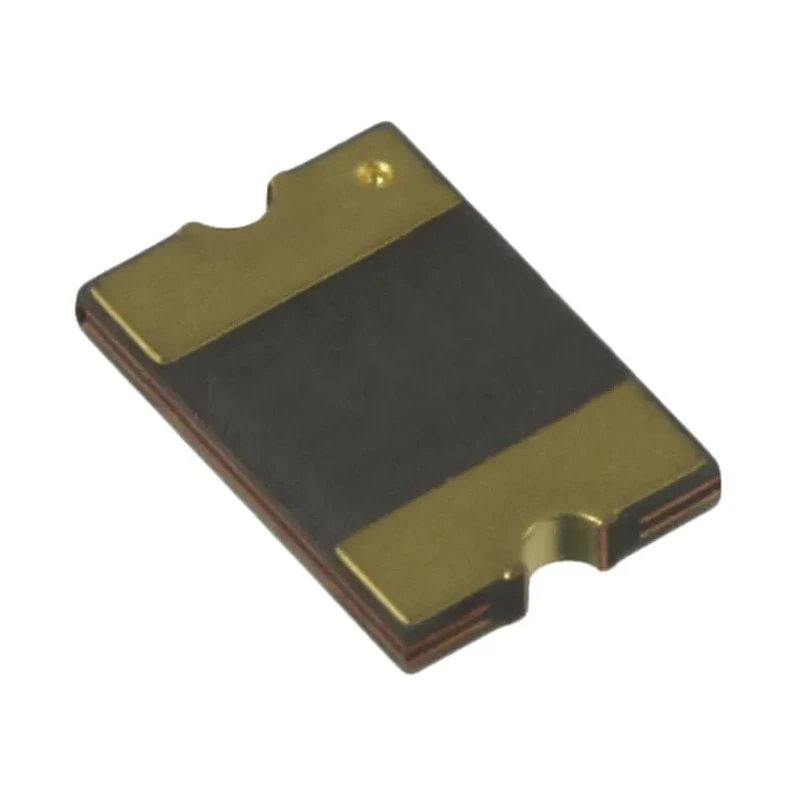

Bourns 1.1 A Resettable Fuse 24V, 0.5s Trip Time, 4.83mm Length, 3.41mm Width, 1.6mm Height MF-MSMF110/24X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V |
| Brand | Bourns |
| Height | 1.6mm |
| Length | 4.83mm |
| Model | MF-MSMF110/24X-2 |
| Width | 3.41mm |
| Current Rating | 20A |
| Series | MF-MSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1812 |
| Trip Current | 2.2A |
| Power Dissipation | 0.8W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | UL, RoHS |
| Time to Trip | 0.5s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.06Ω |
| Maximum Resistance | 180mΩ |
Key Features
- Maintains electrical circuit protection with automatic reset capability.
- Compact dimensions of 4.83mm length, 3.41mm width, and 1.6mm height suitable for SMT assembly.
- Terminal material is electroless nickel immersion gold plated for reliable connectivity.
- Operates effectively between -40°C to 85°C temperature range.
- Equivalent to AEC-Q200 Rev-C qualified for automotive passive components.
- Compliant with UL and RoHS standards ensuring safety and environmental friendliness.
- Supports currents up to 20A and trips at 2.2A as a trip current threshold.
- Low power dissipation of 0.8W enhances energy efficiency.
Product Description
Bourns MF-MSMF110/24X-2 is a resettable fuse designed for the protection of electrical and electronic circuits against excessive current. Rated at 1.1A hold current and 24V, this surface mount device switches rapidly from a low resistance state to a high resistance state upon detecting overload or short circuit conditions, automatically resetting when power is removed.
The fuse package conforms to the 1812 size with precise dimensions of 4.83mm length, 3.41mm width, and 1.6mm height, making it ideal for automated surface mount assembly processes. The terminal is made from electroless nickel immersion gold plating to ensure excellent conductivity and corrosion resistance.
It operates between minimum and maximum temperatures of -40°C and 85°C respectively and features a trip time of 0.5 seconds, with a trip current rating of 2.2A and maximum current rating of 20A. The device dissipates power efficiently at 0.8W during operation and meets the rigorous standards of UL and RoHS.
This device meets AEC-Q200 Rev-C stress test qualification for passive components used in automotive applications, guaranteeing durability and performance under harsh conditions. The fuse supports numerous applications such as security systems, power supplies, transformers, automotive electronics, medical equipment, instrumentation, control systems, computing peripherals, and telecommunications.
Automatic resettable fuse with maintenance-free operation for thousands of cycles. Small footprint suitable for high-density electronic assemblies. Compliant with lead (Pb) and lead-free solder reflow profiles. Conforms to industry standards including UL and RoHS.
Ideal for automotive and industrial electronics use cases.
The product is presented in a reel package type suitable for automated pick-and-place manufacturing lines. It is manufactured in China and distributed for industrial electronic protection solutions.
Explore more Resettable Fuses and electronic components at EnvMart to enhance your circuit protection designs with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 1.1A.
This model can operate at a maximum temperature of 85°C.
The trip current for this fuse is 2.2A.
The dimensions of this resettable fuse are 4.83mm in length, 3.41mm in width, and 1.6mm in height.
The power dissipation during operation is 0.8W.
The minimum operating temperature for this unit is -40°C.
The terminal material is electroless nickel immersion gold plated for reliable connectivity.
The trip time for this resettable fuse is 0.5 seconds.
This fuse is compliant with UL and RoHS standards, ensuring safety and environmental friendliness.
The maximum current rating for this model is 20A.
The fuse is presented in a reel package type suitable for automated pick-and-place manufacturing lines.
This resettable fuse is suitable for applications such as security systems, power supplies, automotive electronics, and medical equipment.
