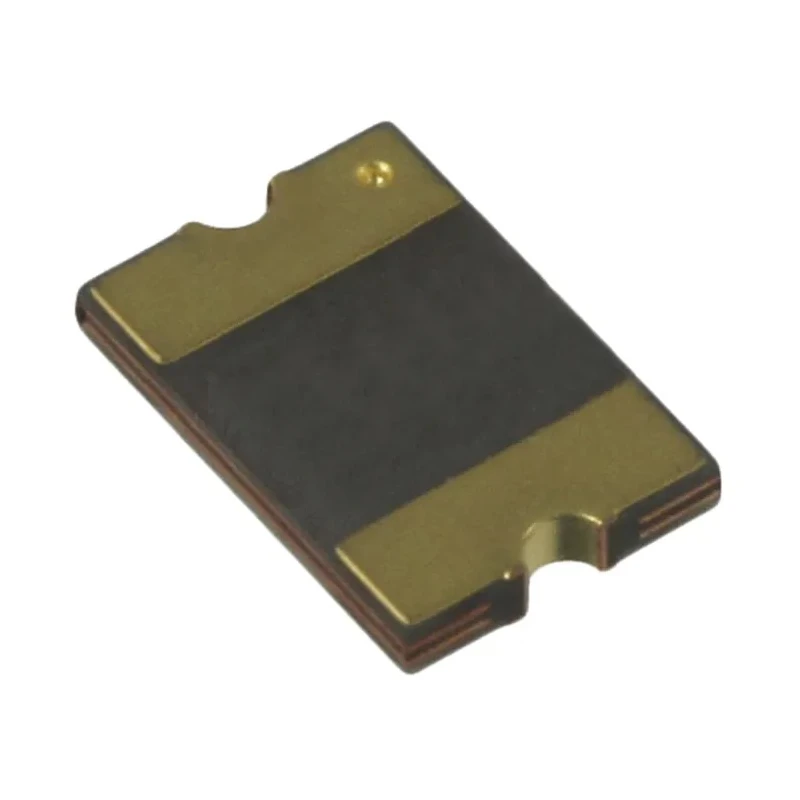

Bourns Resettable Fuse 24V 1.1A Hold Current 20A Current Rating MF-MSMF110/24X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V |
| Brand | Bourns |
| Height | 1.6mm |
| Length | 4.83mm |
| Model | MF-MSMF110/24X-2 |
| Width | 3.41mm |
| Current Rating | 20A |
| Series | MF-MSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1812 |
| Trip Current | 2.2A |
| Power Dissipation | 0.8W |
| Terminal Material | Electroless Nickel Immersion Gold Plated |
| Standards/Approvals | UL, RoHS |
| Time to Trip | 0.5s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.06Ω |
| Maximum Resistance | 180mΩ |
Key Features
- This resettable fuse switches from low to high resistance under overload conditions for circuit protection.
- Automatic reset capability allows for maintenance-free operation over thousands of cycles.
- Compact 1812 surface mount package suitable for automated assembly processes.
- Electroless nickel immersion gold plated terminals ensure reliable electrical contact.
- Wide operating temperature range from -40°C to 85°C enables use in diverse environments.
- Power dissipation rating of 0.8 watts supports handling of transient currents.
- Compliant with UL and RoHS standards for safety and environmental regulation.
- Common applications include security systems, power supplies, automotive, medical equipment, and telecommunications.
Product Description
Bourns MF-MSMF110/24X-2 resettable fuse is a reliable surface mount device designed for overcurrent protection in electrical and electronic circuits operating at 24 volts. It features a hold current of 1.1A and a current rating of 20A, with rapid trip response at 0.5 seconds to protect sensitive components from damage.
The compact 1812 reel package has electroless nickel immersion gold plated terminals to provide excellent conductivity and corrosion resistance, facilitating automated PCB assembly. This resettable fuse operates over a temperature range from -40°C to 85°C, making it suitable for automotive, medical, industrial, and consumer electronics applications.
It complies with UL and RoHS standards ensuring safety and environmental compliance. The fuse can withstand thousands of automatic reset cycles without replacement, reducing maintenance and downtime. Its low resistance state switches rapidly to a high resistance state under fault conditions, automatically resetting once the power is removed and normal conditions resume.
Typical use cases include protection of power supplies, transformers, security systems, instrumentation and control, computers, audio visual equipment, and telecommunications devices. The MF-MSMF series conforms to AEC-Q200 Rev-C qualification for automotive passive components, ensuring reliability in demanding environments.
This resettable fuse switches from low to high resistance under overload conditions for circuit protection. Automatic reset capability allows for maintenance-free operation over thousands of cycles. Compact 1812 surface mount package suitable for automated assembly processes.
Electroless nickel immersion gold plated terminals ensure reliable electrical contact. Wide operating temperature range from -40°C to 85°C enables use in diverse environments. Power dissipation rating of 0.8 watts supports handling of transient currents.
Compliant with UL and RoHS standards for safety and environmental regulation. Common applications include security systems, power supplies, automotive, medical equipment, and telecommunications. This product is part of the Bourns MF-MSMF series and is supplied on a reel packaging type to facilitate efficient insertion into machinery for production.
Explore more Resettable Fuses and circuit protection solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 1.1A.
This model has a maximum current rating of 20A.
The operating temperature range for this resettable fuse is from -40°C to 85°C.
It comes in a compact 1812 surface mount package, supplied on a reel.
The trip time for this fuse is 0.5 seconds under overload conditions.
The dimensions of this fuse are 4.83mm in length, 3.41mm in width, and 1.6mm in height.
The power dissipation rating is 0.8 watts, which supports handling of transient currents.
The terminals are made from electroless nickel immersion gold plated material, ensuring reliable electrical contact.
Yes, it is compliant with UL and RoHS standards for safety and environmental regulation.
Common applications include security systems, power supplies, automotive, medical equipment, and telecommunications.
The minimum resistance is 0.06Ω and the maximum resistance is 180mΩ.
The trip current for this model is 2.2A.
