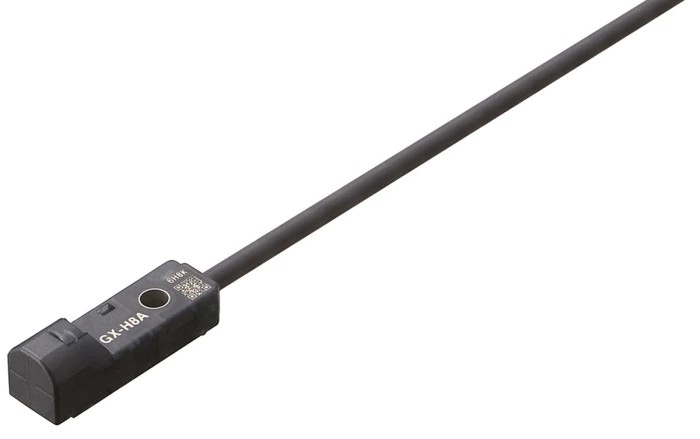

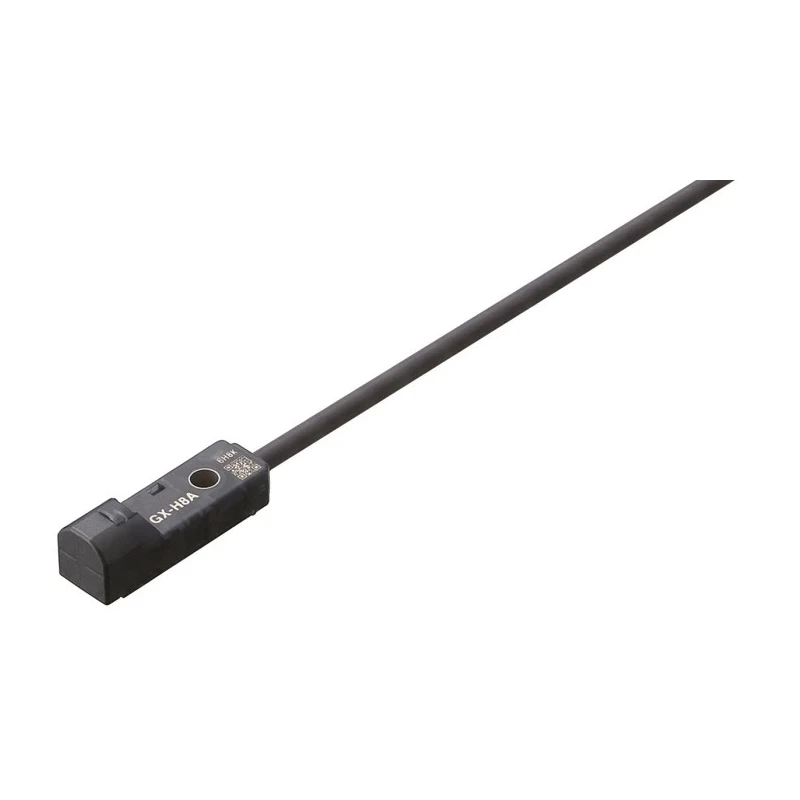

Panasonic Block Inductive Proximity Sensor PNP 24 V DC 15mA 2.5 mm Detection GX-H8A-P

Panasonic GX-H8A-P block inductive proximity sensor features a robust polyester and polybutylene terephthalate housing designed for industrial environments. This non-flush mount, block-style sensor has an operating voltage of 24 V DC, providing stable performance with a maximum switching current of 15 mA and a switching frequency up to 500 Hz. Its unshielded design enables reliable detection of metal objects within a 2.5 mm sensing range, making it suitable for precise positioning, camshaft detection, and movement sensing in automation processes.

The sensor is rated IP68, ensuring excellent resistance against dust and water ingress, which helps prevent sensor damage in harsh industrial settings. It functions accurately over a broad temperature range from -25°C to 70°C, making it versatile for various manufacturing and control applications. With dimensions of 26 mm in length, 8 mm in width, and 9.1 mm in depth, this compact sensor occupies minimal space while delivering effective sensing capabilities.

Panasonic's GX series Inductive Proximity Sensors incorporate enhanced visibility operation indicators and industry-leading sensing ranges to meet diverse automation requirements. Its PNP output type simplifies integration with control systems. The compliant RoHS certification underscores the product's adherence to environmental and safety regulations.

Block style sensor housing made of durable polyester and polybutylene terephthalate. Unshielded design detects metal objects up to 2.5 mm distance. IP68 rated for waterproof and dustproof protection. Non-flush mounting and cable terminal connection.

Operational temperature range from -25°C to 70°C. Maximum switching frequency of 500 Hz for responsive operation. PNP output with 15 mA switching current. Compact dimensions: 26 mm length × 8 mm width × 9.1 mm depth. Ideal for industrial automation, position detection, and moving object sensing.

RoHS compliant for environmental safety.

These sensors are widely applied in industries such as manufacturing automation, process control, and machinery monitoring for detecting metal targets or components. Panasonic’s GX-H8A-P ensures reliable operation in demanding environments, boosting productivity and equipment safety. Explore more industrial sensor solutions on EnvMart to enhance your automation projects.
