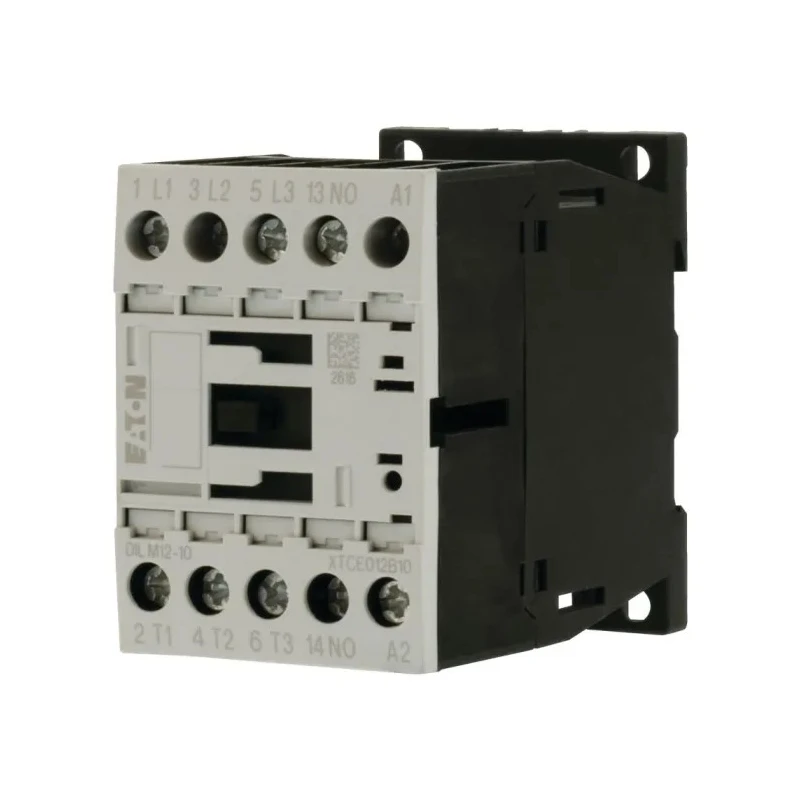

Eaton Motor Control Contactor 3-Pole 12A 230V AC Coil, 5.5 kW Power Rating DILM12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Function | Motor Control |
| Length | 68mm |
| Model | DILM12 |
| Depth | 117mm |
| Width | 45mm |
| Mount Type | Table |
| Series | DILM12 |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| Eaton DILM Contactor, 220 V ac, 230 V ac Coil, 3-Pole, 6.5 kW, 1N/OBrand | Eaton |
| Cooper Bussmann 2.25A T Cartridge Fuse, 14 x 51mmBrand | Cooper Bussmann |
Key Features
- The contactor supports a contact current of 12 amperes.
- Power rating of 5.5 kW at 230V AC coil voltage ensures efficient operation.
- Three normally open (3 NO) contacts offer effective switching capability.
- Constructed with screw clamp terminal type for secure electrical connections.
- Operates within a temperature range from -25°C to 60°C suitable for various environments.
- Mount type is table, facilitating easy installation in control panels.
- Includes 1 auxiliary contact configured as 1 NC for additional control options.
- Complies with standards UL, CSA, and IEC for quality and safety assurance.
Product Description
The Eaton DILM12 contactor is a robust motor control device featuring a 230V AC coil and a 3-pole design, enabling efficient switching of electrical motors. With a contact current rated at 12A and power capacity of 5.5 kW, it is engineered for superior performance in various industrial and automation control applications.
The device includes three normally open contacts (3 NO) and one auxiliary contact configured as normally closed (1 NC), offering versatile switching arrangements. Its screw clamp terminal ensures secure and reliable connections for operational safety.
Designed for ambient temperatures ranging from -25°C to 60°C, the DILM12 contactor is suitable for harsh environments and supports motor control requirements with adherence to international standards UL, CSA, and IEC, ensuring quality and compliance.
The contactor’s compact dimensions of 117mm depth, 68mm length, and 45mm width allow for easy integration into control panels or switchgear assemblies. Its table mount type facilitates straightforward installation within electrical automation hardware.
This contactor is ideal for use across industrial automation, electrical manufacturing systems, HVAC equipment control, and other commercial motor management applications, making it a reliable choice for electrical control and automation professionals.
The Contactor supports a contact current of 12 amperes. Power rating of 5.5 kW at 230V AC coil voltage ensures efficient operation. Three normally open (3 NO) contacts offer effective switching capability. Constructed with screw clamp terminal type for secure electrical connections.
Operates within a temperature range from -25°C to 60°C suitable for various environments. Mount type is table, facilitating easy installation in control panels. Includes 1 auxiliary contact configured as 1 NC for additional control options.
Complies with standards UL, CSA, and IEC for quality and safety assurance. Dimensions: 117mm depth, 68mm length, and 45mm width for compactness. Ideal for industrial, manufacturing, and automation control gear applications.
Explore the Eaton range of automation and control gear for advanced and reliable industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILM12 contactor has a power rating of 5.5 kW at a coil voltage of 230V AC.
This model supports a maximum contact current of 12 amperes.
The DILM12 features three normally open contacts (3 NO) and one auxiliary contact configured as normally closed (1 NC).
The dimensions of the Eaton DILM12 contactor are 117mm in depth, 68mm in length, and 45mm in width.
The operating temperature range for the DILM12 contactor is from -25°C to 60°C.
It is constructed with a screw clamp terminal type for secure electrical connections.
The mount type for this contactor is table, allowing for easy installation in control panels.
The DILM12 complies with UL, CSA, and IEC standards for quality and safety assurance.
The coil voltage for the Eaton DILM12 contactor is 230V AC.
The DILM12 includes one auxiliary contact configured as normally closed (1 NC).
This contactor is suitable for applications in industrial automation, electrical manufacturing systems, and HVAC equipment control.
The Eaton DILM12 contactor is manufactured in India.
