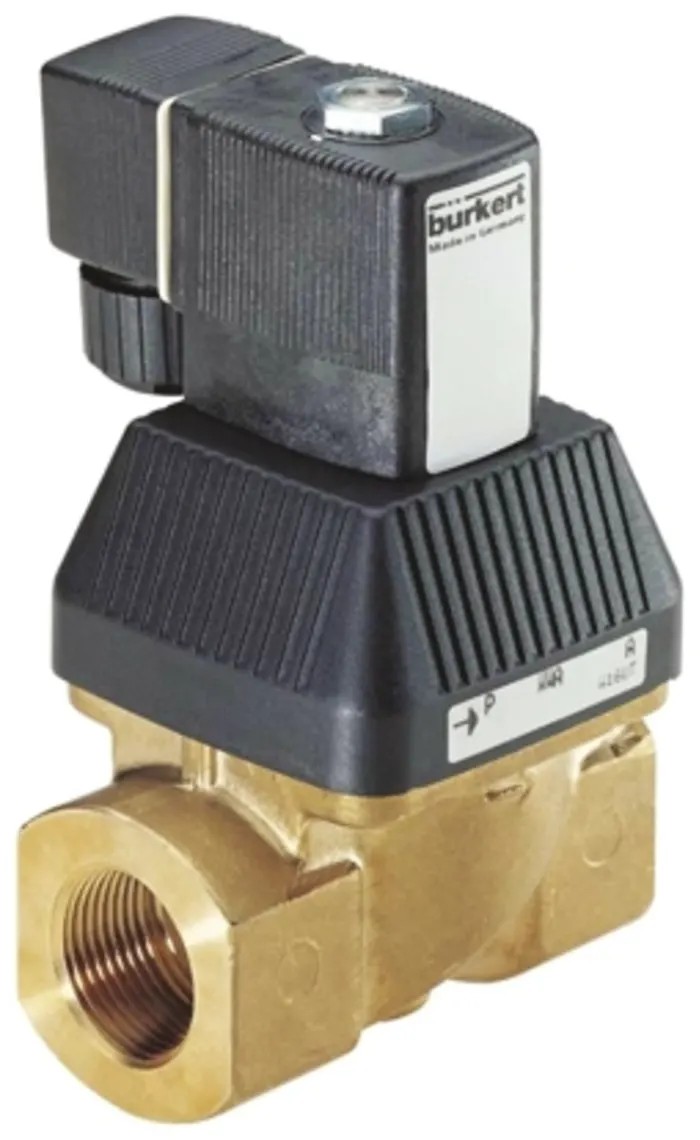

Burkert 2 Port Normally Closed Brass Solenoid Valve 24V DC, 13mm Orifice, 10 bar, IP65 221618
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 221618 |
| Series | 221 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 13mm |
| Supply Voltage | 24V dc |
| Hazardous Area Certification | explosion protection Ex-i (intrinsically safe) |
| Standards/Approvals | IP65 |
| Default Valve Position | NC |
| Flow Factor Kv | 3.6m³/h |
Key Features
- This solenoid valve operates with a 24V DC supply voltage.
- It features a compact, brass construction suitable for fluid and inert gas applications.
- Maximum operating pressure rating is 10 bar.
- The valve has an orifice diameter of 13 mm allowing a flow factor Kv of 3.6 m³/h.
- IP65 rated sealed coil ensures protection against dust and water ingress.
- The valve's operating temperature ranges from -10°C to 80°C.
- It includes a servo assist for smooth and quiet operation without water hammer.
- Designed for use with clean neutral media in water treatment, refrigeration, heating systems, and compressed air applications.
Product Description
Burkert 221618 solenoid valve is a high-quality, compact 2 port, normally closed valve engineered with a brass body and a 13 mm orifice diameter. Operating at 24V DC, this valve provides precise fluid and gas control for industrial applications. The valve supports a maximum operating pressure of 10 bar and is suitable for temperatures ranging from -10°C to 80°C.
Its sealed coil is IP65 rated, offering robust environmental protection while ensuring reliable operation in demanding conditions. The valve employs a coupled spring diaphragm system with servo assist, enhancing smooth operation and minimizing water hammer effects. The design features soft mechanical coupling between the main piston and pilot armature for quiet and efficient performance.
Engineered specifically for clean, neutral media such as water, inert gases, and liquids, it is applicable in water treatment, heating, refrigeration, compressed air and vacuum systems. This valve is compliant with explosion protection Ex-i (intrinsically safe) standards, making it suitable for usage in hazardous area environments.
The valve design includes standard port labeling and is optimized for installation where space is limited. The flow-optimized housing and diaphragm geometry provide a flow factor Kv of 3.6 m³/h, allowing high flow rates with controlled pressure drop.
Operates at 24V DC supply voltage. Compact brass body construction for durability and corrosion resistance. Maximum pressure rating of 10 bar suitable for various industrial systems. Orifice diameter: 13 mm providing a flow factor Kv of 3.6 m³/h.
IP65 sealed coil ensuring protection against dust and water ingress. Supports operating temperatures from -10°C to 80°C. Servo assist mechanism for smooth, silent operation. Designed for clean neutral fluids and inert gases.
Certified explosion protection Ex-i for hazardous areas. Two-port normally closed valve configuration.
Originating from Germany, this Burkert solenoid valve is designed for reliability and precision in fluid power control across industrial, laboratory, HVAC, water treatment, and manufacturing applications. Browse EnvMart for related Burkert Solenoid Valves and industrial valve solutions to suit every specialized need.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
The orifice diameter of this solenoid valve is 13 mm.
This solenoid valve operates at a supply voltage of 24V DC.
The flow factor Kv for this valve is 3.6 m³/h.
The operating temperature range for this model is from -10°C to 80°C.
This valve is designed for clean neutral media, including water and inert gases.
This model is certified for explosion protection Ex-i (intrinsically safe).
The body material of this solenoid valve is brass.
This valve has two ports, and it is configured as normally closed (NC).
The sealed coil of this model has an IP65 rating, providing protection against dust and water ingress.
The valve includes a servo assist mechanism for smooth and quiet operation, minimizing water hammer effects.
This model originates from Germany.
