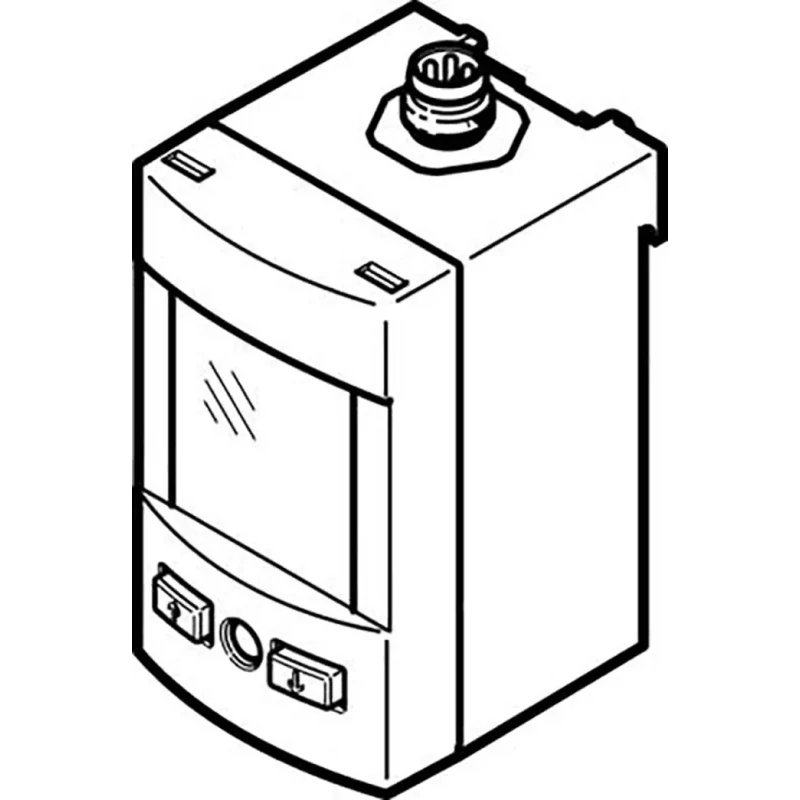

Festo Pressure Sensor, Positive Pressure, IP67, IP65 Rated, 30V dc, 0 bar, 50°C Operating SPAU-V1R-H-Q4D-L-PNLK-PNVBA-M8D

Festo SPAU-V1R-H-Q4D-L-PNLK-PNVBA-M8D pressure sensor is engineered for monitoring positive pressure in pneumatic and fluid power applications. This sensor is designed specifically to work with compressed air and non-corrosive gases, providing accurate and reliable measurements.

It operates at a voltage of 30V dc and measures pressures between -1 bar and 0 bar, perfect for network and regulator monitoring in industrial pneumatic systems. The sensor features a switchable element function with normally open or closed contacts, allowing versatile electrical output configurations such as NPN and PNP types.

This sensor includes a push-in connector with a female port and bracket mount type for easy integration into existing equipment. Its robust design is IP67 and IP65 rated, offering excellent protection against dust and water ingress, suitable for harsh industrial environments.

The operating temperature range spans from 0°C to 50°C, making it adaptable to typical factory conditions. The illuminated LCD display ensures critical data is visible at all times, while the compact 15mm width, 43mm height, and 30mm depth dimensions allow space-saving installation.

Festo SPAU sensors come with RoHS compliance and UL approval, ensuring adherence to environmental and safety standards. Typical applications include air-pressure testing, object detection via back pressure, and pneumatic network monitoring.

This product is manufactured in Bulgaria and represents a reliable solution for pneumatic pressure sensing in industrial, manufacturing, and laboratory instrumentation sectors. Designed for air and non-corrosive gases as suitable media.

Operating voltage is 30V dc with bracket mount type for easy installation. Pressure range measured is from -1 bar minimum to 0 bar maximum. Switch output supports both NPN and PNP types. Equipped with an illuminated digital LCD display for clear readings.

Operating temperature range is from 0°C to 50°C, suitable for industrial environments. Female port gender and plug socket electrical connection with M8x1 4-pin round connector. Compact dimensions: 15mm width, 43mm height, 30mm depth.

RoHS compliant and comes with UL approval ensuring high standards. Explore more Pneumatic Pressure Sensors and related products at EnvMart to meet your industrial sensor requirements.
