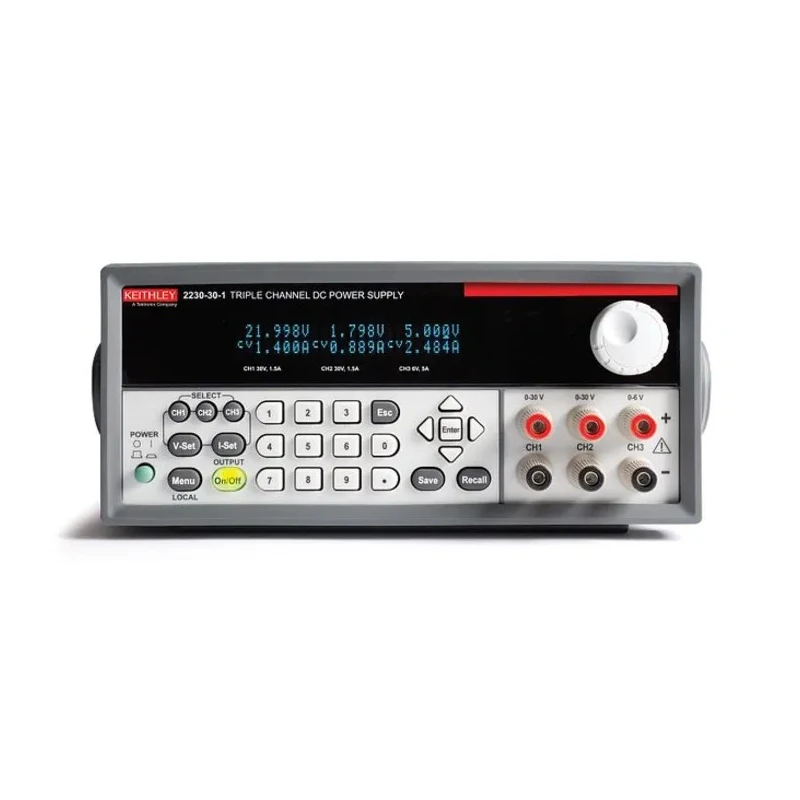

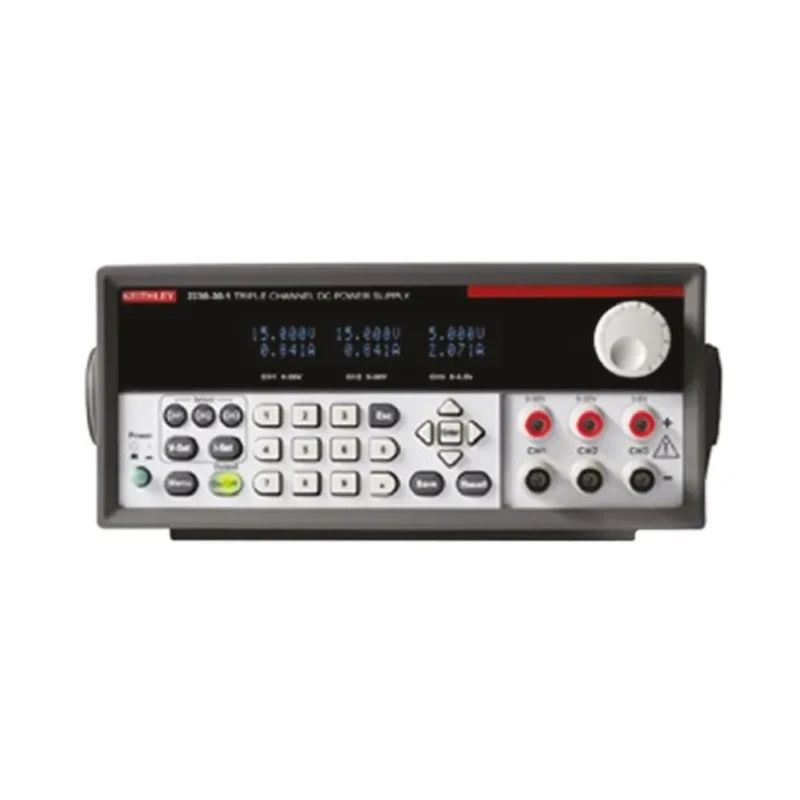

Keithley High Power 3-Output Digital Bench Power Supply 0 to 30 V, 450 VA, 5 A Max 2230G-30-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Keithley |
| Height | 91mm |
| Model | 2230G-30-1 |
| Depth | 361mm |
| Width | 217mm |
| Output type | Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Plug Type | IEC 320 |
| Number of outputs | 3 |
| Maximum Output Current | 5A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 30V |
| Maximum Supply Voltage | 240V ac |
| Digital/Analogue | Digital |
| Supported Number of Displays | 1 |
| Minimum Output Voltage | 0V ac |
| Minimum Output Current | 0A |
Key Features
- Features three isolated output channels for flexible power configurations.
- Maximum output voltage of 30 V with a maximum current of 5 A.
- Linear power supply design ensures low ripple and noise for accurate testing.
- Includes USB interface for remote control; GPIB interface available on 'G' version.
- Enables series or parallel connection of two 30 V channels for extended voltage or current.
- Compact design with dimensions 361 mm depth, 217 mm width, and 91 mm height.
- Ideal for R&D, student labs, manufacturing test, and troubleshooting applications.
- Supports use in automotive, embedded design, battery testing, power measurements, and education.
Product Description
Keithley 2230G-30-1 digital bench power supply is a high-performance, three-output device designed for precise characterization and testing in industrial, laboratory, and manufacturing environments. This model offers two 30 V/1.5 A channels and one 6 V/5 A channel to accommodate testing of digital circuits and multiple devices simultaneously.
Equipped with a linear power supply architecture, the 2230G-30-1 delivers low ripple and noise outputs, essential for accurate test results. All channels are isolated and include remote sensing to ensure voltage accuracy at the device under test. The two 30 V channels can be connected in series or parallel, providing operational versatility for different test setups.
The unit supports a USB interface for remote control, with an optional GPIB interface on the 'G' variant, making it suitable for automated test systems and manual configurations. The power supply is RoHS compliant and designed to operate safely between 0°C and 40°C ambient temperature. Mechanical dimensions are 361 mm depth, 217 mm width, and 91 mm height, making it compact for bench use.
Three isolated independent outputs for enhanced flexibility. Wide output range from 0 V to 30 V with 450 VA total power capacity. High accuracy with 0.03% voltage programming and 0.1% current programming precision. Supports remote sensing on all channels to improve measurement accuracy.
Robust USB connectivity for integration with test automation software. Use cases include automotive testing, embedded design validation, battery testing, power measurement, education, and manufacturing troubleshooting. Set content includes the bench power supply device. This Keithley model provides a reliable and versatile power supply solution for test engineers and laboratory professionals.
Explore more industrial measuring and testing instruments in the Bench Power Supplies category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage is 30 V, and the maximum output current is 5 A.
This model features three isolated output channels, providing flexibility for various power configurations.
The dimensions are 361 mm in depth, 217 mm in width, and 91 mm in height.
It operates safely between 0°C and 40°C ambient temperature.
The total power capacity is 450 VA, allowing it to support various testing needs.
Yes, the two 30 V channels can be connected in series or parallel for extended voltage or current capabilities.
It has a voltage programming accuracy of 0.03%, ensuring precise output for testing.
Yes, it is RoHS compliant, indicating it meets specific environmental standards.
It is suitable for automotive testing, embedded design validation, battery testing, power measurement, education, and manufacturing troubleshooting.
It provides a digital output, which is essential for modern testing environments.
The minimum output voltage is 0 V, and the minimum output current is 0 A.
