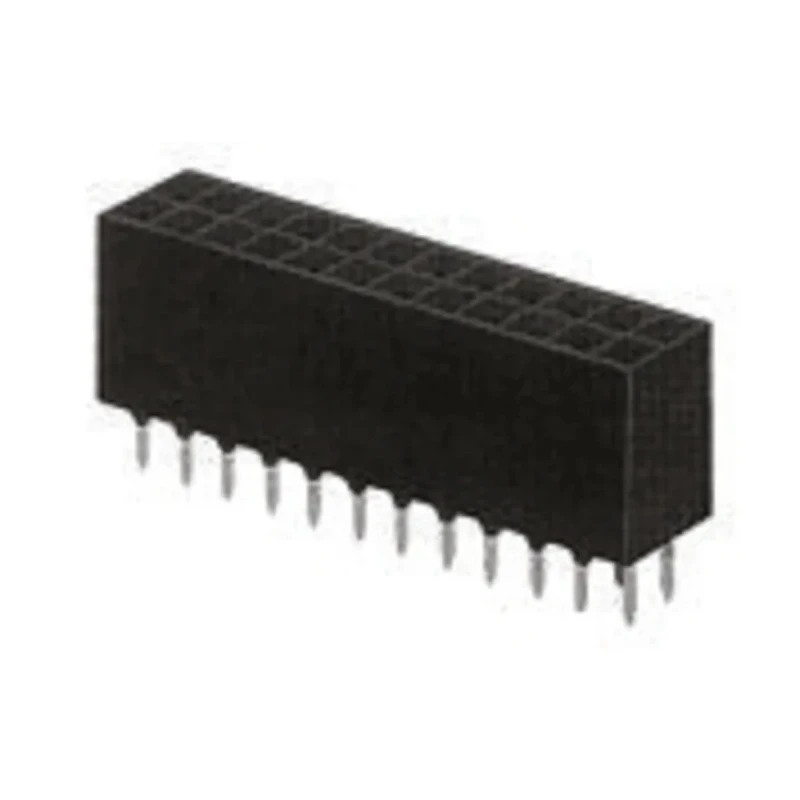

TE Connectivity AMPMODU MOD II Series Straight Through Hole PCB Socket 50-Contact 2 Row 2.54 mm Pitch Solder 7-534206-5
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a straight orientation and board-to-board connector system for effective connectivity.
- Houses contacts made of bronze with tin plating for durability.
- Supports a current rating of 12A and voltage rating of 750V.
- Constructed with high-temperature 94V-0 thermoplastic polyamide housing for enhanced safety.
- Operates within a temperature range of -65°C to 105°C.
- End stackable design with closed entries to prevent post stubbing.
- Suitable for automation, control, and industrial applications requiring compact and economical connectors.
- Two-row configuration ensures dense and reliable PCB interconnections.
Product Description
TE Connectivity 7-534206-5 AMPMODU MOD II Series Straight Through Hole PCB Socket is a highly reliable and economical board-to-board connector designed for industrial and automation applications. This 50-contact socket features a two-row configuration with a 2.54 mm pitch, offering robust connectivity for printed circuit boards.
The connector's housing is made of polyamide thermoplastic rated 94V-0, which provides high temperature resistance and mechanical stability. The closed entry housings help prevent damage during installation by avoiding post stubbing.
Contacts are crafted from bronze and plated with tin to ensure long-lasting electrical performance and corrosion resistance. Supporting a current rating of 12A and a voltage rating up to 750V, this PCB socket can be efficiently used in demanding environments.
This AMPMODU MOD II receptacle assembly is through-hole mounted and features a straight orientation, facilitating ease of installation and reliable mechanical support. Its operating temperature range from -65°C up to 105°C ensures performance across varied industrial conditions.
Applications include automation, manufacturing control systems, commercial electronics, and other industrial electrical assemblies where space-saving and dependable PCB connections are essential. Its end-stackable design expands system modularity without compromising connection integrity.
Features a straight orientation and board-to-board connector system for effective connectivity. Houses contacts made of bronze with tin plating for durability. Supports a current rating of 12A and voltage rating of 750V.
Constructed with high-temperature 94V-0 thermoplastic polyamide housing for enhanced safety. Operates within a temperature range of -65°C to 105°C. End stackable design with closed entries to prevent post stubbing. Suitable for automation, control, and industrial applications requiring compact and economical connectors.
Two-row configuration ensures dense and reliable PCB interconnections. Explore more from TE Connectivity in the Electronics & Electricals category at EnvMart for reliable industrial components and connectors.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A and a voltage rating of 750V.
It operates within a temperature range of -65°C to 105°C.
The housing is made of high-temperature polyamide thermoplastic rated 94V-0, and the contacts are crafted from bronze with tin plating.
This PCB socket features 50 contacts arranged in a two-row configuration.
It uses a solder termination type for secure connections.
The pitch size of the contacts is 2.54 mm.
Yes, it is suitable for automation, control, and industrial applications requiring compact and economical connectors.
This model is designed for through-hole mounting.
Yes, it has closed entry housings to prevent damage during installation by avoiding post stubbing.
It features a straight orientation for effective connectivity.
The country of origin for this PCB socket is China.
The contacts in this model are female.
