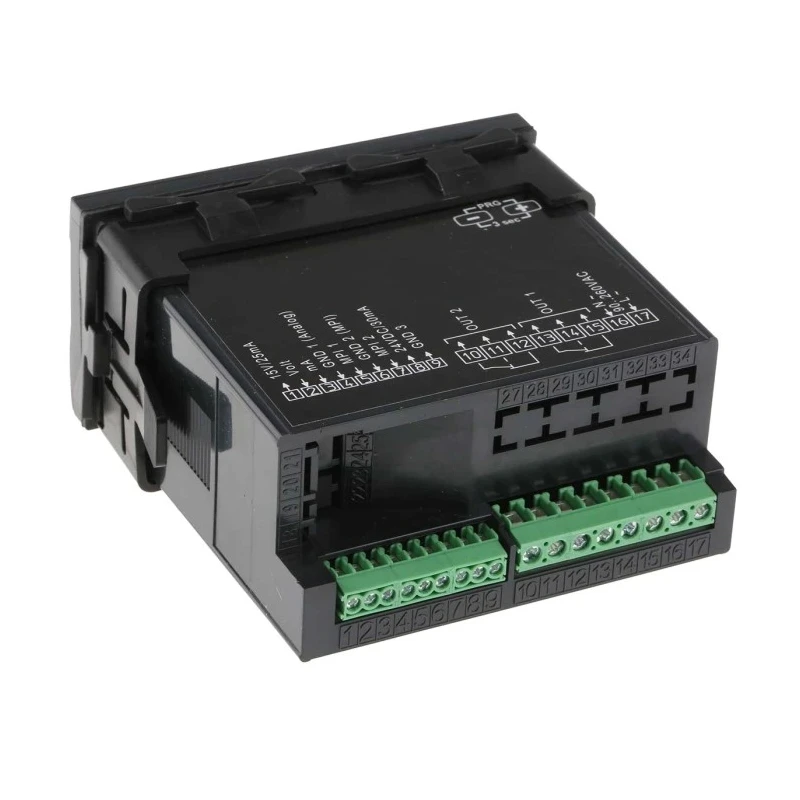

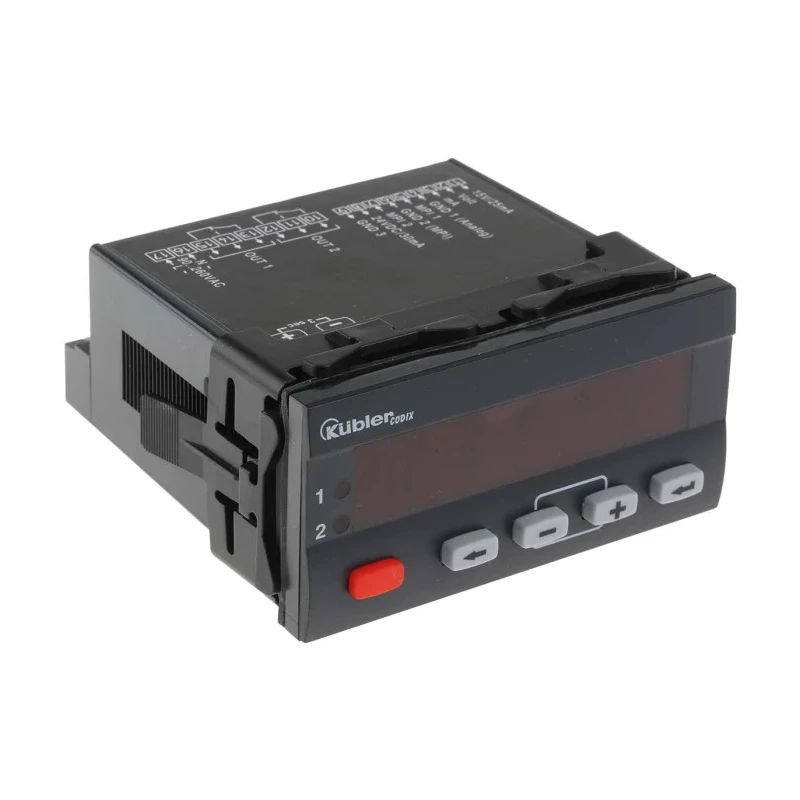

Kubler Digital Panel Multifunction Meter CODIX 6.565.010.000 for Voltage Current Measurement LED Display 45 mm x 92 mm

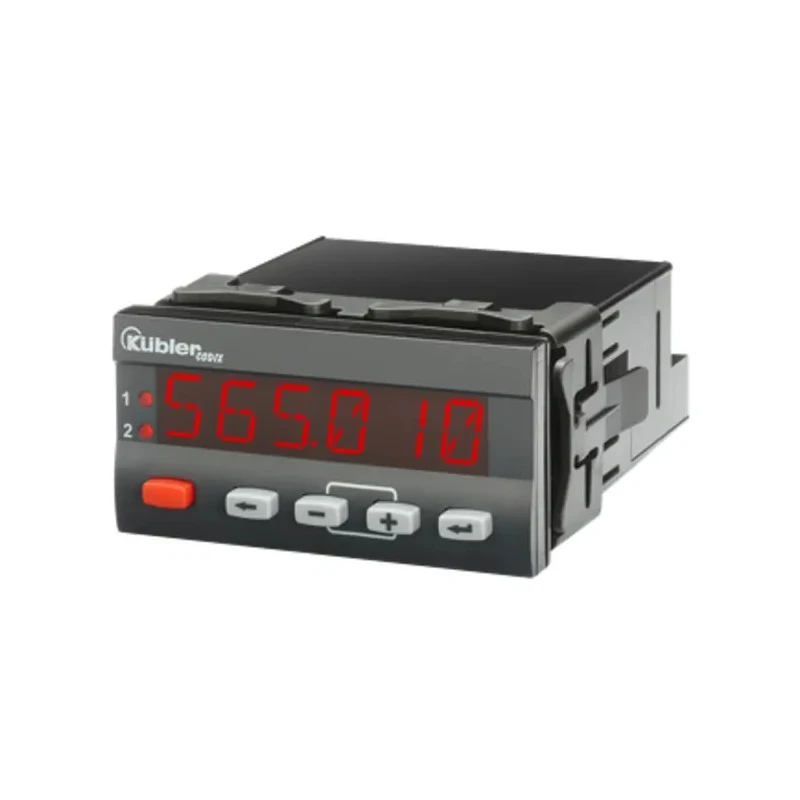

Kubler 6.565.010.000 is a high-performance Digital Panel Multifunction Meter designed to measure voltage and current with precision using LED display technology. Ideal for industrial automation systems, it offers a user-friendly interface with a bright 6-digit, 14-segment LED display, enabling clear data visualization even in challenging environments.

This Kubler CODIX 565 series device features compact panel mounting with dimensions of 45 mm in height, 92 mm in width, and a depth of 90.5 mm, making it a suitable fit for various control panels. It operates effectively within a temperature range of -20°C to 65°C, ensuring reliability in diverse environments.

The meter supports simple programming through four front keys and includes one front key programmable plus two additional inputs for custom functionality, enhancing the device's flexibility for specialized applications. With a sampling rate of 10 readings per second, the meter delivers swift and accurate measurement updates.

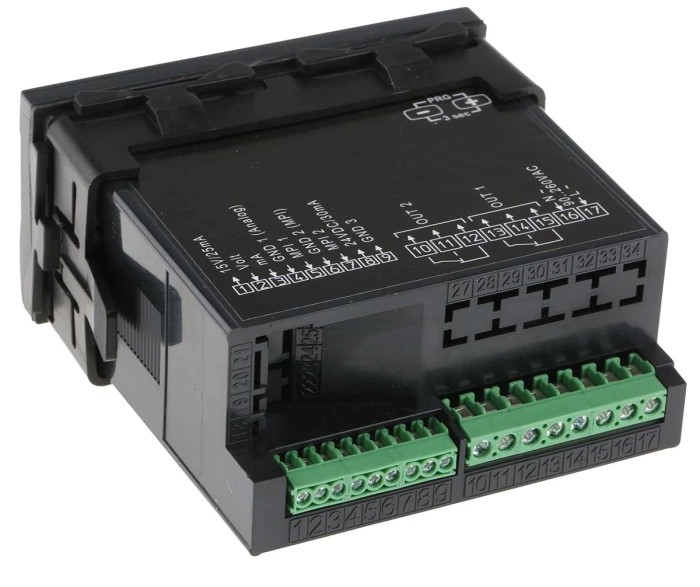

Electrical inputs and outputs are galvanically isolated to maintain signal integrity and operator safety. The device also incorporates minimum and maximum memory storage that can be reset individually, facilitating precise process monitoring. Two relay outputs with changeover contacts allow for limit value monitoring, complete with hysteresis and delay functions for current control.

Its digital filter smooths out fluctuations caused by unstable input signals, while a tare function further supports accurate measurements. Users can implement customer-specific characteristic curves through 12 control points, adding a layer of customization for complex industrial signals.

The product meets stringent environmental and safety standards, including RoHS compliance, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 certifications, signifying robust electrostatic discharge protection and eco-friendly design.

Kubler 6.565.010.000 is suitable for use in industrial automation, process control, electrical panels, manufacturing facilities, and other commercial applications requiring precise voltage and current measurement and monitoring.

Features a 6-digit, 14-segment LED display with digit height of 14 mm for enhanced readability. Compact panel cutout dimensions of 45 mm height by 92 mm width and a depth of 90.5 mm. Sampling rate of 10 readings per second provides fast and reliable measurements.

Programmable front key and two additional inputs for flexible application configuration. Galvanically isolated inputs and outputs ensure electrical safety and signal integrity. Includes minimum/maximum memory functions with individual reset capability.

Two relay outputs for limit monitoring with hysteresis and on/off delay, suitable for automated process control. Operating temperature range from -20°C to 65°C supports diverse industrial environments. Supports customer-specific linearization via 12 control points for precision measurement adjustment.

Complies with RoHS standards and certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge safety. Explore more industrial automation and process control instruments from Kubler on EnvMart to find reliable and precise devices tailored to your operational needs.
