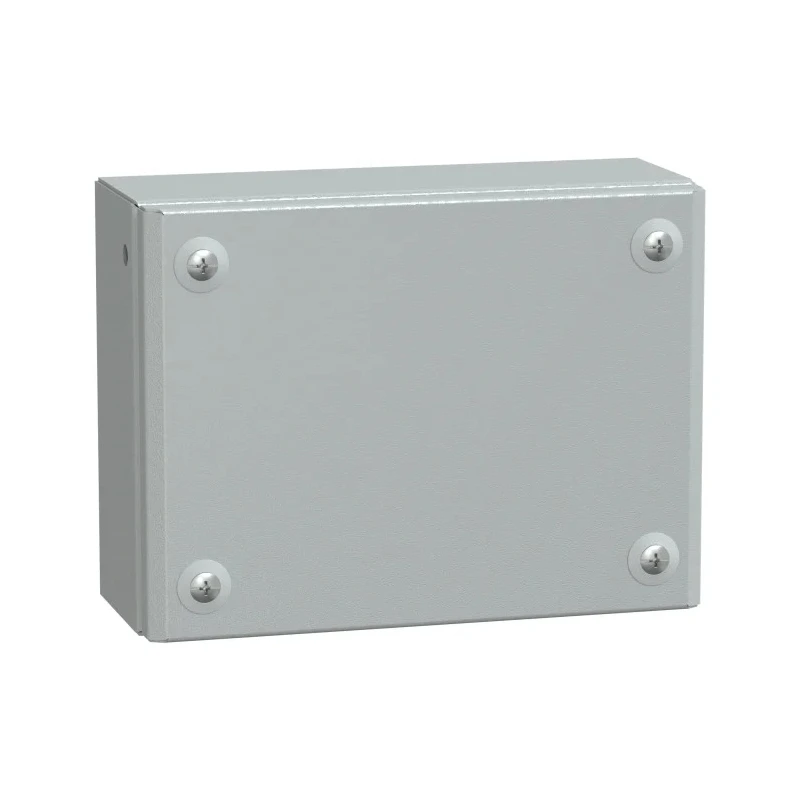

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 Grey 150 mm x 200 mm x 80 mm NSYSBM15208

Schneider Electric NSYSBM15208 PanelSeT SBM Series Steel Wall Box is a robust electrical enclosure designed to protect wiring and components against environmental hazards and mechanical impact. It features a durable steel body coated with an epoxy-polyester powder finish, ensuring long-term resistance to corrosion and wear for indoor and outdoor use.

With compact dimensions of 150 mm height, 200 mm width, and 80 mm depth, this wall box occupies minimal space, making it ideal for installation in areas with limited room such as underground parking systems and railway tunnels. The enclosure’s IP66 rating guarantees protection from dust ingress and powerful water jets, allowing use in industrial and commercial environments where wash-down cleaning is common.

The mechanical impact resistance rating of IK10 (20 joules) ensures the enclosure can withstand severe impacts without compromising the safety of the internal electrical components. The grey powder-coated steel door secures with captive screws and a screw lock, preventing unauthorized access and tampering.

Internal panel mounting capabilities provide flexible installation options. The wall box lacks a transparent door, chassis plate, gland plate, or mounting plate, focusing on a simple, rugged design tailored for demanding industrial environments.

This product complies with various global standards including IEC 62208, RoHS, REACH, UL listings, and is certified by DNV, LR, and BV, providing assurance on quality and safety.

Designed for sustainability with features supporting easy disassembly, the PanelSeT SBM wall box from Schneider Electric is an excellent choice for electrical enclosure needs in harsh operating conditions.

This Wall Box is made from high-quality steel with a grey epoxy-polyester powder finish for corrosion resistance. Compact external dimensions of 150 mm height, 200 mm width, and 80 mm depth save installation space. The IP66 ingress protection rating ensures resistance to dust and strong water jets, suitable for harsh environments.

Mechanical impact resistance up to IK10 protects internal components from impact damage. Features a screw-operated door lock and captive screws to prevent tampering. Suitable for applications in underground parking systems, railway tunnels, and public areas.

The box supports internal panel mounting and has no transparent door, chassis, mounting plate, or gland plate. Temperature operating range is wide, from -35°C to +80°C for use in extreme conditions. Compliance with international standards including IEC 62208, RoHS, REACH, UL, and approvals from DNV, LR, and BV.

Designed for disassembly to support sustainability and environmental considerations. Explore Schneider Electric enclosures and panel boxes to find the perfect fit for your industrial or commercial electrical needs at EnvMart.
