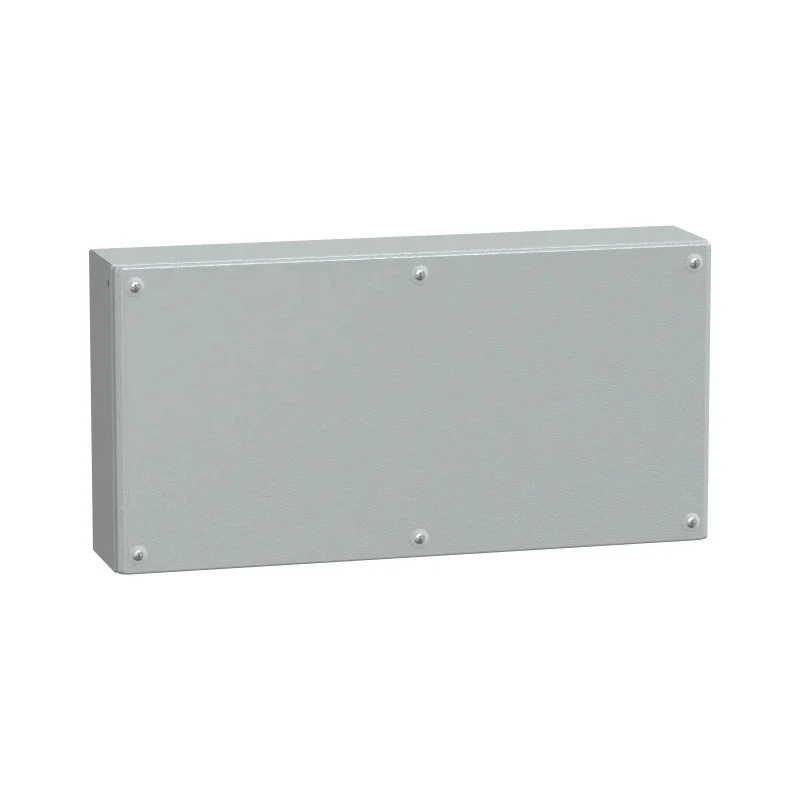

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 300mm x 600mm x 120mm NSYSBM306012

Schneider Electric NSYSBM306012 PanelSeT SBM Series Steel Wall Box is a high-quality industrial enclosure designed to protect sensitive electrical and electronic equipment in demanding environments. With dimensions of 300 mm height, 600 mm width, and 120 mm depth, this wall-mounted enclosure is fabricated from robust sheet steel and finished with a durable polyester powder coating in Grey (RAL 7035) to resist corrosion and mechanical stresses.

The enclosure features a plain door secured by half-turn captive screws with a screw lock type providing secure closure and easy access. Its IP66 rating guarantees full protection against dust ingress and powerful water jets, making it ideal for industrial installations exposed to harsh weather or contamination.

Designed according to IEC 62208 and meeting IK10 impact resistance standards, this Wall Box is capable of withstanding mechanical impact of up to 20 joules, equivalent to a 5 kg object dropped from 40 cm. It includes a polyurethane door sealing gasket ensuring tight sealing and protection of internal components.

The enclosure's body is a single-piece folded and welded construction with folded gutters in front. It allows for rear installation of mounting plates or DIN rails through drilled profiles, facilitating flexible installation of equipment. An M6 x 16 welded earth stud ensures safe equipotential bonding of the enclosure body and door.

Typical applications include industrial machinery housing, building automation systems, underground parking facilities, road and railway tunnels, and similar industrial or commercial environments requiring reliable protection for electrical installations.

Constructed from steel with polyester coating for enhanced durability. IP66 rated protection against dust and water ingress. IK10 rated mechanical impact resistance. Plain removable door with captive screw locking system.

Designed for wall mounting with single-piece body. Equipped with earth stud for electrical safety. Dimensions: 300 mm height x 600 mm width x 120 mm depth. Color: Grey (RAL 7035) for professional finish. Compliant with IEC 62208, REACH, UL, BV, DNV, RoHS, LR standards.

Includes 1 enclosure body, 1 door/cover, and 6 cover screws. Explore the Schneider Electric enclosures range in the Electrical Enclosures category at EnvMart for reliable, robust industrial solutions.
