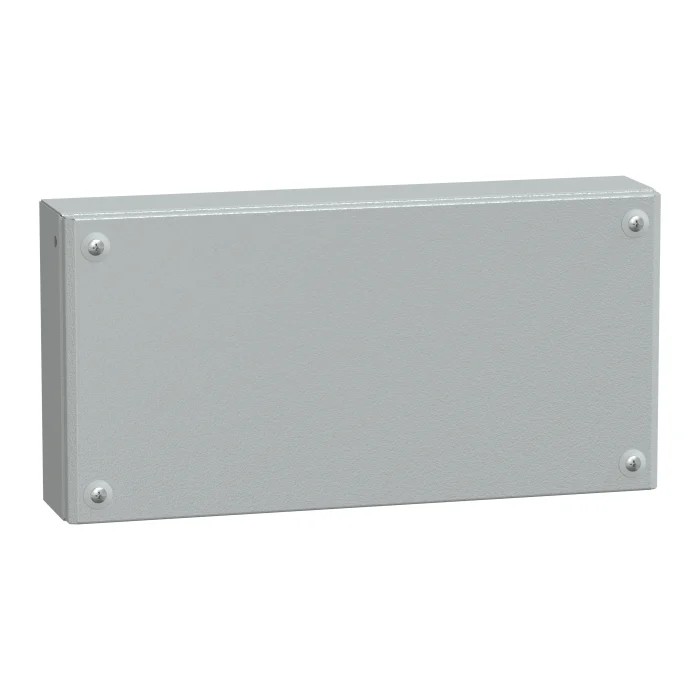

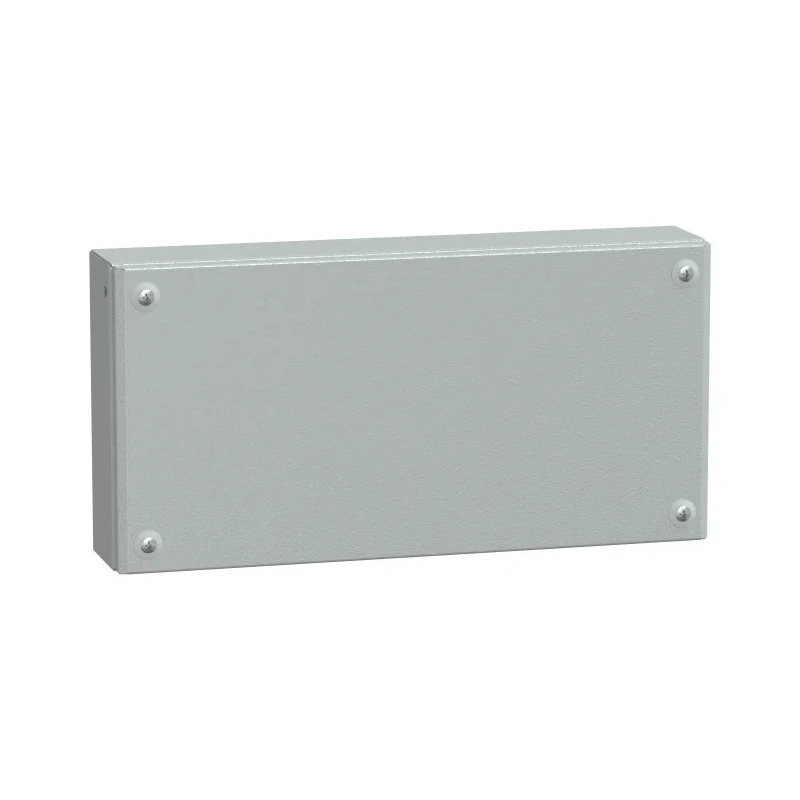

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 Dust and Water Resistant 200 mm x 400 mm x 80 mm NSYSBM20408

Schneider Electric NSYSBM20408 PanelSeT SBM Series Steel Wall Box is designed for industrial and commercial electrical enclosures requiring robust protection. This enclosure measures 200 mm in height, 400 mm in width, and 80 mm in depth, providing a compact yet functional housing solution suitable for protecting sensitive electronic equipment.

Manufactured from high-grade sheet steel coated with a grey polyester powder finish (RAL 7035), this wall-mount box offers excellent mechanical strength and durability. Its single-piece folded and welded construction ensures stability and resistance against deformation during installation and operation.

The enclosure meets IP66 standards (IEC 60529), making it dust-tight and resistant to powerful jets of water, ideal for challenging environmental conditions such as industrial plants, underground car parks, and tunnel infrastructures. Additionally, the box complies with IK10 impact protection standards (IEC 62262), able to withstand impacts from a 5 kg object dropped from 40 cm height.

Security and accessibility are optimized by the removable plain door fitted with a polyurethane sealing gasket and captive PZ2 screwdriver half-turn screws. The door lock uses a captive screw locking system ensuring reliable closure and easy maintenance. An M6 x 16 earth stud is welded into the cover to guarantee efficient equipotential bonding with the enclosure body.

The enclosure design includes 2 or 3 pre-drilled profiles at the rear for mounting plates and DIN rails, allowing flexible installation options tailored to varied industrial machinery and building applications. The fixing mechanism employs half-turn metal screws facilitating installation with just a screwdriver, simplifying field assembly.

Robust sheet steel body with polyester powder coat for durability and corrosion resistance. IP66 rated for dust tightness and water ingress protection against powerful jets. IK10 impact resistance for enhanced mechanical protection in heavy industrial environments.

Single-piece folded and welded construction for structural integrity. Features captive half-turn screw locks on the removable plain door for secure closure. Welded M6 x16 earth stud provides reliable grounding connection.

Rear profiles allow mounting of plates and DIN rails to accommodate diverse equipment. Easy installation through rear fixing or external mounting lugs. Grey finish (RAL 7035) for a professional and neutral appearance. Certified to various standards including REACH, BV, IEC 62208, DNV, RoHS, UL, and LR.

This enclosure series is part of Schneider Electric’s Spacial SBM range, engineered to meet the needs of industrial machine protection and building application environments. Its design supports sustainability initiatives with a better world claim for disassembly and recycling.

Applications for this wall box include electrical equipment protection in underground parking, road and railway tunnels, manufacturing plants, and other demanding commercial or industrial sites where environmental protection and security of installation are critical.

Choose Schneider Electric’s PanelSeT SBM Series NSYSBM20408 Steel Wall Box for reliable, sturdy, and certified industrial electrical enclosure solutions. Explore more Schneider Electric electrical enclosures and related products at EnvMart for comprehensive protection and installation solutions.
