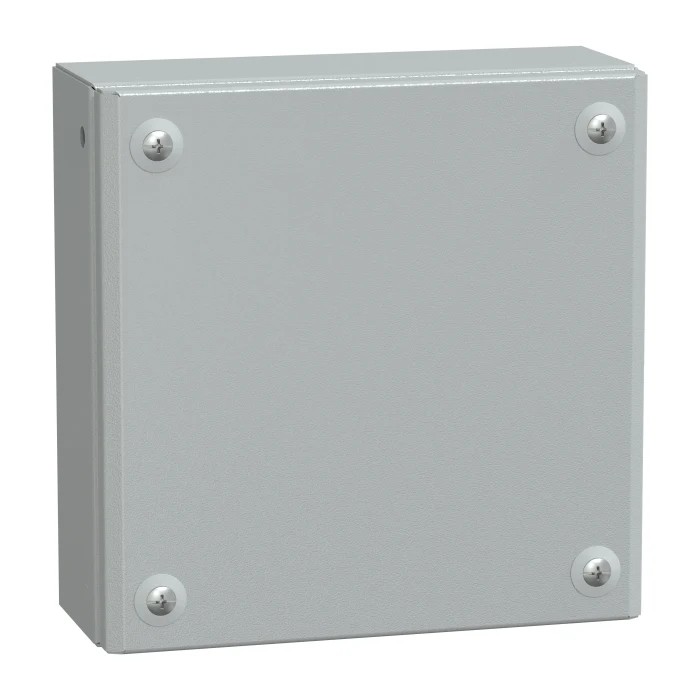

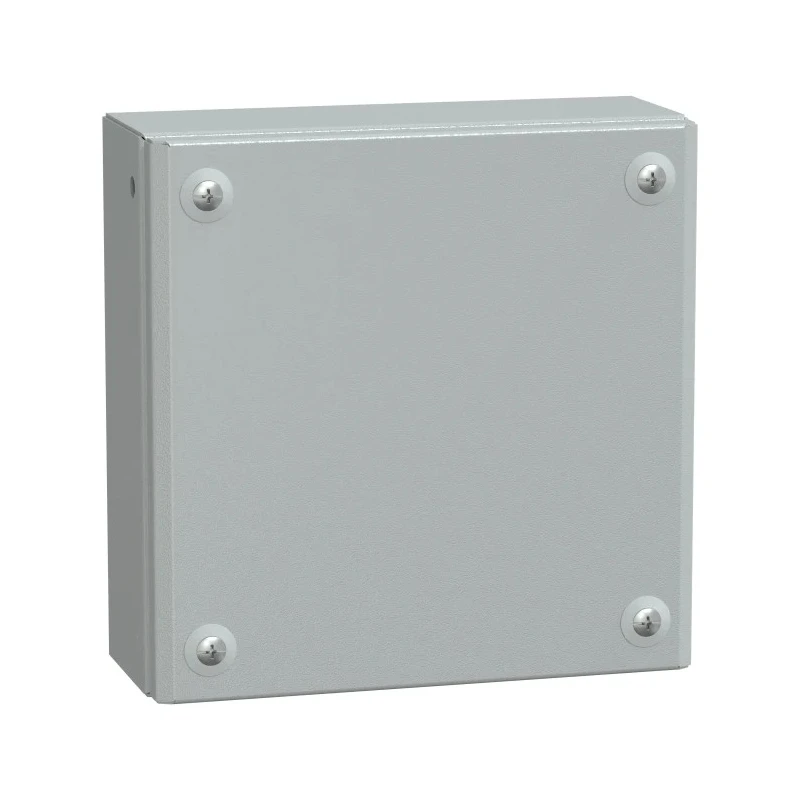

Schneider Electric PanelSeT SBM Series Steel Wall Box IP66 200 mm x 200 mm x 80 mm NSYSBM20208
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Colour | Grey |
| Body Material | Steel |
| Model | NSYSBM20208 |
| IP Rating | IP66 |
| Series | PanelSeT SBM |
| External Width | 200mm |
| External Depth | 80mm |
| External Height | 200mm |
| Standards/Approvals | RoHS, BV, LR, DNV, UL, IEC 62208, REACH |
| Door Lock Type | Screw |
| Better World Claim | Designed for Disassembly |
| Internal Mount Type | Panel |
| IK Rating | IK10 |
| The enclosure has an outside sealed area | PZ2 screwdriver captive screw |
| nVent HOFFMAN GL66 Series Steel Wall Box, IP66, 200 mm x 200 mm x 80mmBrand | nVent - Hoffman |
| nVent HOFFMAN GL66 Series Steel Wall Box, IP66, 200 mm x 300 mm x 120mmBrand | nVent HOFFMAN |
| Rittal E-Box EB Series Steel Wall Box, IP66, 200 mm x 200 mm x 120mmBrand | Rittal |
| Legrand Atlantic Series Steel Wall Box, IP66, 200 mm x 200 mm x 80mmBrand | Legrand |
Key Features
- Constructed from durable steel with a grey polyester finish.
- Provides IP66 ingress protection suitable for indoor and outdoor use.
- Equipped with screwed door locking and polyurethane gasket sealing.
- Meets IK10 mechanical impact resistance standards for robust protection.
- Designed for panel internal mounting with no transparent door included.
- Compliant with RoHS, BV, LR, DNV, UL, IEC 62208, and REACH standards.
- Supplied with a cover featuring half-turn metal screws and an earth stud.
- Includes fixing centres for mounting plates or DIN rails.
Product Description
Schneider Electric NSYSBM20208 PanelSeT SBM Series Steel Wall Box offers robust protection with an IP66 rating and dimensions of 200 mm height, 200 mm width, and 80 mm depth. This steel enclosure is designed for panel installations requiring reliable environmental sealing and mechanical impact resistance in industrial or commercial settings.
The enclosure body is made of sturdy steel with a grey polyester coating (RAL 7035) for excellent corrosion resistance. The cover includes a polyurethane sealing gasket and is secured by 4 half-turn metal screws with a captive PZ2 screwdriver screw lock that ensures a sealed exterior area.
This wall box is suitable for indoor and outdoor applications, providing dust-tight protection and resistance against heavy water jets. The IK10 rating certifies protection against impacts from a 5 kg object dropped from 40 cm, making it ideal for demanding environments.
The enclosure supports internal panel mounting and is designed without a chassis or mounting plate, featuring 2 drilled profiles for installing mounting plates or DIN rails with 12.5 mm fixing centres. It also includes a welded M6 x 16 earth stud to maintain equipotential bonding with the enclosure body.
Certified to industry standards such as RoHS, BV, LR, DNV, UL, IEC 62208, and REACH, the PanelSeT SBM series ensures compliance with safety and environmental requirements. Constructed of steel with grey polyester finish for durability.
Compact size with 200 x 200 x 80 mm external dimensions. IP66 protection for water and dust ingress resistance. Mechanical impact resistance IK10 rating for toughness. Includes half-turn captive screw door locking for secure sealing.
Panel-mount design with drilled profiles for DIN rail fitting. Certified to multiple international standards for industrial use. Equipped with earth stud for safety grounding. Designed for industrial machine and building electrical enclosure applications.
Suitable for indoor and outdoor installations with robust protection.
Schneider Electric PanelSeT SBM Wall Boxes are widely used in industrial automation, electrical distribution, manufacturing plants, and building infrastructure projects. They provide high-performance enclosures protecting sensitive electronics, controls, and wiring from harsh environmental factors. Explore more industrial electrical enclosures and comprehensive PanelSeT series products on EnvMart for your automation and construction needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions are 200 mm in height, 200 mm in width, and 80 mm in depth.
It has an IP66 rating, providing dust-tight protection and resistance against heavy water jets, suitable for both indoor and outdoor applications.
The enclosure is constructed from steel with a grey polyester finish, which offers excellent corrosion resistance.
This model has an IK10 rating, indicating it can withstand impacts from a 5 kg object dropped from 40 cm.
The door is secured with a screw locking mechanism using half-turn metal screws with a captive PZ2 screwdriver screw lock.
Yes, it is designed for internal panel mounting and includes drilled profiles for installing mounting plates or DIN rails.
It complies with several standards including RoHS, BV, LR, DNV, UL, IEC 62208, and REACH.
The welded M6 x 16 earth stud is included to maintain equipotential bonding with the enclosure body for safety grounding.
It is suitable for industrial automation, electrical distribution, manufacturing plants, and building infrastructure projects.
It includes a polyurethane sealing gasket and a cover secured by half-turn metal screws, ensuring a sealed exterior area.
The country of origin for this product is India.
This claim indicates that the enclosure is designed to be easily disassembled, which can facilitate recycling and maintenance.
