Omron Z Series Roller Lever Limit Switch, SPDT Contact Configuration, Thermosetting Resin Housing, 500V AC, 15A IP00

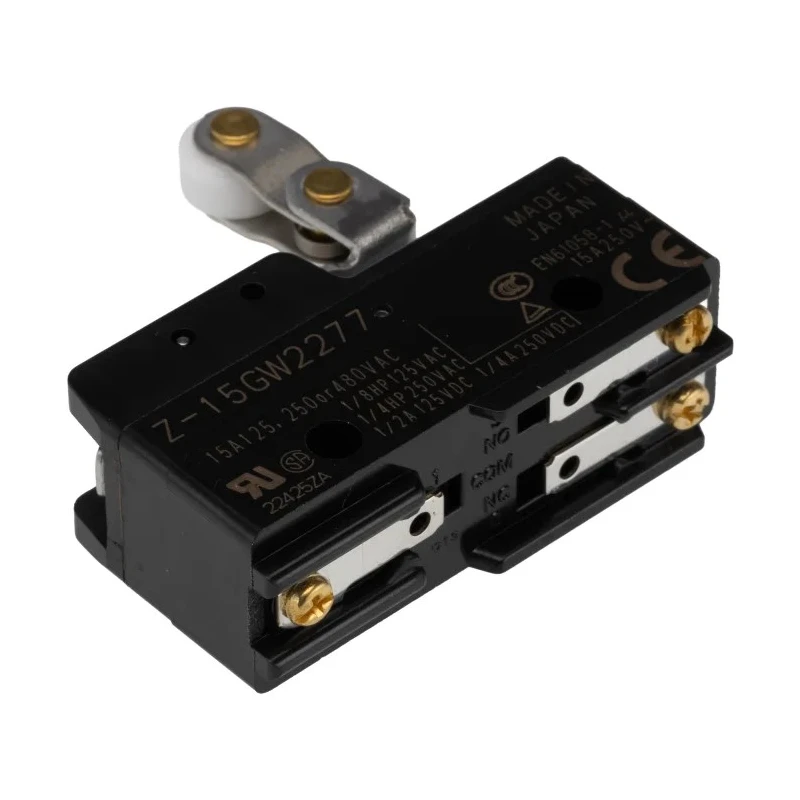

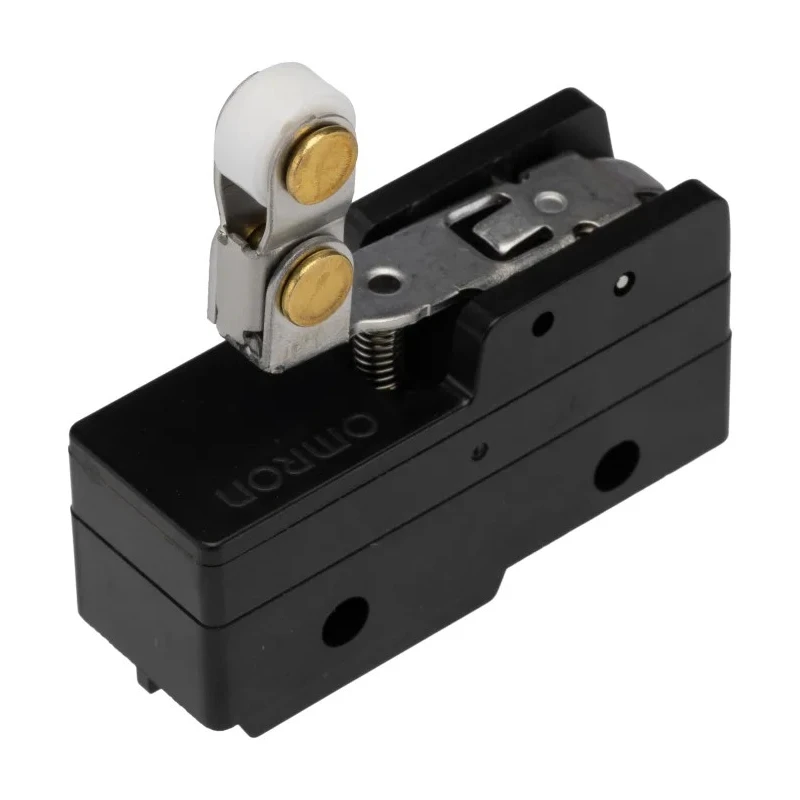

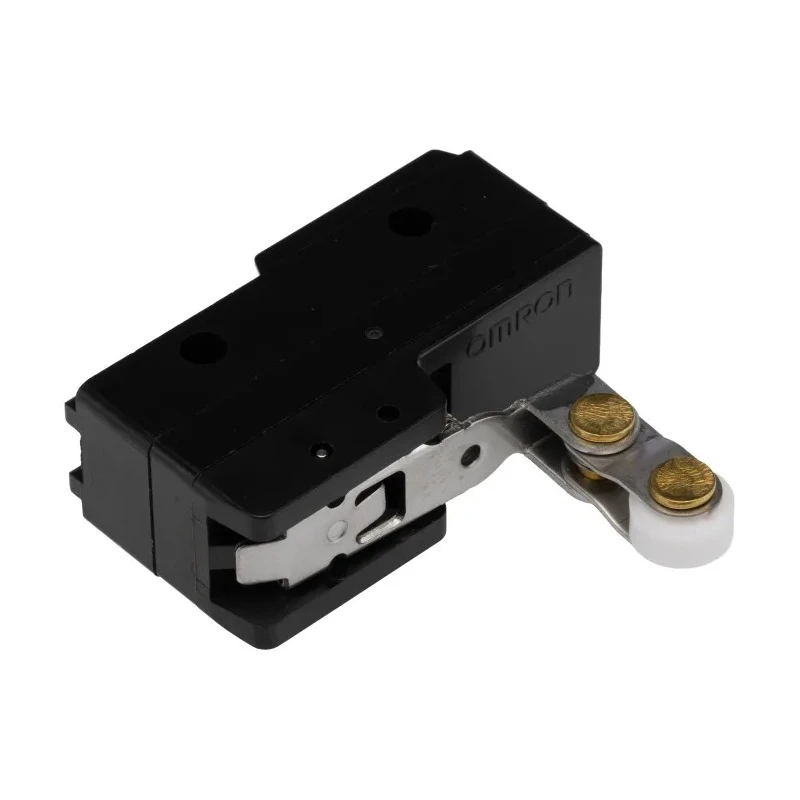

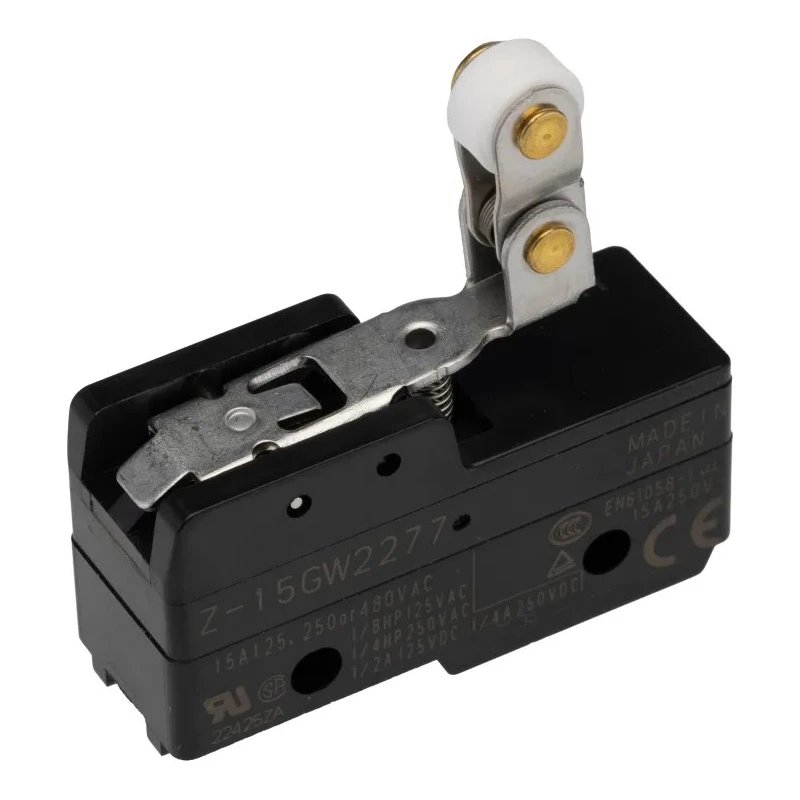

Omron Z-15GW2277 is a Z Series Roller Lever Limit Switch featuring SPDT contact configuration and an IP00 rating, engineered for industrial automation and control applications. The device utilizes a roller lever actuator to precisely detect position changes and activate control circuits, ideal for machinery safety and process monitoring.

The switch housing is made from thermosetting resin which enhances durability and resistance against mechanical wear and environmental impacts. It supports a switching current of 15A and can operate reliably up to 500V AC and 250V DC, making it suitable for a range of electrical control systems.

Compact and versatile, this limit switch measures 49.2mm in length, with a depth of 17.45mm and width of 50.5mm, allowing flexible mounting orientations. It performs well in temperature ranges from -25°C to 80°C and achieves a high mechanical life rated at 20 million operations, ensuring longevity in demanding industrial environments.

The snap action contact type guarantees quick and dependable switching action. The solder terminal design offers secure and stable electrical connections. It is compliant with key industry standards including RoHS, CE, and CCC, underscoring its suitability for global industrial deployment.

Common applications include automation control within machinery, safety limit detection in industrial settings, position detection on conveyor systems, robotic and automated equipment controls, and limit control in HVAC systems. Note that this model is designed for indoor usage as its IP00 rating does not provide dust or water protection.

Roller lever actuator type ensures precise mechanical control. Thermosetting resin housing offers robust durability. Supports maximum switching current of 15A. Rated for 500V AC and 250V DC switching voltages. Compact dimensions for flexible installation.

Operating temperature range from -25°C to 80°C. Mechanical life up to 20 million operations. Snap action contact provides swift switching response. Solder terminal type for secure electrical connections. Complies with RoHS, CE, and CCC standards.

Manufactured in Japan with high quality assurance. Explore the full range of Omron Limit Switches and related control solutions at EnvMart for reliable industrial automation components.
