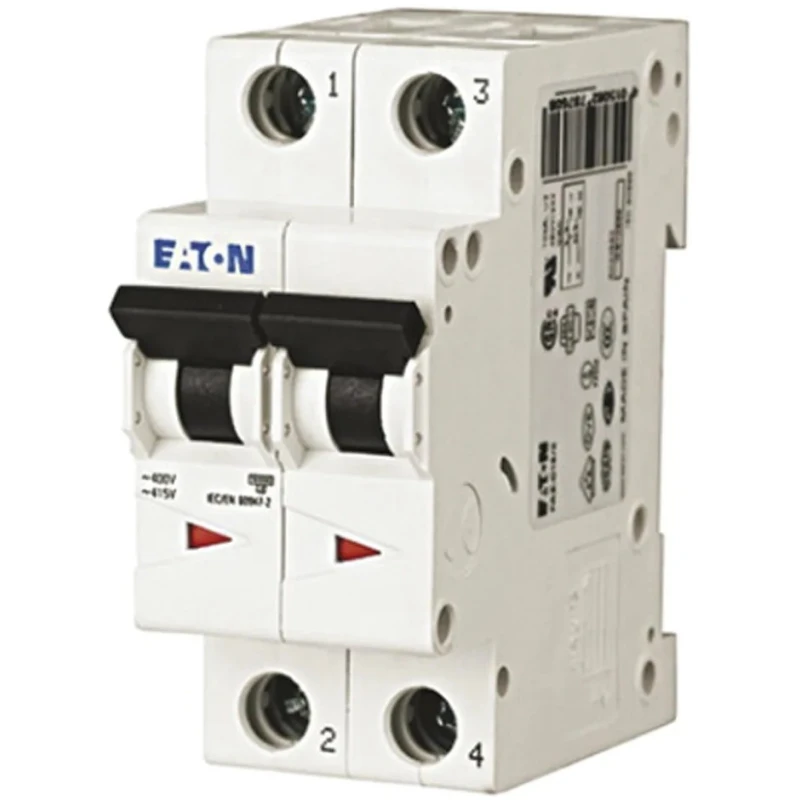

Eaton xEffect Miniature Circuit Breaker 2-Pole 2A Type C 400V AC 6 kA Breaking Capacity 239097 FAZ6-C2/2

Eaton 239097 FAZ6-C2/2 Miniature Circuit Breaker is a 2-pole, 2A Type C device engineered to provide effective circuit protection at an AC voltage rating of 400V and a breaking capacity of 6 kA. It is designed for DIN rail mounting and features a toggle switch reset actuator, facilitating quick reactivation after a trip and reducing downtime in electrical systems.

This MCB is compact with a width of 17.5 mm and a depth of 62 mm, allowing for flexible installation in confined spaces commonly found in residential, commercial, and industrial electrical panels. The thermal magnetic tripping mechanism offers robust and precise circuit interruption, safely handling high inrush currents typical in motor and lighting circuits.

The Type C tripping characteristic enables the breaker to safely handle transient surges and provides protection tailored for circuits with moderate inductive loads. Its breaking capacity of 6 kA ensures the interruption of high fault currents, thus maintaining the safety and integrity of electrical installations.

Rated with an IP20 enclosure rating, this breaker is protected against solid objects larger than 12 mm but is intended for indoor use. It performs reliably within ambient temperatures from -25°C to 75°C, making it suitable for varied environmental conditions. It accommodates conductor cross-sections ranging from 1 mm² to 25 mm² for both solid and stranded wires, providing versatility in installation.

Applications include residential circuit protection, integration into automation and control systems, as well as commercial and industrial machine safety circuits. The toggle switch reset feature allows maintenance personnel to quickly restore power after clearing faults, improving operational efficiency.

Compact 2-pole design enables flexible installation on DIN rails. Type C tripping characteristic ensures safe handling of high inrush currents. Toggle switch actuator allows quick reset after tripping with minimal downtime.

6 kA breaking capacity offers robust protection against fault currents. Thermal magnetic tripping mechanism provides accurate and reliable operation. Suitable for residential, commercial, and industrial electrical panels.

IP20 rated for protection against solid objects greater than 12 mm. Operates effectively within temperature range of -25°C to 75°C. Accommodates solid-core and multi-wired conductors from 1 mm² up to 25 mm². Compact dimensions: 17.5 mm width and 62 mm depth for space-saving installations.
