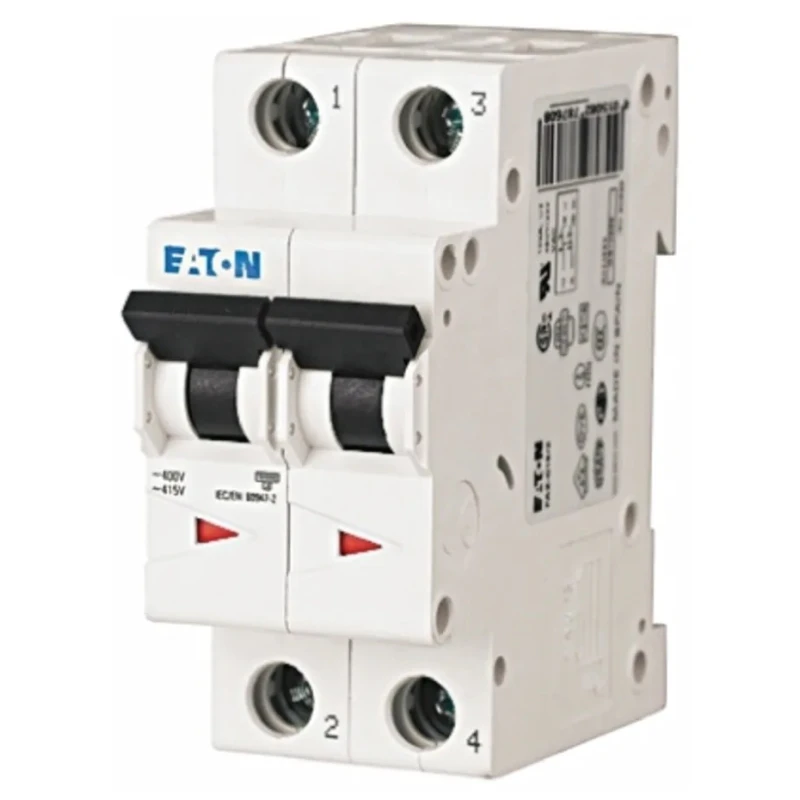

Eaton Miniature Circuit Breaker 2-Pole 500mA Type C 400V AC 6 kA Breaking Capacity FAZ6
Specifications
| Country of Origin | India |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | FAZ6 |
| Depth | 62mm |
| IP Rating | IP20 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Current Rating | 500mA |
| Series | xEffect |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
| Type B | Instantaneous trip when the electrical current through the device is 3 to 5 times the rated current. The type B trip curve MCBs are designed for standard circuit protection, typically protection of generators, persons and very long cables |
| Type C | Instantaneous trip when the flow-through current is 5 to 10 times the rated current |
| Type D | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type K | Instantaneous trip when the flow-through current is 10 to 14 times the rated current |
| Type S | Instantaneous trip when the flow-through current is 13 to 17 times the rated current |
| Type Z | Instantaneous trip when the flow-through current is 2 to 3 times the rated current |
| MCB Module widths | 1P 17.5mm, 2P 35mm and 3P 52.5mm |
Key Features
- Designed for electrical distribution boards and control circuits with current limiting for fast short-circuit interruption.
- Features combined thermal and electromagnetic release for reliable protection.
- Supports DIN rail mounting with a compact 17.5 mm module width per pole for space saving.
- Trip-free mechanism ensures safety by preventing handle defeat in the ON position.
- Provides clear contact position indication via a toggle switch actuator.
- Suitable for 400V AC rated voltage and provides 6 kA breaking capacity.
- IP20 finger-proof rating ensures protection against solid objects.
- Meets IEC 60947-2 and other relevant international standards for miniature circuit breakers.
Product Description
The Eaton FAZ6 series Miniature Circuit Breaker (MCB) model FAZ6-C0,5/2 is a high-quality 2-pole device rated at 500mA current rating, Type C tripping characteristic, and a 6 kA breaking capacity designed for AC voltages up to 400V. It provides efficient protection for control circuits and electrical distribution systems by limiting let-through electrical energy during short-circuits, reducing the risk of overload damage to equipment.
This MCB features a dual thermal-magnetic trip mechanism that combines both rapid short-circuit interruption and overload protection. The trip-free mechanism prevents the breaker from being held ON incorrectly, ensuring user safety. The device includes a toggle switch for easy manual resetting and clear status indication.
Compact design with a 17.5 mm module width per pole saves panel space and simplifies installation on DIN rails, including a 3-position rail offering installation flexibility. The MCB is finger-proof rated IP20, providing standard protection against solid objects.
The FAZ6 series complies with international standards IEC 60947-2 ensuring reliable performance in industrial, commercial, and residential applications. It is part of Eaton’s extensive range of circuit protection devices that also includes interlocks and accessories for enhanced system integration.
This miniature circuit breaker is ideal for electrical panels protecting sensitive equipment from damage due to overloads or short circuits in industrial plants, commercial buildings, and residential installations.
Designed for fast, reliable overcurrent interruption with thermal magnetic trip. Compact 2-pole layout with a 17.5 mm width per pole and modular accessories support. Toggle switch actuator provides clear ON/OFF status feedback and manual control.
Rated for 400V AC operation with 6 kA breaking capacity for robust fault clearing. Finger-proof IP20 enclosure protection ensures operator safety. Trip-free mechanism prevents accidental override of protection. Compliance with IEC 60947-2 and other international standards ensures broad compatibility.
Explore Eaton products and other Miniature Circuit Breakers on EnvMart for advanced electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA.
It provides a breaking capacity of 6 kA.
The rated AC voltage for this unit is 400V.
The width of this model is 17.5 mm per pole.
It features a thermal magnetic tripping mechanism.
This model has an IP20 rating, providing protection against solid objects.
It supports DIN rail mounting, making installation straightforward.
The depth of the Eaton FAZ6 is 62 mm.
The Eaton FAZ6 has Type C tripping characteristics, which trip when the current is 5 to 10 times the rated current.
It provides clear contact position indication via a toggle switch actuator.
Yes, it is suitable for industrial, commercial, and residential applications, providing protection for sensitive equipment.
It complies with IEC 60947-2 and other relevant international standards for miniature circuit breakers.
