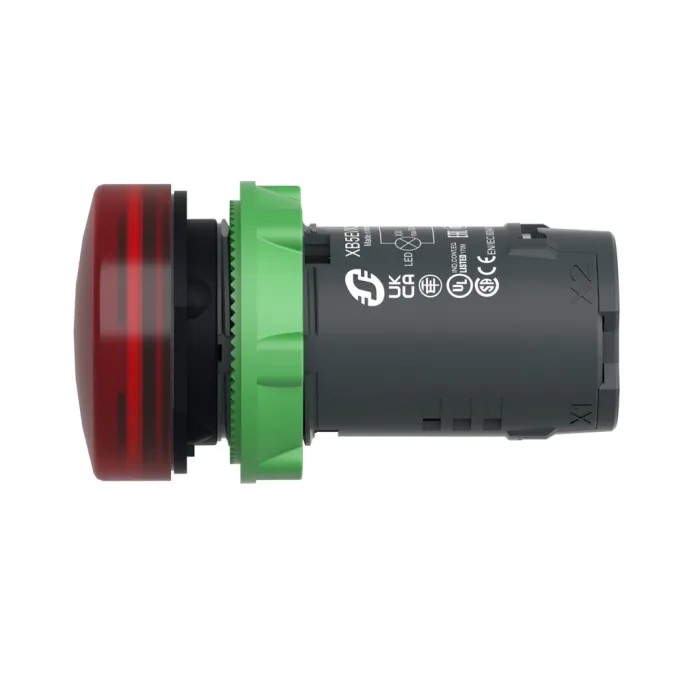

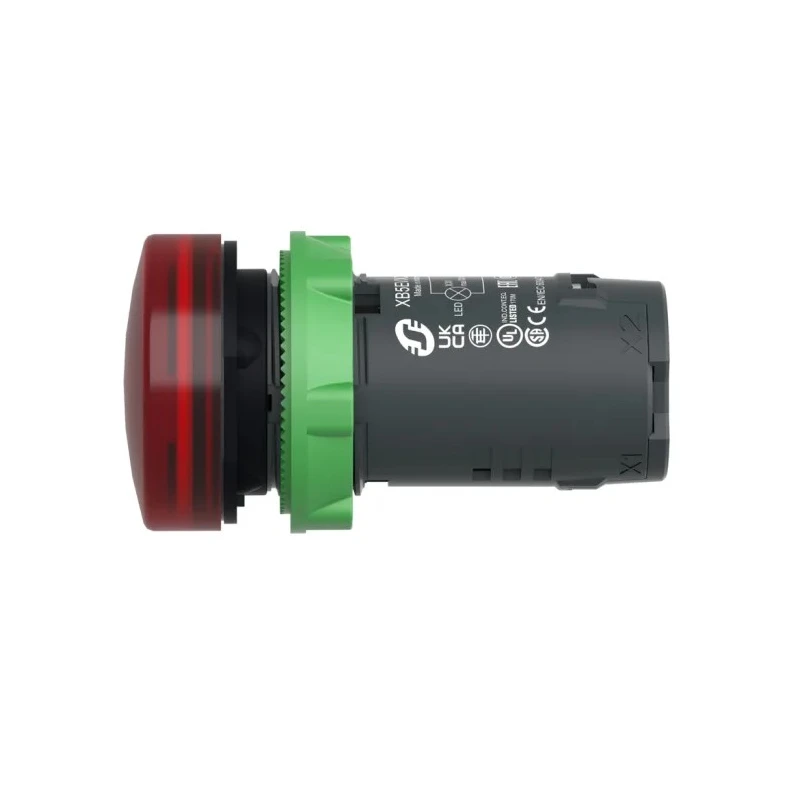

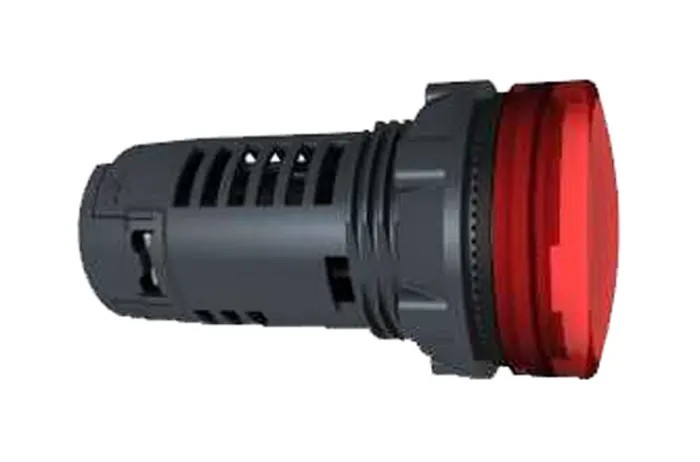

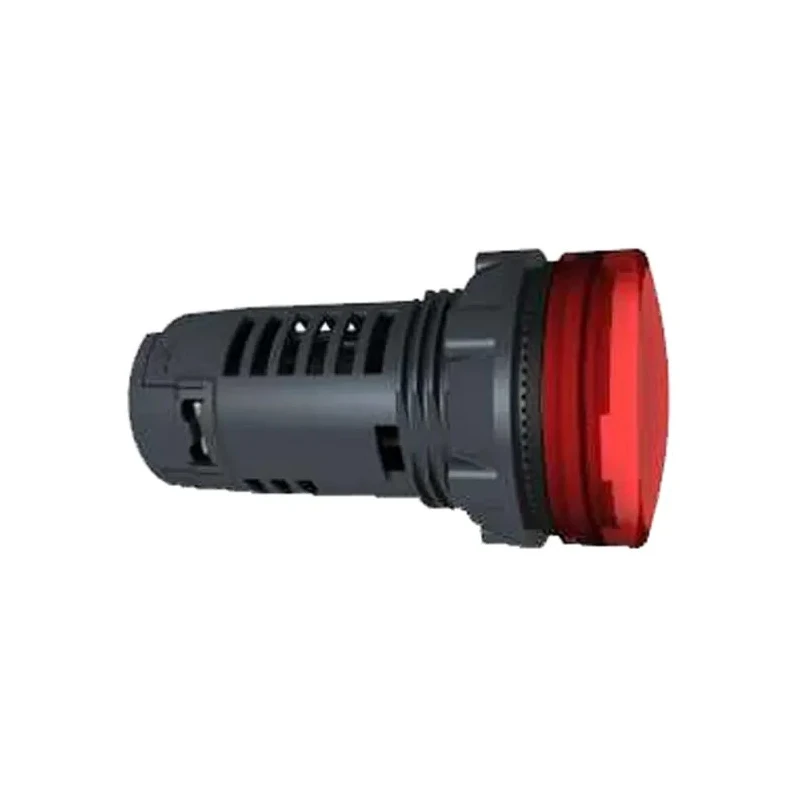

Schneider Electric Panel Mount Red LED Pilot Light Harmony XB5 22 mm Cutout 230-240V AC IP66 Round XB5EVM4

Schneider Electric XB5EVM4 Panel Mount Red LED Pilot Light is part of the Harmony XB5 series, designed to provide clear, reliable indication of machine status in industrial, manufacturing, and automation environments. This pilot light operates on 230 to 240V AC power supply and fits into a standard 22 mm diameter cutout, ensuring easy integration into control panels.

The robust plastic body material combined with a metal bezel offers excellent resistance to chemicals and provides double electrical insulation, enhancing safety and durability. With an IP66 rating, this pilot light is dust tight and protected against powerful water jets, making it suitable for use in harsh or outdoor industrial conditions. Its monolithic LED lens ensures a vivid red illumination for clear visibility from a distance.

Mounting is simplified with screw clamp terminals and round shape design, facilitating straightforward installation and replacement. The pilot light supports a low current rating of 14 mA, reducing energy consumption and improving operational efficiency.

Certified to international standards including CSA, UL, and CE, this component is compliant with recognized safety regulations, ensuring reliable performance in diverse industrial applications. With the Better World product designation, it promotes sustainability and repairability, extending service life and reducing waste.

Widely used in industrial automation, electrical control panels, manufacturing machinery, and process control systems, the XB5EVM4 helps operators monitor machine and process statuses effectively. Its rugged construction also makes it ideal for HVAC systems, commercial automation, and water treatment installations.

Designed for industrial applications with chemical resistance and electrical insulation. Durable plastic body with metal bezel for enhanced protection. IP66 rating ensures dust and water resistance in harsh environments.

Bright red monolithic LED for clear operational indication. Panel mount design with 22 mm cutout and screw clamp terminals. Certified to CSA, UL, and CE standards for safety. Low current consumption of 14 mA for energy efficiency.

Repairable by the end user, supporting sustainability goals. Indonesian origin with Better World eco-credentials. Explore the extensive range of Schneider Electric products and other Pilot Lights on EnvMart for industrial automation, electrical control, and monitoring solutions.
