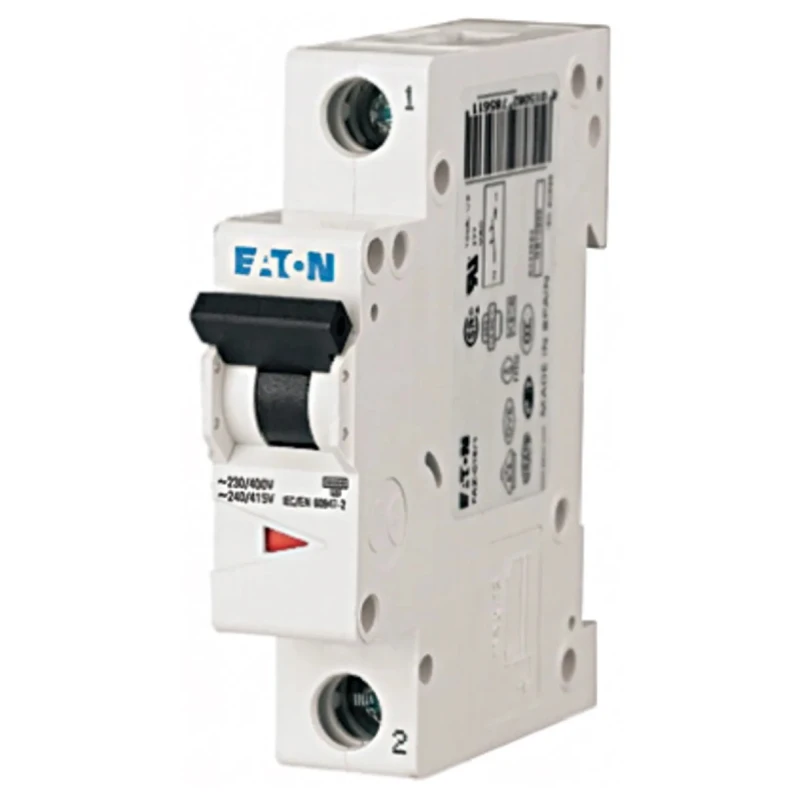

Eaton xEffect Miniature Circuit Breaker 1-Pole 20A Type B 400V AC 6 kA Breaking Capacity 239023 FAZ6-B20/1

Eaton 239023 FAZ6-B20/1 miniature circuit breaker is a 1-pole, 20A Type B protective device suitable for electrical AC circuits rated at 400V. Featuring a breaking capacity of 6 kA, this MCB is designed for reliable overcurrent protection with a thermal magnetic tripping mechanism.

The breaker mounts on standard DIN rails and uses twin-purpose terminals for secure and flexible wiring. Its compact form factor measures 17.5mm wide, 80mm in height, and 62mm in depth, allowing integration in constrained panel spaces.

Constructed to comply with international standards such as IEC/EN 60898, IEC/EN 60947-2, UL 1077, CSA, and VDE, this product ensures high reliability across industrial, commercial, and residential applications. It offers IP20 rated protection for indoor environments.

The Type B tripping characteristic is ideal for circuits with low inrush currents, commonly found in lighting and household appliances. Eaton’s xEffect range is an enhancement over previous PLS6 MCB versions, certified to meet rigorous IEC/EN standards.

This MCB features a thermal magnetic tripping mechanism ensuring reliable circuit protection. It has a DIN rail mount type for easy installation in electrical panels. Twin-purpose terminals provide secure and versatile wiring options.

Compact dimensions include a width of 17.5mm, height of 80mm, and depth of 62mm. The device meets multiple international standards including IEC/EN 60898 and UL 1077. Rated IP20 protection ensures basic resistance to solid objects and safe indoor use.

Tripping characteristics conform to Type B curve ideal for residential and light commercial applications. Its xEffect range offers an updated design with certifications to IEC/EN 60898 standards.

This Miniature Circuit Breaker is highly suitable for electrical protection in industrial, commercial, laboratory, construction, and HVAC sectors. Offering compact design and international certifications, it ensures safety and compliance.
