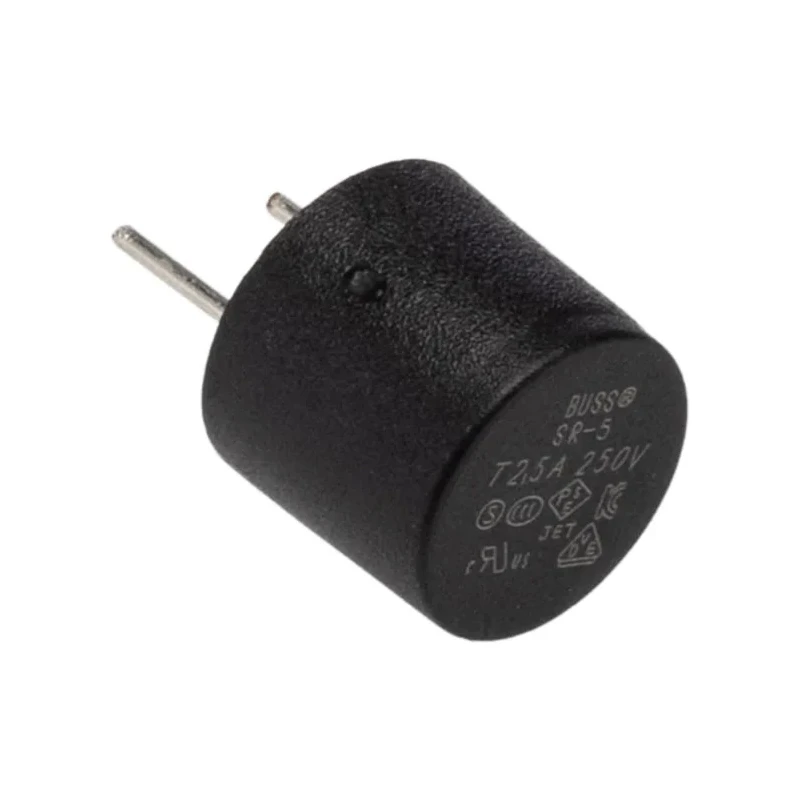

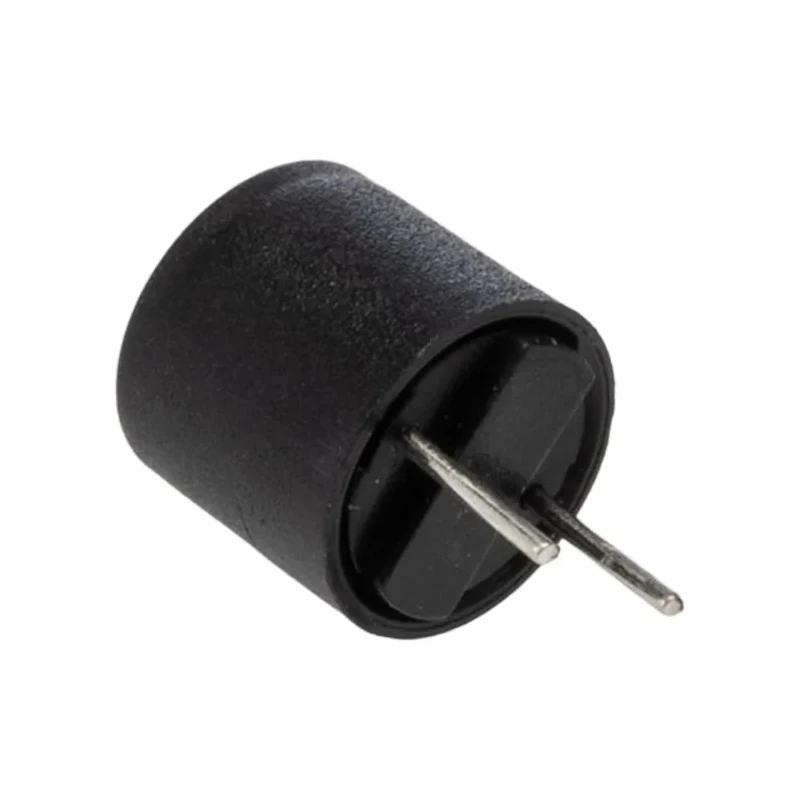

Eaton Fuse, Radial, Time Delay, 2.5A Current Rating, 250V AC, Breaking Capacity 35A, Model SR-5-2-5A-BK

Eaton SR-5-2-5A-BK fuse is a high-quality, radial lead time delay fuse rated for 2.5A current at 250V AC. This fuse is engineered to provide dependable overcurrent protection in low-voltage electronic and electrical circuits, making it ideal for industrial and manufacturing control panels, electronic equipment, and motor control assemblies.

The time delay feature permits harmless inrush currents typical during device start-up, preventing nuisance fuse blowing while still safeguarding against sustained overloads. Its breaking capacity of 35A ensures rapid clearing of serious fault currents, enhancing system safety.

Designed for harsh environments, the fuse operates reliably within a wide temperature range from -40°C to +125°C, suitable for various industrial ambient conditions without derating. The radial 1mm leads with 4.3mm protrusion provide firm through-hole mounting on printed circuit boards, offering secure electrical connections.

This fuse complies with international miniature fuse standards IEC 60127-3 and carries approvals under RoHS, VDE, and PSE regulations, confirming its quality and environmental compliance.

Time-delay characteristic allows safe handling of harmless inrush currents in circuits. Current rating of 2.5A suitable for stable circuit protection. Breaking capacity of 35A efficiently clears significant fault currents.

Maximum operating temperature of +125°C suits elevated-temperature environments. Radial 1mm leads with 4.3mm protrusion ensure secure through-hole mounting. Operates reliably from -40°C to +125°C across wide ambient conditions.

Complies with IEC 60127-3 and approved by RoHS, VDE, and PSE standards. Compact dimensions facilitate integration: length 7.37mm, width and diameter 8.5mm, height 7.6mm.

Common applications include use in factory automation control panels, power supplies for electronic devices, motor control assemblies subject to start-up surges, and safety protection in measurement and test instruments.

This non-resettable fuse is essential for ensuring safety and reliability in diverse industrial, laboratory, manufacturing, and commercial electrical systems. Explore more Fuses and related electrical protection devices in the Electronics & Electricals category at EnvMart.
