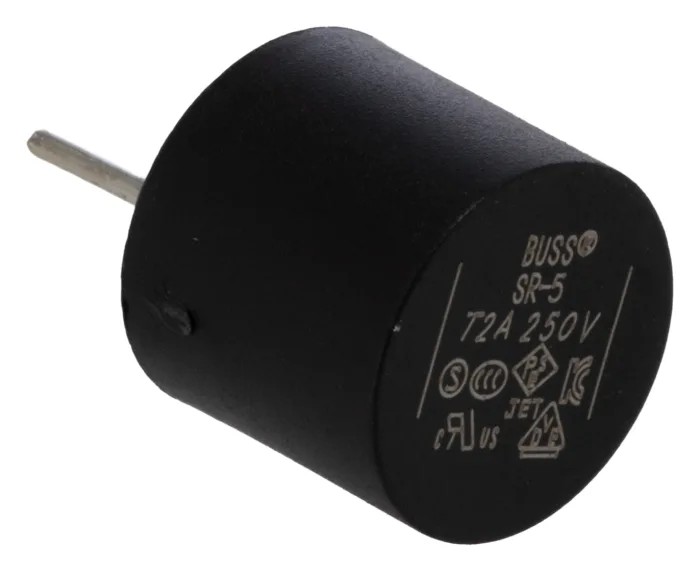

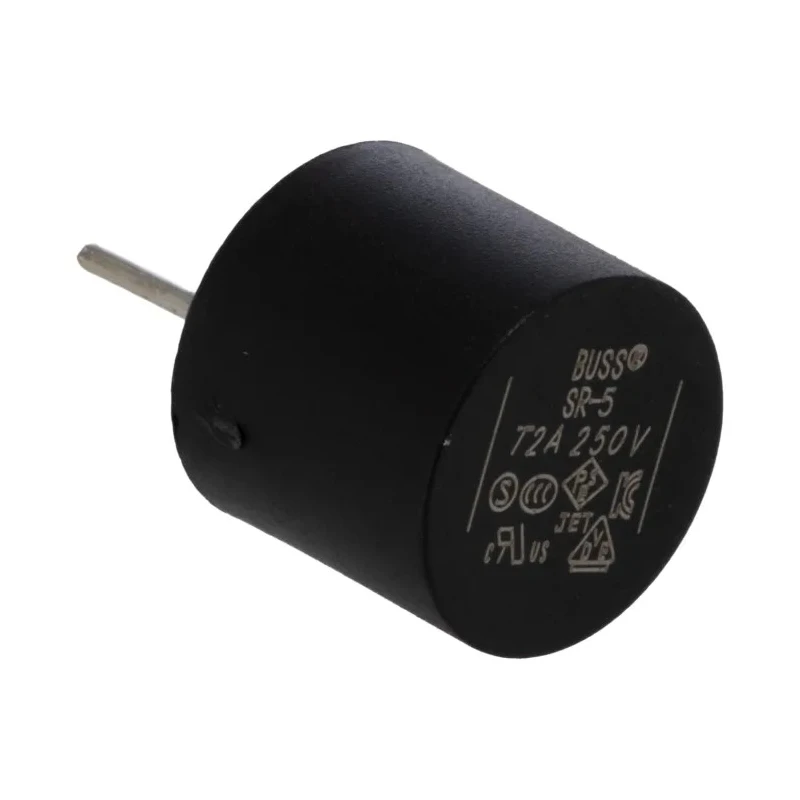

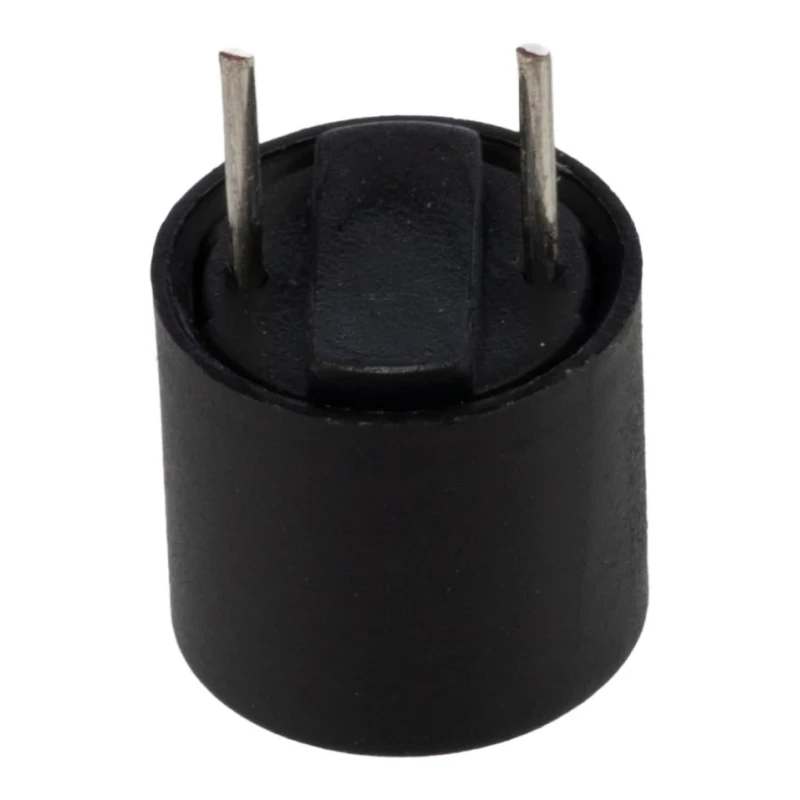

Eaton Non-Resettable Fuse Radial 2A 250V AC Time Delay SR-5-2A-BK

Eaton SR-5-2A-BK non-resettable fuse offers reliable circuit protection with a 2A current rating and 250V AC voltage suitability, designed as a radial lead time-delay fuse.

This fuse is ideal for a wide variety of applications requiring primary and secondary overcurrent protection, featuring high inrush withstand capability that prevents nuisance blowouts during startup.

The fuse body is made of thermoplastic polyamide, providing excellent durability and mechanical strength. Its compact dimensions, including 7.37 mm length, 8.5 mm diameter, and 4.3 mm lead length, allow easy integration into printed circuit boards (PCB).

Operating temperature ranges from -40°C to 85°C, ensuring functionality in harsh conditions. The breaking capacity of 35A assures robust fault clearing under overload situations.

The Eaton SR-5 series, originally Bussmann products, comply with industry standards such as PSE, RoHS, IEC 60127-3, IEC 60068-2-20, and VDE, making them a trusted choice in industrial, electronic, and electrical applications.

This fuse is compatible with both leaded and lead-free soldering techniques including reflow and wave solder processes. Applications span across industrial automation, electrical circuits, and electronic equipment requiring compact and reliable fuse protection.

Set contains 1 Pc Eaton Non-Resettable Fuse Radial 2A 250V AC SR-5-2A-BK. Explore extensive selections on EnvMart in the Fuse category for comprehensive circuit protection solutions. Designed for primary and secondary overcurrent protection with high inrush withstand capability.

Thermoplastic polyamide body ensures durability and reliability. Compatible with both leaded and lead-free reflow and wave solder. Features a breaking capacity of 35A for effective circuit protection. Operating temperature ranges from -40°C minimum to 85°C maximum.

Small form factor with dimensions approximately 7.37 mm length, 8.5 mm diameter, and radial leads. Complies with international standards including PSE, RoHS, IEC 60127-3, IEC 60068-2-20, and VDE. Part of the Bussmann series known for subminiature PCB Fuse solutions.
