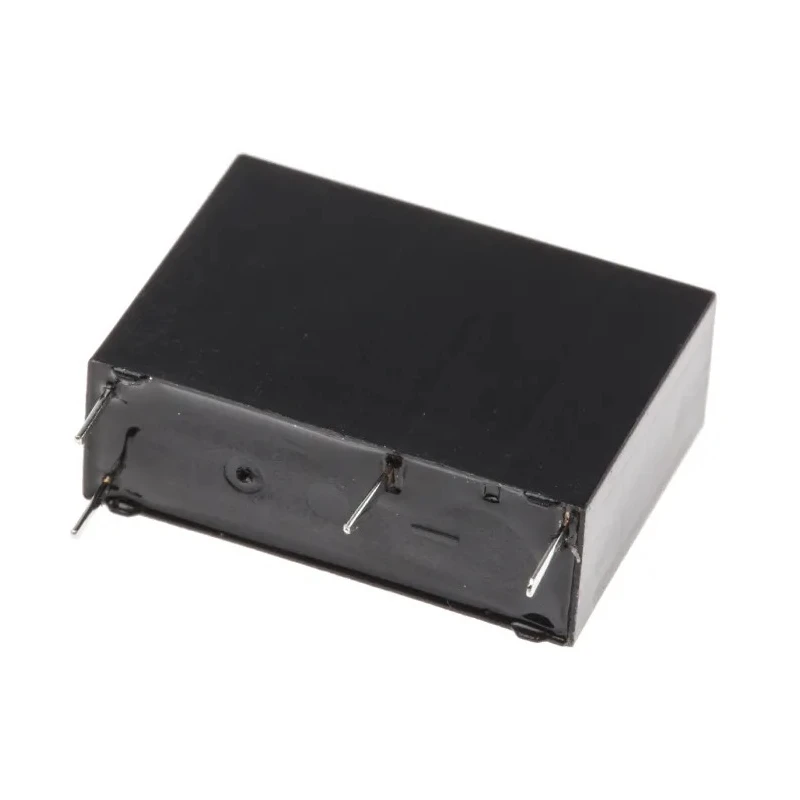

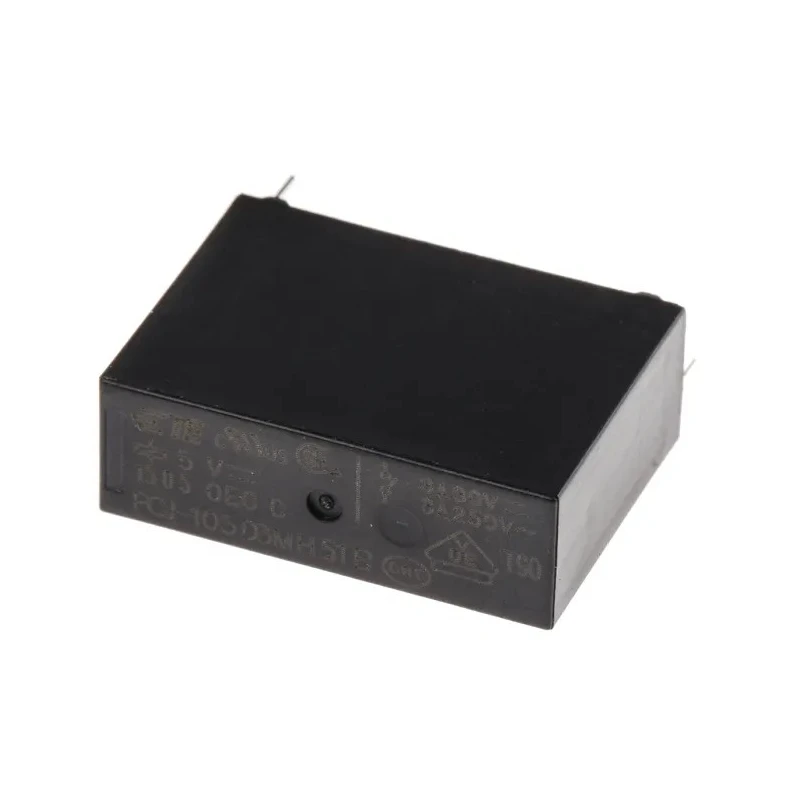

TE Connectivity Miniature PCB Power Relay, 5V DC Coil, 3A Switching Current, SPST, Through Hole, Silver PCJ-105D3MH,301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20.4mm |
| Model | PCJ-105D3MH,301 |
| Width | 7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PCJ |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Switching Current | 3A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, ELV, IEC, REACH, RoHS, UL, VDE |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
Key Features
- This PCB power relay features a sensitive coil rated at 200 mW for efficient operation.
- The relay supports an operating temperature range from -30°C to 85°C for versatile use.
- Silver Alloy contact material ensures high conductivity and durability for switching tasks.
- Through-hole terminal type enables secure and stable PCB mounting.
- Compact dimensions of 15mm height, 7mm width, and 20.4mm length suit space-constrained designs.
- Switching power ratings include 1.25 kVA and maximum switching voltages of 400VAC and 30VDC.
- Complies with international standards including CSA, ELV, IEC, REACH, RoHS, UL, and VDE certifications.
Product Description
TE Connectivity PCJ-105D3MH,301 is a miniature power PCB relay designed for industrial and commercial applications that require compact and efficient power switching. Featuring a 5V DC coil with a low power consumption of 200 mW, this relay provides reliable performance for various electrical control circuits.
The relay supports a Single Pole Single Throw (SPST) contact configuration with a maximum switching current of 3A, suitable for switching loads up to 1.25 kVA. Its silver alloy contacts offer excellent conductivity and resistance to wear, ensuring long operational life in harsh industrial environments.
Designed for through-hole PCB mounting, the relay dimensions are optimized for minimal space usage with a height of 15mm, width of 7mm, and length of 20.4mm. It operates reliably within a temperature range of -30°C to 85°C, making it suitable for both ambient and moderately hot conditions.
This PCJ series relay complies with numerous global standards such as CSA, ELV, IEC, REACH, RoHS, UL, and VDE, confirming its quality and safety for use in domestic appliances, industrial machinery, and automation systems.
Industrial use cases include automation systems, electrical appliances, HVAC controls, and power management where precise and dependable relay switching is essential. The PCJ-105D3MH,301 helps improve production efficiency by enabling quick and safe insertion into machinery through its through-hole mount design.
This PCB power relay features a sensitive coil rated at 200 mW for efficient operation. The relay supports an operating temperature range from -30°C to 85°C for versatile use. Silver Alloy contact material ensures high conductivity and durability for switching tasks.
Through-hole terminal type enables secure and stable PCB mounting. Compact dimensions of 15mm height, 7mm width, and 20.4mm length suit space-constrained designs. Switching power ratings include 1.25 kVA and maximum switching voltages of 400VAC and 30VDC.
Complies with international standards including CSA, ELV, IEC, REACH, RoHS, UL, and VDE certifications. Explore the wide range of Power Relays at EnvMart to find reliable components for your industrial and commercial electrical equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 3A.
The coil voltage of this relay is 5V DC.
The relay has dimensions of 15mm in height, 7mm in width, and 20.4mm in length.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The operating temperature range for this relay is from -30°C to 85°C.
This relay is designed for through-hole PCB mounting.
The contact material used in this relay is silver alloy, which ensures high conductivity.
The maximum switching voltage is 400VAC for AC and 30VDC for DC.
The coil power consumption is rated at 200mW.
This relay complies with several international standards including CSA, ELV, IEC, REACH, RoHS, UL, and VDE.
The coil resistance of this relay is 125Ω.
This relay is suitable for various applications including automation systems, electrical appliances, HVAC controls, and power management.
