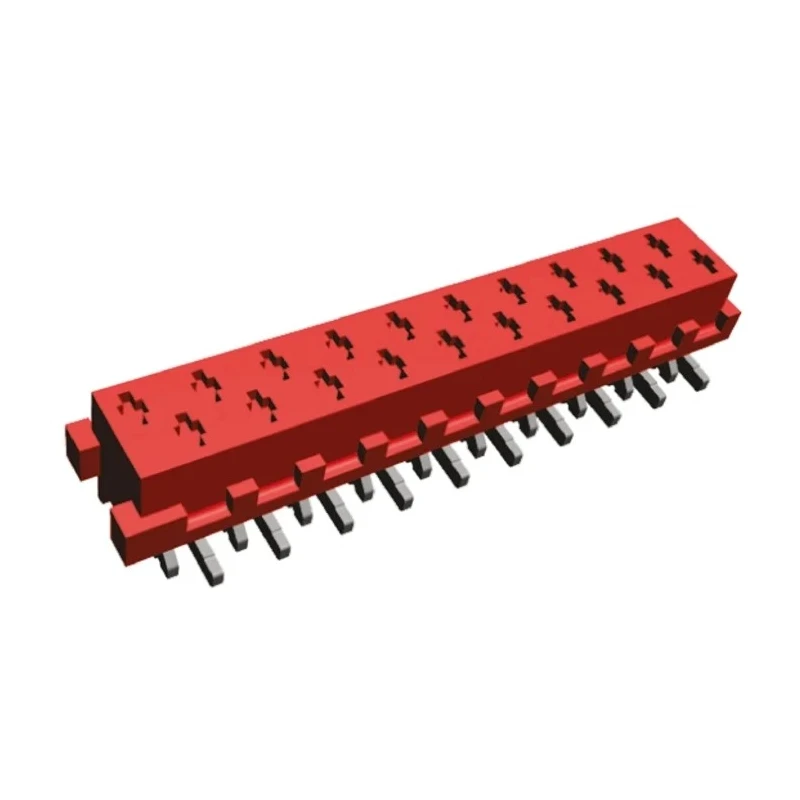

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 20-Contact 2 Row 1.27mm Pitch Solder 2-188275-0
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Surface |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Compact and space-saving design with a 1.27 mm pitch for high density mounting.
- Features 20 female-on-board contacts arranged in 2 rows for efficient connection.
- Contacts are made of bronze material with gold plating for excellent conductivity and corrosion resistance.
- Terminated by solder with polyester housing for surface mounting on PCBs.
- Operating voltage rating of 100V with temperature tolerance from -40°C to 105°C.
- Designed with a contact spring system to prevent fretting corrosion and ensure gas tight connection.
- Polarized design prevents mismating during assembly.
- Suitable for board-to-board interconnection in industrial electronics applications.
Product Description
TE Connectivity 2-188275-0 Micro-MaTch Series Straight Surface PCB Socket is a precision-engineered female on-board SMT connector designed for robust board-to-board connections in industrial and electronic applications.
Featuring a 20-contact, 2-row configuration with a 1.27 mm pitch, this PCB socket offers a compact and space-efficient design tailored for dense circuit board layouts.
The contacts are fabricated from bronze and plated with gold to provide exceptional conductivity and resistance to corrosion. The contact spring system is engineered to prevent fretting corrosion by maintaining a gas-tight connection, ensuring long-term reliability even under vibration and thermal expansion stresses.
It has a surface mount termination type with a durable polyester housing and a straight orientation suitable for various PCB mounting designs. The connector system supports board-to-board interconnections with an operational voltage of 100V and operating temperature range from -40°C to 105°C.
Compact 1.27 mm pitch, 20 contacts in 2 rows for high-density PCB mounting. Gold plated bronze contacts resist corrosion and maintain conductivity. Contact spring system reduces fretting corrosion ensuring reliable connections.
Solder termination with polyester housing for surface mounting. Polarized to prevent mismating during assembly processes. Suitable for industrial control units, production equipment, audio devices, and communication systems.
Manufactured in Germany for consistent quality and performance.
This connector is ideal for applications such as production and material handling equipment, robots and motors, control units, central heating units, car radios, navigation systems, dashboard systems, base stations, set-top boxes, and audio equipment.
TE Connectivity Micro-MaTch Series PCB Sockets combine durability with precision engineering, making them suitable for demanding commercial, industrial, and electronic use cases. Explore our broad selection of industrial electronic connectors at EnvMart to find high-quality products built for performance and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 1.27 mm, designed for high-density mounting.
It features 20 female-on-board contacts arranged in 2 rows.
The operating voltage rating is 100V.
The contacts are made of bronze and plated with gold for excellent conductivity and corrosion resistance.
It operates within a temperature range of -40°C to 105°C.
This model has a solder termination type.
The housing material is polyester, suitable for surface mounting.
The orientation of this connector is straight.
It is suitable for board-to-board interconnections in industrial electronics applications, including control units and audio devices.
Yes, it features a polarized design to prevent mismating during assembly processes.
This connector is manufactured in Germany.
It is designed for board-to-board connections.
