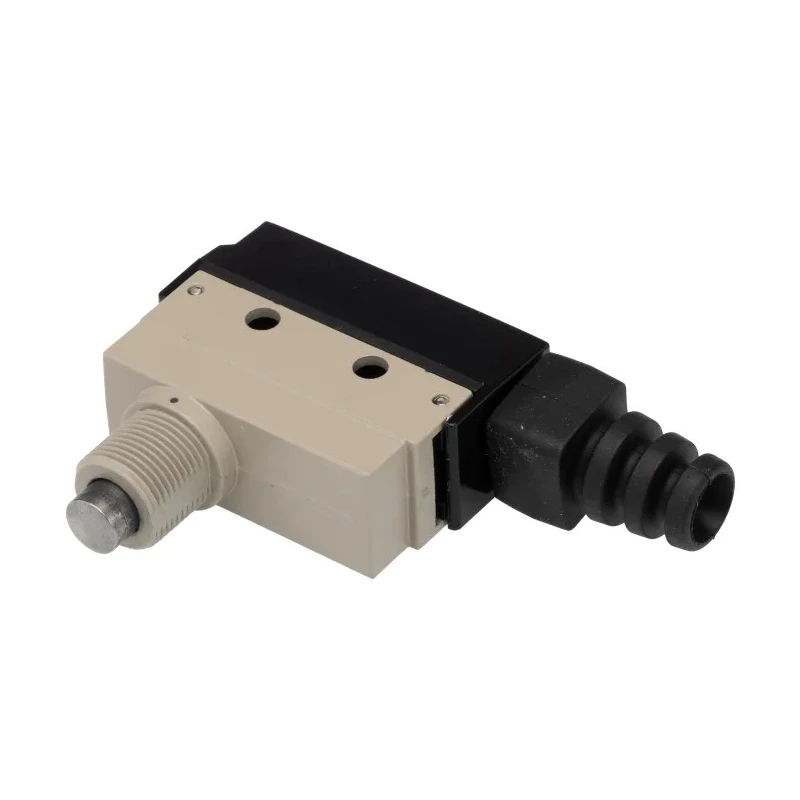

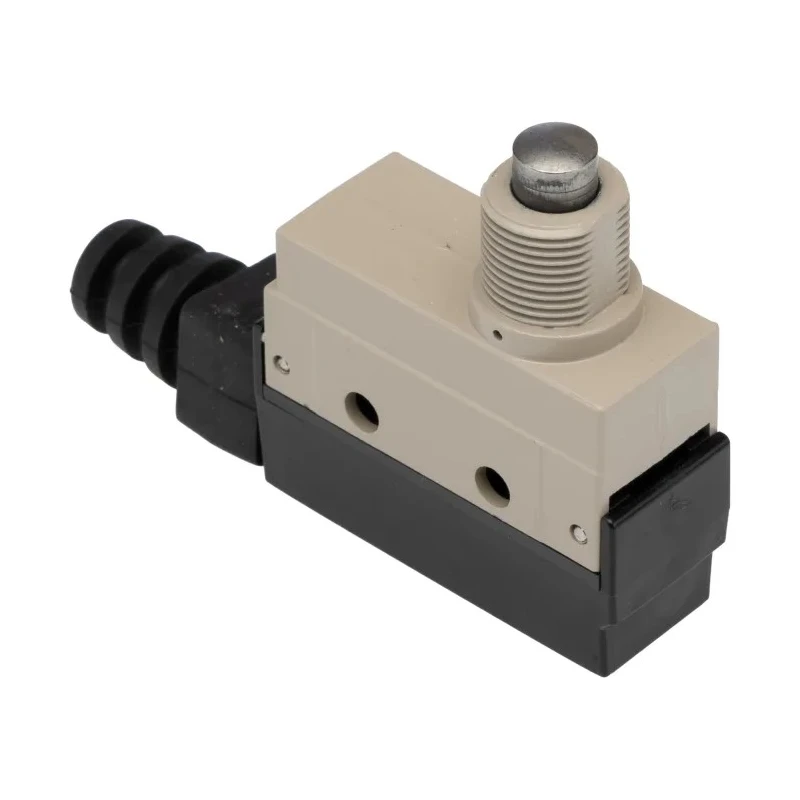

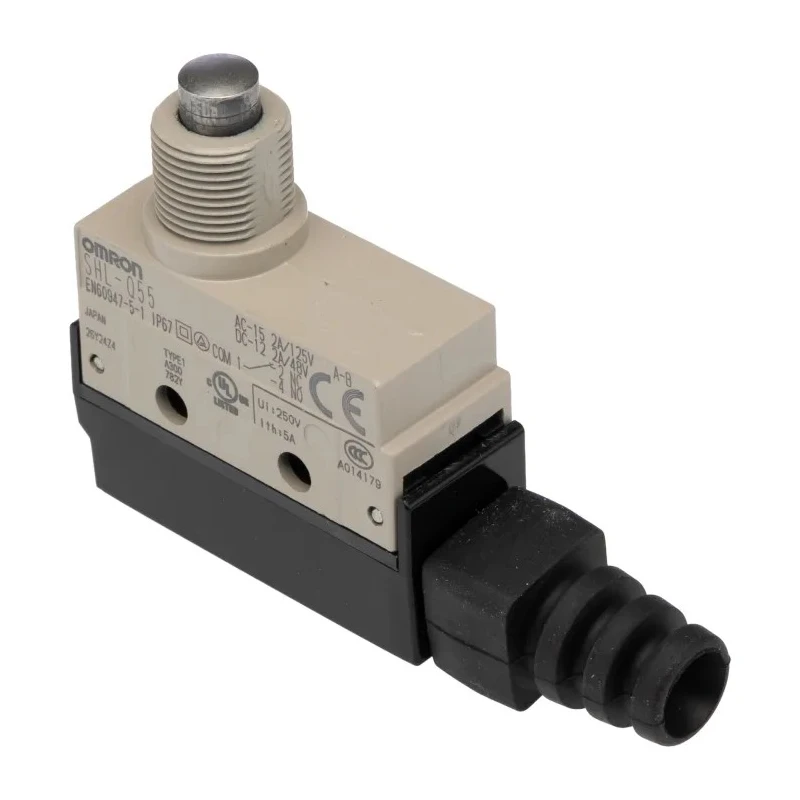

Omron SHL Series Plunger Limit Switch SPDT Metal Housing IP67 Rated 250V AC 2A

Omron SHL-Q55 plunger limit switch is a high-performance device designed for reliable and versatile operation in demanding industrial environments. This limit switch features a plunger actuator type with a Single Pole Double Throw (SPDT) contact configuration and snap action mechanism for instantaneous and accurate switching.

The device is housed in a durable metal enclosure with an IP67 rating, making it resistant to dust ingress and water immersion, suitable for harsh environmental conditions encountered in manufacturing, automation, and conveyor systems. It supports a maximum switching current of 2A at 250V AC and operates efficiently within a temperature range of -10°C to 80°C.

Its compact dimensions of 73.5mm length, 35.9mm width, and 17.5mm depth facilitate space-saving installations. The limit switch is designed to achieve a mechanical life of 10 million operations, underscoring its robustness for continuous industrial use.

Installation is facilitated by a side mounting orientation and reliable screw terminals for electrical connectivity. The product meets a wide array of certifications including UL, RoHS, IEC, EN, CSA, and CCC, ensuring compliance with international quality and safety standards.

Key applications for the Omron SHL-Q55 include conveyor systems for precise positioning, automation machinery requiring reliable limit detection, and safety interlock systems in electrical control environments. Its snap action design minimizes contact wear and provides operational accuracy, enhancing equipment safety and longevity.

The plunger actuator design offers precise actuation response. Single Pole Double Throw (SPDT) configuration supports versatile circuit applications. IP67 metal housing guarantees protection against dust and short-term water immersion.

Snap action contacts reduce mechanical wear and provide fast switching. Rated for 2A current capacity at 250V AC for robust electrical handling. Wide operational temperature range of -10°C to 80°C suits diverse industrial settings.

Compact size with 73.5mm length, 35.9mm width, and 17.5mm depth to fit limited spaces. Side mounting and screw terminals facilitate straightforward installation. Certified to UL, RoHS, IEC, EN, CSA, and CCC standards for global compliance.
