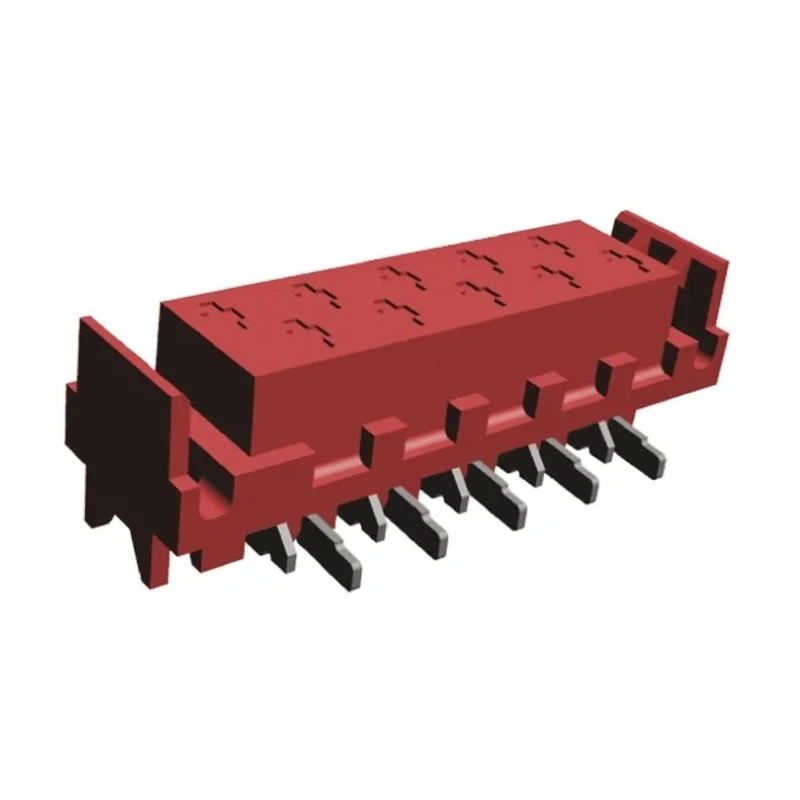

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch Solder 1-338069-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The compact design saves space on the PCB layout.
- Contact springs ensure a gas-tight connection preventing fretting corrosion.
- Polarized to avoid mismating during connection.
- Contacts are tin plated bronze for durability and conductivity.
- Suitable for operating temperatures from -40°C to 125°C.
- Secure mounting with surface mount technology and solder termination.
- Supports a current rating of 1.5A and voltage up to 100V.
- Ideal for applications in production equipment, robots, control units, and audio devices.
Product Description
TE Connectivity 1-338069-0 Micro-MaTch Series Straight Surface PCB Socket is a 10-contact, 2-row female on-board connector designed for board-to-board interconnections with a 2.54 mm pitch and solder termination.
This Micro-MaTch socket features a compact, space-saving design and a contact spring system that provides a gas-tight connection resistant to fretting corrosion, ensuring reliable electrical connectivity in demanding industrial environments.
Polarized design prevents mismating, and versions with locking latches offer secure mating connections, making it suitable for industrial, manufacturing, automotive, and audio equipment applications.
Constructed with a liquid crystal polymer housing and bronze contacts plated with tin, it operates over a temperature range from -40°C to 125°C, supporting 1.5A current at 100V voltage.
Typical uses include production and material handling equipment, robots, motors, control units, heating units, navigation systems, dashboard systems, base stations, set-top boxes, and audio equipment.
The compact design saves space on the PCB layout. Contact springs ensure a gas-tight connection preventing fretting corrosion. Polarized to avoid mismating during connection. Contacts are tin plated bronze for durability and conductivity.
Suitable for operating temperatures from -40°C to 125°C. Secure mounting with surface mount technology and solder termination. Supports a current rating of 1.5A and voltage up to 100V. Ideal for applications in production equipment, robots, control units, and audio devices.
Locking latch versions available for enhanced connection security. Explore EnvMart's wide range of PCB connectors and related components to find the optimal solutions for your electronic assembly and industrial automation needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5A and a voltage rating of up to 100V.
It features a 2.54 mm pitch and has 10 contacts arranged in 2 rows.
The housing is made of liquid crystal polymer, and the contacts are bronze plated with tin.
It operates within a temperature range of -40°C to 125°C.
This unit is designed for surface mounting with solder termination.
It is a female-on-board connector designed for board-to-board interconnections.
Yes, the design is polarized to avoid mismating during connection.
It is ideal for use in production equipment, robots, control units, and audio devices.
Yes, versions with locking latches are available for enhanced connection security.
The connector orientation is straight.
The contact spring system ensures a gas-tight connection, preventing fretting corrosion and ensuring reliable electrical connectivity.
This PCB socket is manufactured in India.
