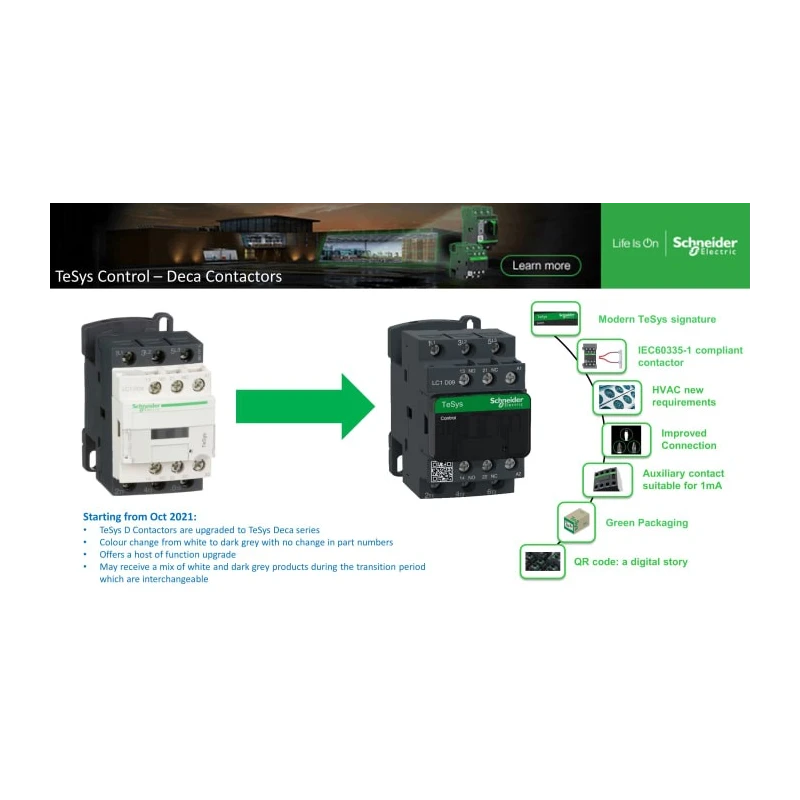

Schneider Electric TeSys D 4-Pole Contactor, 25A 690V AC/DC, 24V DC Coil LC1D128BL
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Resistive Load |
| Length | 85mm |
| Model | LC1D128BL |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V DC coil to enable efficient control.
- Features 4 poles with normal state configuration of 2 NO and 2 NC contacts.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Designed for DIN rail mounting with IP20 finger-safe screw terminals.
- Operates reliably between -40°C and 60°C ambient temperature ranges.
- Compact dimensions of 85mm length, 45mm width, and 99mm depth.
- Conforms to EN 60947-4-1 standard ensuring high safety and quality.
- Designed for disassembly supporting sustainability initiatives.
Product Description
Schneider Electric LC1D128BL TeSys D 4-Pole Contactor is engineered for automation control applications requiring high reliability and long mechanical and electrical life. It supports a coil voltage of 24V DC and handles contact currents up to 25A at 690V AC/DC, making it suitable for control of resistive loads and motor starters in industrial, HVAC, manufacturing, and commercial setups.
This contactor features 4 poles with a normal state arrangement of 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, augmented by 2 auxiliary contacts configured as 1 NO and 1 NC to facilitate auxiliary functions.
Designed for easy integration, the device mounts on standard DIN rails or with screws, equipped with IP20 finger-safe screw terminals that have both North American and International markings for versatile wiring compatibility.
Operating temperature ranges from -40°C to 60°C ensure suitability for varied industrial environments. The compact footprint of 85mm length, 45mm width, and 99mm depth allows efficient panel space utilization.
The contactor complies with EN 60947-4-1 standard, guaranteeing adherence to safety and performance criteria. It incorporates advanced features including a bidirectional peak-limiting diode to protect coil circuits from transient voltage spikes.
The TeSys D range supports quick and simple setup, maintaining international standards and enhanced resistance to shock and vibration. Its design also emphasizes sustainability with claimed disassembly capabilities.
Typical applications include motor control for lifts, conveyors, compressors, and pumps, as well as resistive load switching in heating and distribution systems. Equipped with a 24V DC coil to enable efficient control. Features 4 poles with normal state configuration of 2 NO and 2 NC contacts.
Includes 2 auxiliary contacts with 1 NO and 1 NC configuration. Designed for DIN rail mounting with IP20 finger-safe screw terminals. Operates reliably between -40°C and 60°C ambient temperature ranges. Compact dimensions of 85mm length, 45mm width, and 99mm depth.
Conforms to EN 60947-4-1 standard ensuring high safety and quality. Designed for disassembly supporting sustainability initiatives. Suitable for motor starters and resistive load applications. Incorporates bidirectional peak limiting diode suppression for coil protection.
Mountable with screws or on DIN rails for flexible installation. Explore more high-quality Contactors and control gear accessories at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This contactor can handle a maximum contact current of 25A.
It operates with a coil voltage of 24V DC.
The contactor features a normal state configuration of 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
The dimensions are 85mm in length, 45mm in width, and 99mm in depth.
It operates reliably between -40°C and 60°C.
This model is designed for DIN rail mounting and can also be mounted with screws.
It includes 2 auxiliary contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC).
It conforms to the EN 60947-4-1 standard, ensuring adherence to safety and performance criteria.
It is suitable for resistive loads and motor control applications.
It features IP20 finger-safe screw terminals with both North American and International markings.
The contact voltage rating is 690V AC/DC.
It is designed for disassembly, supporting sustainability initiatives.
