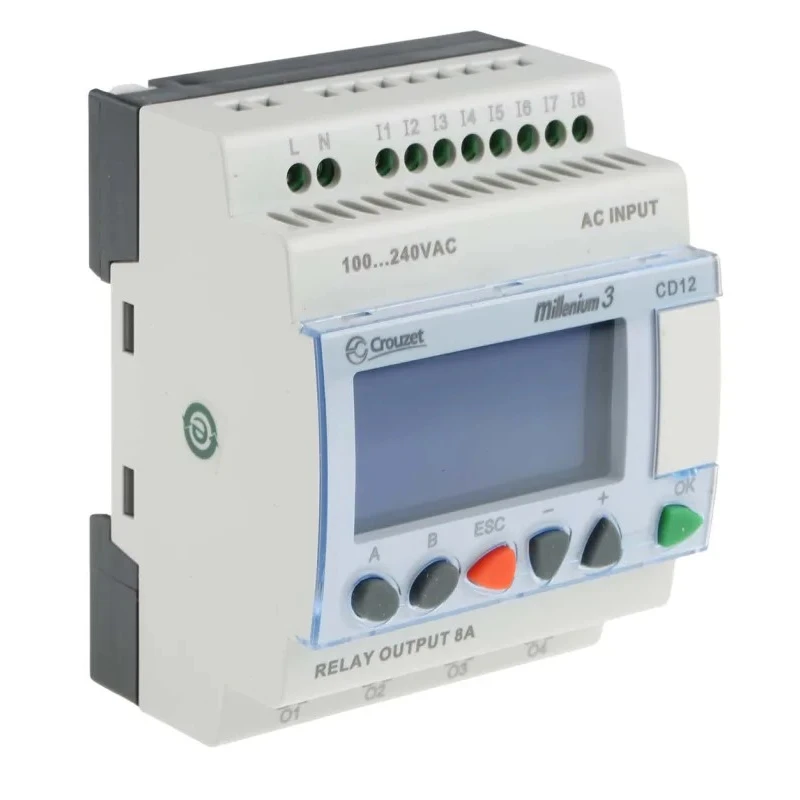

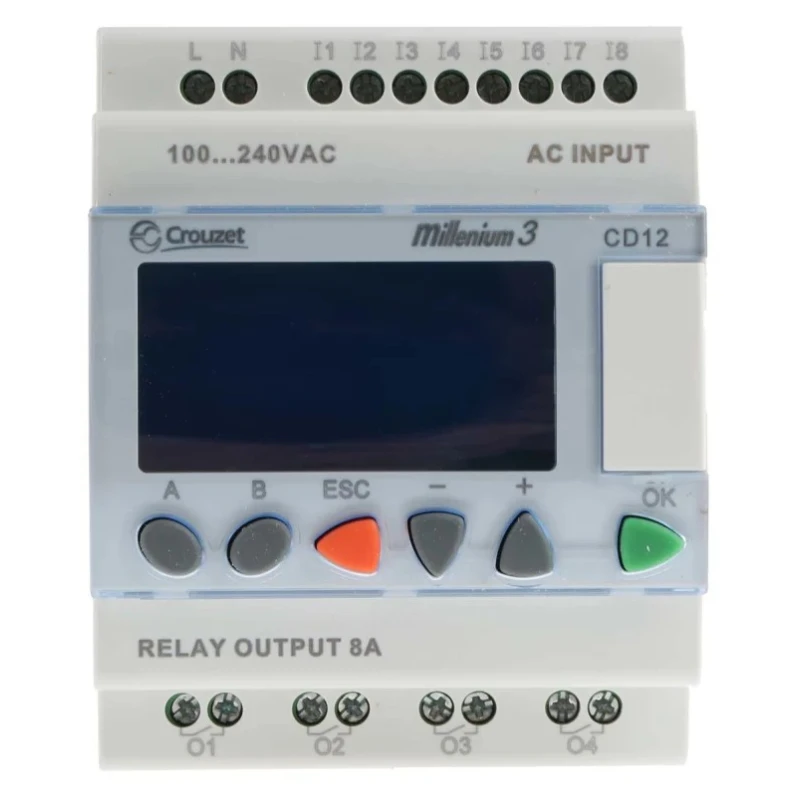

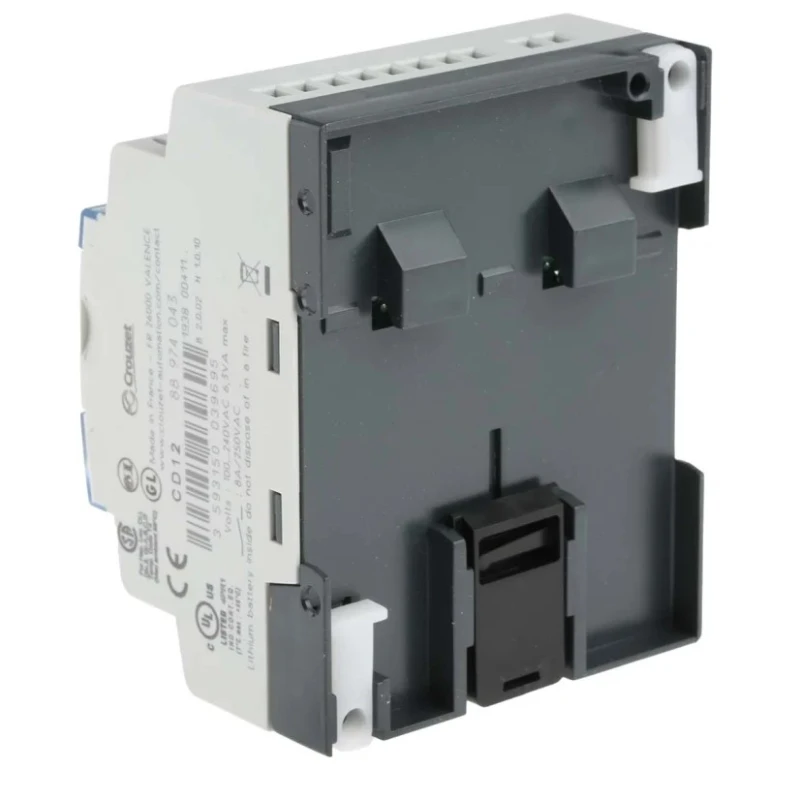

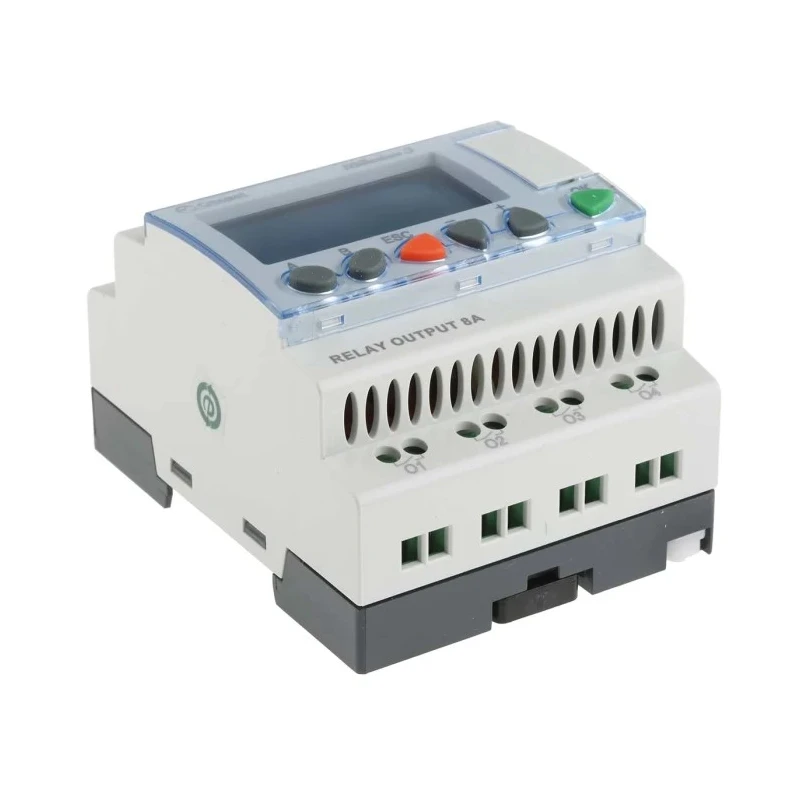

Crouzet Millenium 3 Series Logic Module 8-Input Digital Input 4 Relay Outputs 230V AC 8A Output Current 88974043
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 100mm |
| Model | 88974043 |
| Depth | 68mm |
| Width | 71.2mm |
| Mount Type | DIN Rail |
| Number of inputs | 8 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB port communication |
| Number of outputs | 4 |
| Program Capacity | 368bit |
| Supply Voltage | 230V ac |
| Number of Communication Ports | 2 |
| Communication Port Type | Serial, USB |
| Programming Language Used | Ladder Logic |
Key Features
- Equipped with 8 digital inputs and 4 relay outputs rated for 8A contact current.
- Operates on 230V AC power supply with DIN rail mounting.
- Features a high capacity program memory of 368 bits for complex automation tasks.
- Includes a blue LCD display with 4 lines of 18 characters and configurable backlighting.
- Supports ladder logic programming and includes USB and serial communication ports.
- Designed to operate in temperatures from -20°C to 55°C with battery backup for program retention.
- IEC/EN 61000 series compliant for electromagnetic compatibility and IEC/EN 61131-2 standards.
- Compact dimensions of 100mm length, 71.2mm width, and 68mm depth.
Product Description
Crouzet 88974043 Millenium 3 Series Logic Module is a state-of-the-art compact controller optimized for industrial automation systems, providing reliable control with 8 digital inputs and 4 relay outputs rated at 8A each. Operating at 230V AC, this DIN rail mounted device supports diverse automation needs with a substantial program capacity of 368 bits and an intuitive blue LCD display offering 4 lines of 18 characters with backlighting for enhanced visibility.
The module supports ladder logic programming and includes USB and serial communication ports for versatile connectivity. Its operating temperature range from -20°C to 55°C, combined with battery backup, ensures continuity and reliability in industrial environments.
Built to meet IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4, and IEC/EN 61131-2 standards, this Logic Module ensures high electromagnetic compatibility and durability.
Compact and easy to install, the device has dimensions of 100mm length, 71.2mm width, and 68mm depth and uses screw termination methods. Typical applications include automatic washing equipment, agricultural machinery control, air conditioning management, and heating systems integration.
8 digital inputs with 4 relay outputs rated at 8A contact current each. 230V AC supply with DIN rail mounting and screw termination. 368-bit program capacity for complex automation sequences. Includes a 4-line, 18-character blue LCD display with configurable backlighting.
Supports ladder logic programming with serial and USB communication ports. Battery backup ensures program retention during power interruptions. Compliant with IEC/EN 61000 and IEC/EN 61131-2 standards for EMC and industrial compatibility.
Operating temperature range of -20°C to +55°C for versatile environmental use. Compact dimensions: Length 100mm, Width 71.2mm, Depth 68mm.
This module is designed for industrial automation, laboratory applications, HVAC control, manufacturing systems, water treatment, agricultural equipment, and commercial automation solutions. Discover the range of Crouzet industrial controllers and automation modules at EnvMart to enhance your control system capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
Each of the 4 relay outputs is rated for 8A contact current.
It operates on a supply voltage of 230V AC.
This unit is equipped with 8 digital inputs.
It has a program capacity of 368 bits for complex automation tasks.
The dimensions are 100mm in length, 71.2mm in width, and 68mm in depth.
It can operate in temperatures ranging from -20°C to 55°C.
This model includes USB and serial communication ports.
It supports ladder logic programming.
It is designed for DIN rail mounting.
It complies with IEC/EN 61000 series and IEC/EN 61131-2 standards for electromagnetic compatibility.
It is suitable for applications such as automatic washing equipment, agricultural machinery control, HVAC management, and heating systems integration.
This unit provides 4 relay outputs.
