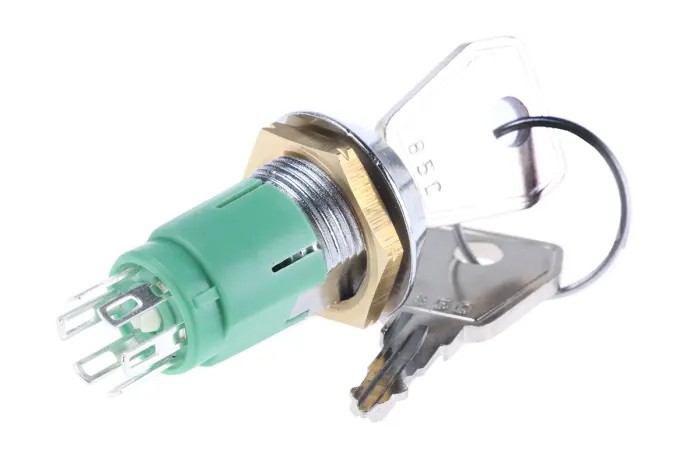

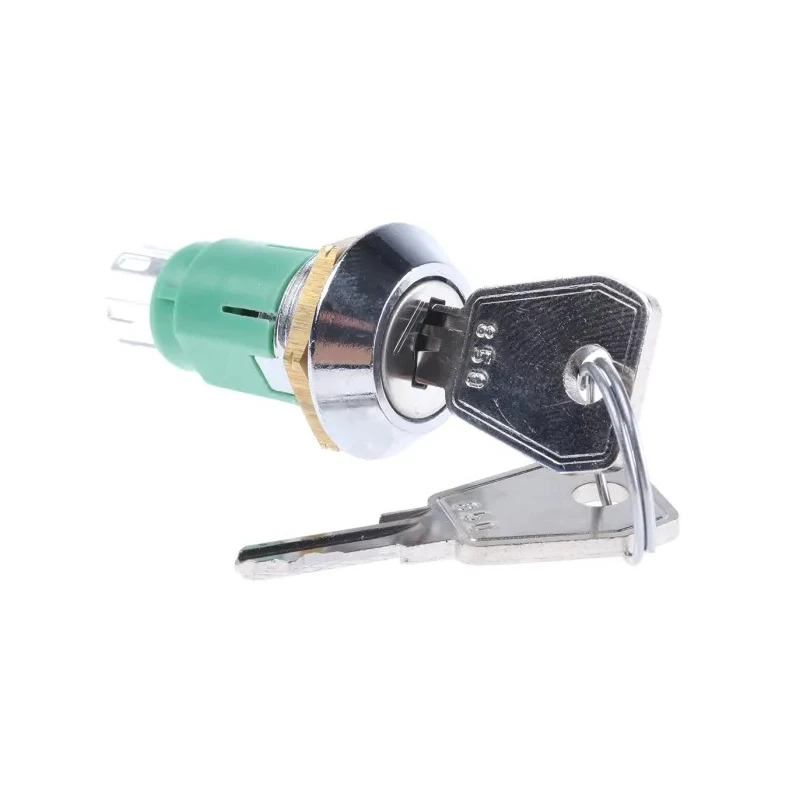

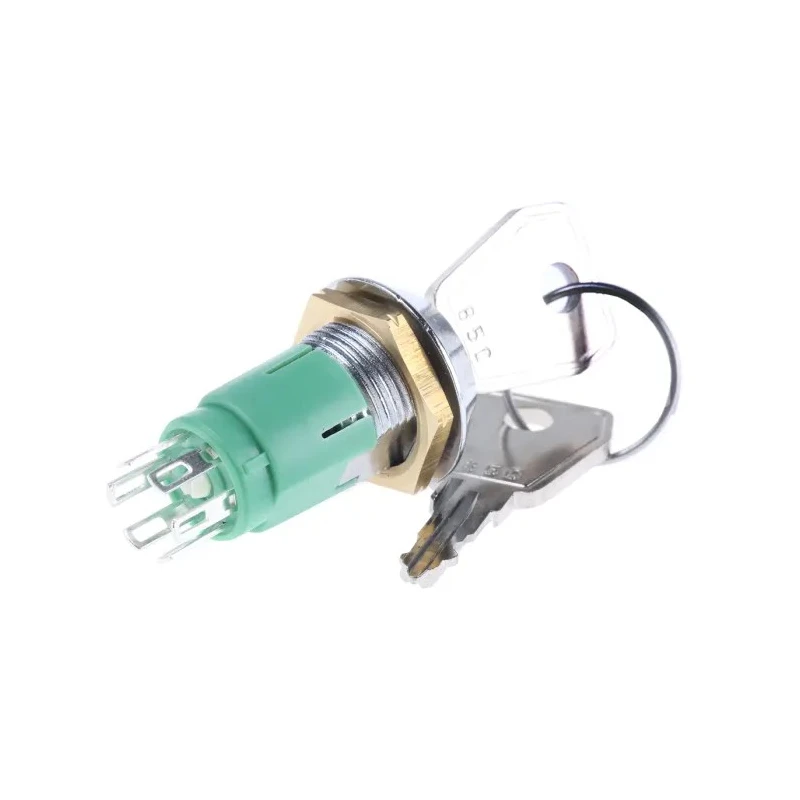

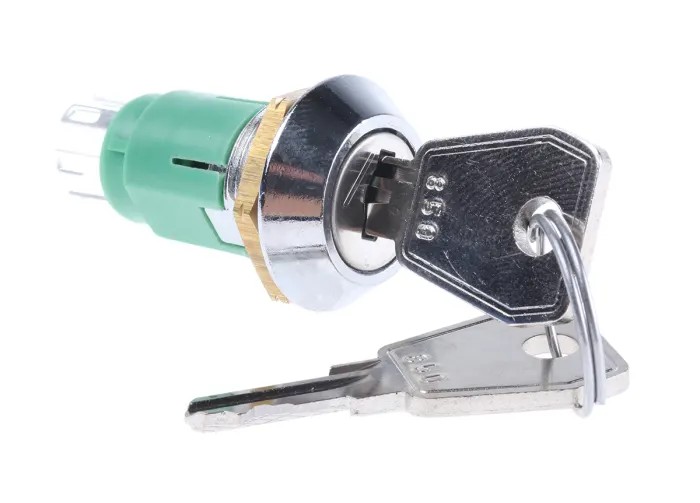

Lorlin High Retention DPDT Key Switch, 1A, 2-Way Common-Key, Fibreglass Reinforced Polyamide, 24V AC/DC HRL-5-M-S-2-RS

Free Delivery in India | Lowest Global Shipping Charges

Lorlin High Retention DPDT Key Switch, 1A, 2-Way Common-Key, Fibreglass Reinforced Polyamide, 24V AC/DC HRL-5-M-S-2-RS

Name: Lorlin High Retention DPDT Key Switch, 1A, 2-Way Common-Key, Fibreglass Reinforced Polyamide, 24V AC/DC HRL-5-M-S-2-RS
Brand: Lorlin
SKU: 223962
Price: 1759.53 INR
Availability: InStock



Category Key Switch Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	HRL-5-M-S-2-RS
Housing Material	Fibreglass Reinforced Polyamide
Contact Material	Silver Plated Brass
Series	HRL
Maximum Operating Temperature	65°C
Contact Configuration	DPDT
Number of Positions	2
Minimum Operating Temperature	-20°C
Terminal type	Solder
Standards/Approvals	RoHS
Contact DC Voltage	24V dc
Switch Contact Current	1A
Mechanical Life	10000Cycles
Contact AC Voltage	24V ac
Key Type	Common
Bezel Shape	Tapered
Key Index Angle	60°
Key switch,DPDT,high retention, same keyBrand	Lorlin

Key Features

The switch features a fibreglass reinforced polyamide housing for durability.
It has a tapered bezel design suitable for panel mounting with a 16mm cutout.
Key trapping mechanism allows the key to be removable only in the 12 o'clock position.
Supplied with 2 nickel plated mild steel keys with double entry capability.
Operates within a temperature range of -20°C to 65°C with a mechanical life of 10,000 cycles.
The contacts are silver plated brass ensuring reliable electrical conduction.
Terminal type is solder, enabling secure connections in circuit assemblies.
Key index angle is 60 degrees with high retention making it ideal for vehicle and portable applications.

Product Description

Lorlin HRL-5-M-S-2-RS is a high retention miniature Key Switch featuring a double pole double throw (DPDT) contact configuration rated for 1A contact current at 24V AC/DC. Its fibreglass reinforced polyamide housing ensures robustness and durability for industrial electrical and automation applications.

The switch is designed for 16mm panel cut out with a tapered bezel that facilitates mounting and protection. It has a trapped key feature, allowing the key to be removed only at the 12 o'clock position, preventing accidental removal in undesired states.

Supplied with 2 nickel plated mild steel keys with double entry, the keys can be inserted either way, enhancing ease of use. Single pole versions of the switch have 90 degrees total movement and indexing, while double pole versions like this have 60 degrees.

The contact material is silver plated brass ensuring excellent electrical conductivity and long-term reliability. The terminal connections are of solder type, allowing for secure and reliable wiring in equipment.

Meant for applications that require security, high retention, and durability, this switch operates between -20°C to 65°C and has a mechanical life rated at 10,000 cycles. The high retention mechanism makes it suitable for portable devices and vehicle installations.

This switch series is RoHS compliant and manufactured in the United Kingdom, meeting environmental and quality standards. The housing material is fibreglass reinforced polyamide providing durability and heat resistance. The key trapping ensures key removal only at the designated position enhancing safety.

The tapered bezel design supports secure panel mounting and neat appearance. The DPDT configuration offers flexible two-position switching control. Silver plated brass contacts provide low resistance and corrosion resistance.

The 24V AC/DC voltage rating supports diverse electrical systems. Mechanical life of 10,000 cycles assures long-term operational reliability. The supplied nickel plated mild steel keys enable durable and reliable key operation.

Suitable for electrical, automation, vehicle, and industrial applications requiring secure and reliable key-operated switching. Explore more Lorlin switches and electrical components on EnvMart for your automation needs.
