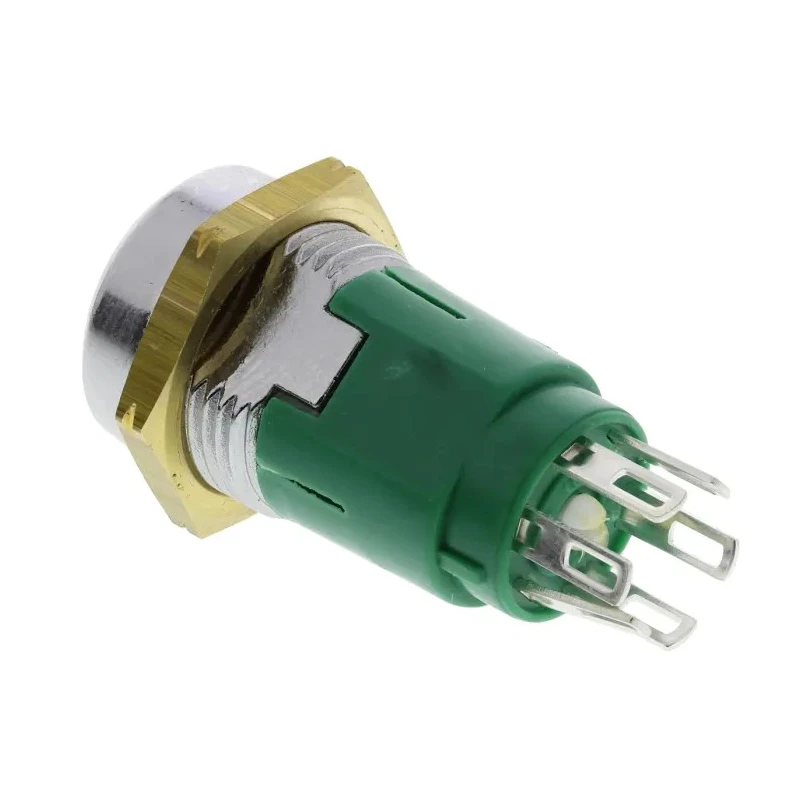

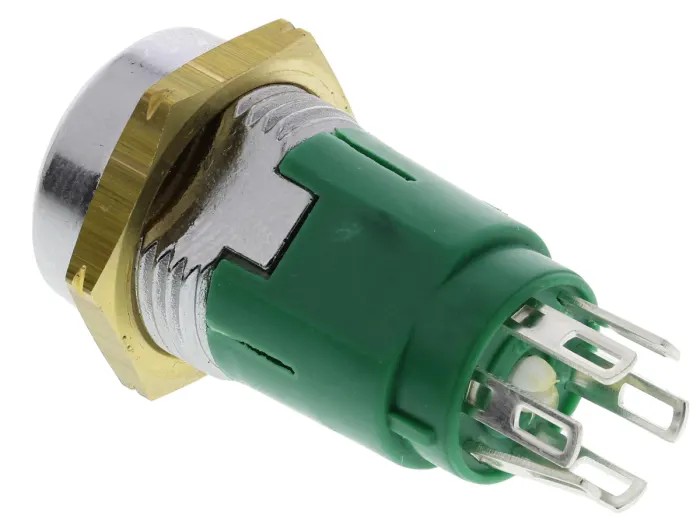

Lorlin Key Switch DPDT 1A 2-Way Random-Key, Momentary Operation, 24V DC IRL-5-K-D-2-RS

Lorlin IRL-5-K-D-2-RS key switch is a high-quality DPDT (double pole double throw) 1A 2-way random-key switch designed for secure electrical switching applications.

This momentary operation key switch is part of the IRL series, featuring a 16mm panel cut-out and a polyamide housing with a parallel bezel. It offers two positions with spring return functionality, ensuring the switch returns to its original state after actuation.

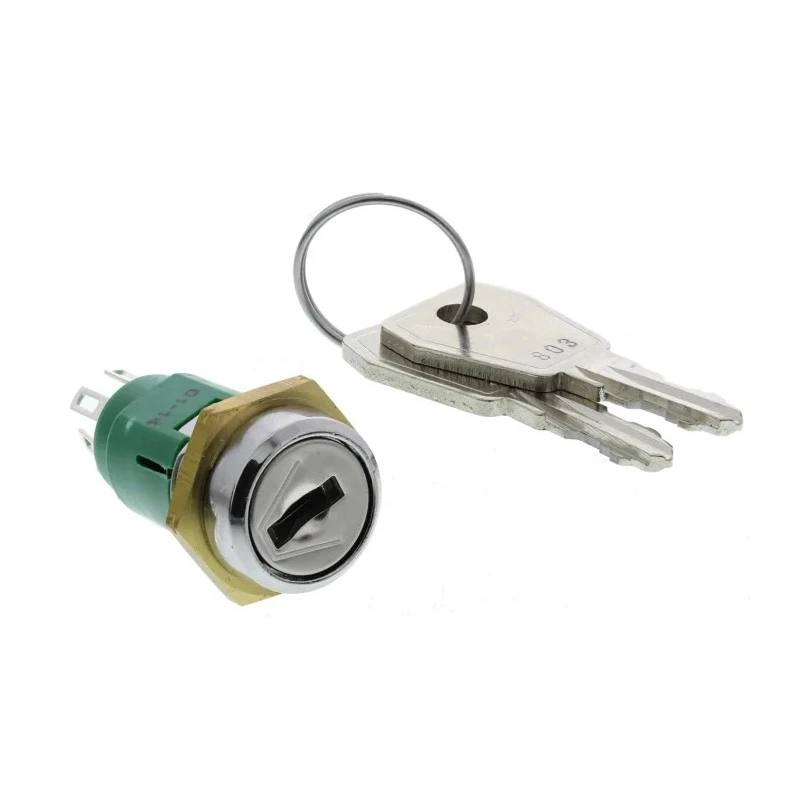

The switch includes a trapped key removal system, with keys removable in the 12 o'clock position to enhance security measures. Two nickel-plated mild steel keys are supplied, allowing double entry insertion either way up, facilitating ease of use.

The contact system uses silver-plated brass material, supporting 1A contact current and suitable for 24V dc operation, providing reliable and efficient electrical conductivity. The solder terminal type ensures easy and secure connections in the assembly process.

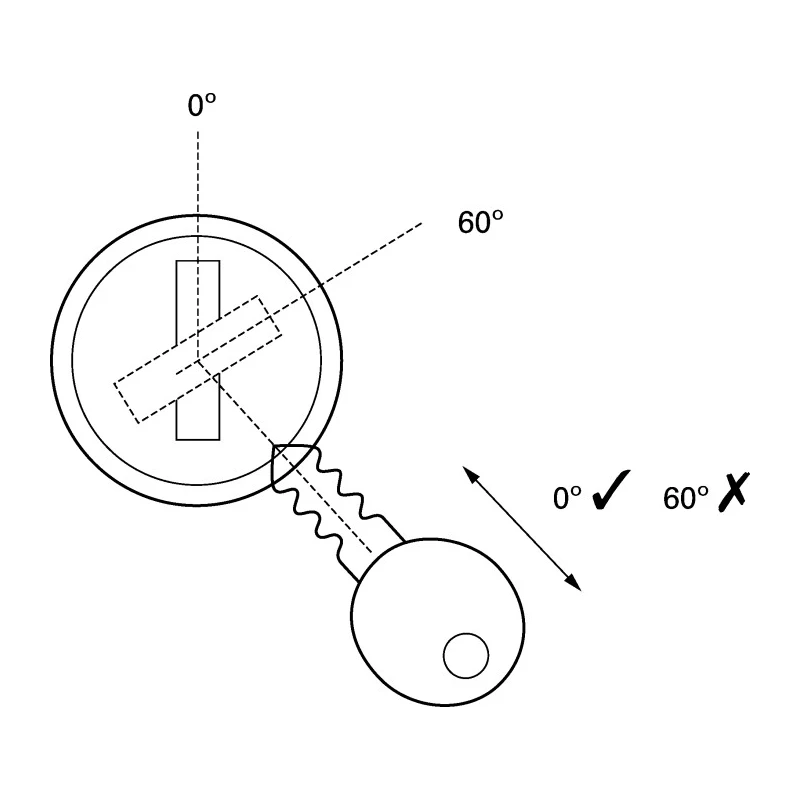

Designed for durability, the key switch has a mechanical life of 10,000 cycles and operates reliably in temperatures ranging from -20°C to 65°C. The 60° key index angle provides ergonomic access during operation. It complies with RoHS standards, affirming environmental and safety compliance.

Manufactured in the United Kingdom, this Key Switch is ideal for applications in electrical installations, automation systems, and industrial control panels where secure switching and momentary control are required.

The switch features two positions with momentary operation for precise control. Constructed with a polyamide housing and a parallel bezel shape for durability. Operates at 1 ampere contact current and a contact DC voltage of 24V dc.

Includes a trapped key mechanism with random key type for security. Silver plated brass contact material ensures reliable conductivity. The terminal type is solder, compatible with conventional PCB mounting. Designed with a 60° key index angle for user convenience.

Mechanical life expectancy is rated at 10,000 cycles for longevity. Operates efficiently within -20°C to 65°C temperature range. Manufactured in the United Kingdom, conforming to RoHS standards. Explore the wide range of Lorlin electrical switch products on EnvMart for industrial and commercial automation needs.
