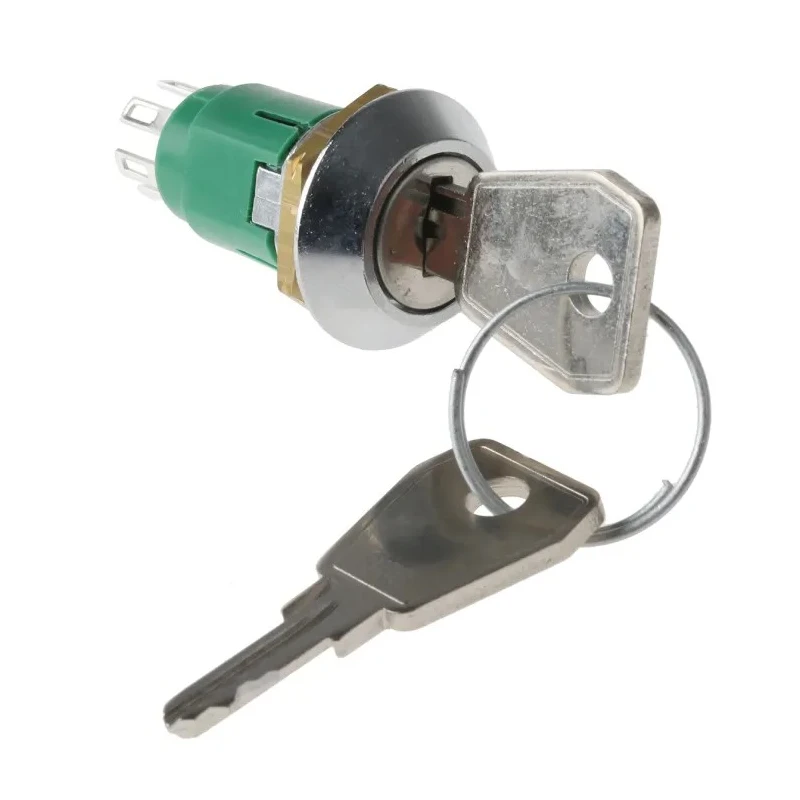

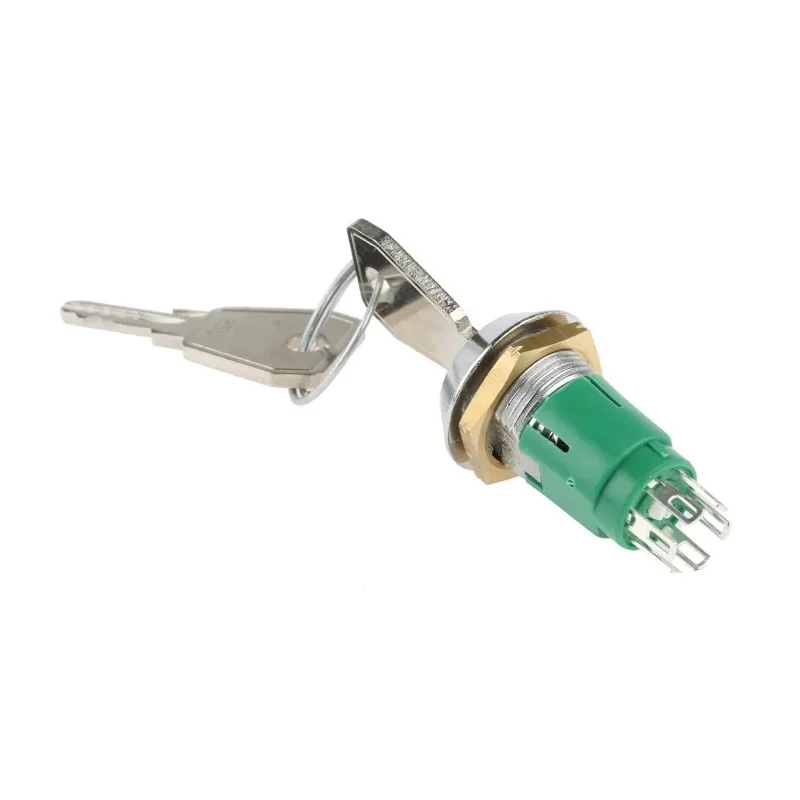

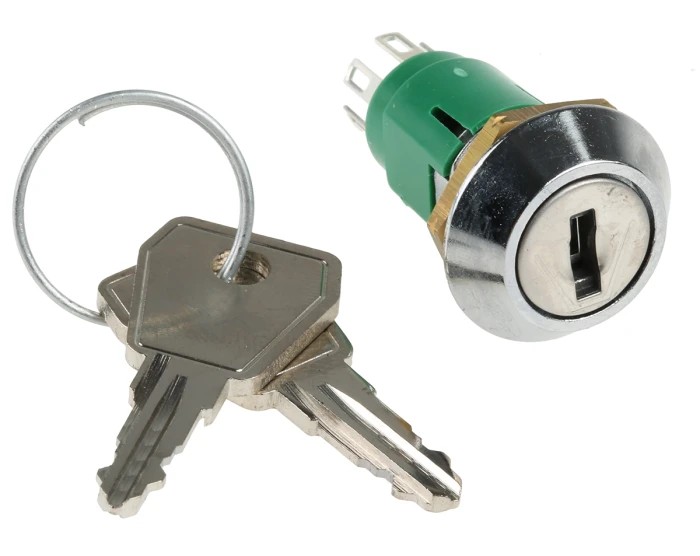

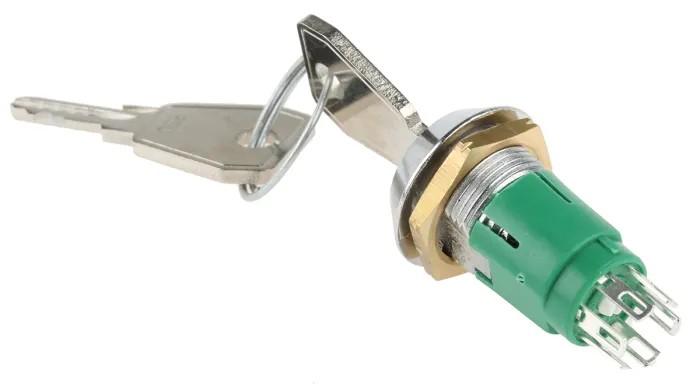

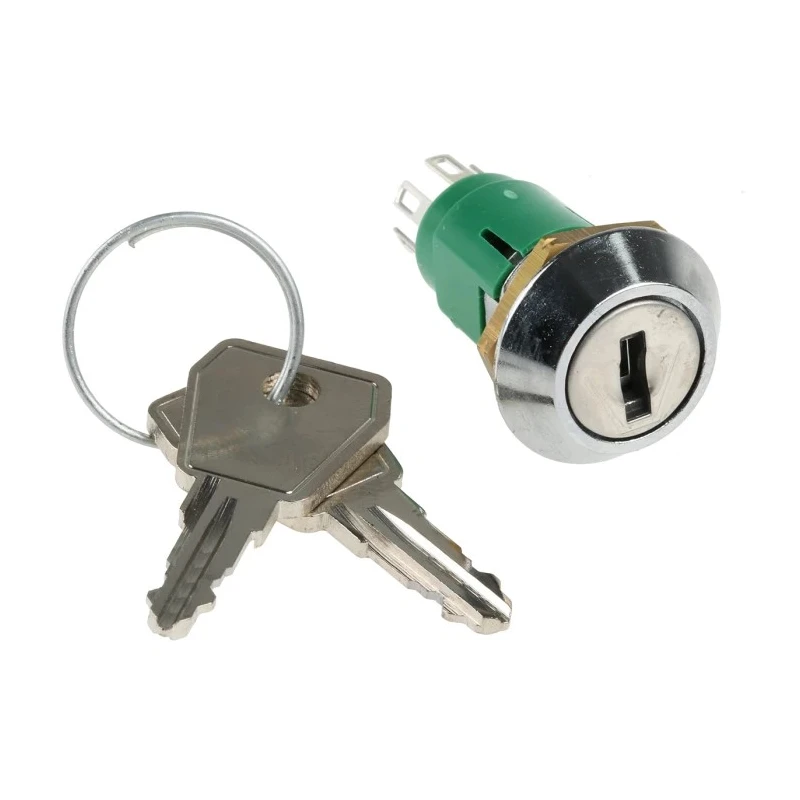

Lorlin Key Switch DPDT 1A 2-Way Common-Key Polyamide Housing Tapered Bezel IRL-5-M-S-2-RS

The Lorlin IRL-5-M-S-2-RS key switch is a high-quality double pole double throw (DPDT) switch designed for control panels, lighting operations, and automation systems. It operates momentarily with two positions and supports a contact current of 1 ampere at 24V DC, making it suitable for various electrical control applications.

This switch features a durable polyamide housing with a tapered bezel that offers aesthetic appeal and robustness. Its contact material is silver plated brass, ensuring excellent electrical conductivity and resistance to wear.

The switch includes 2 nickel-plated mild steel keys and offers key trapping with a common key type, enhancing security against unauthorized operation. The mechanical life is rated for 10,000 cycles, suitable for prolonged industrial use.

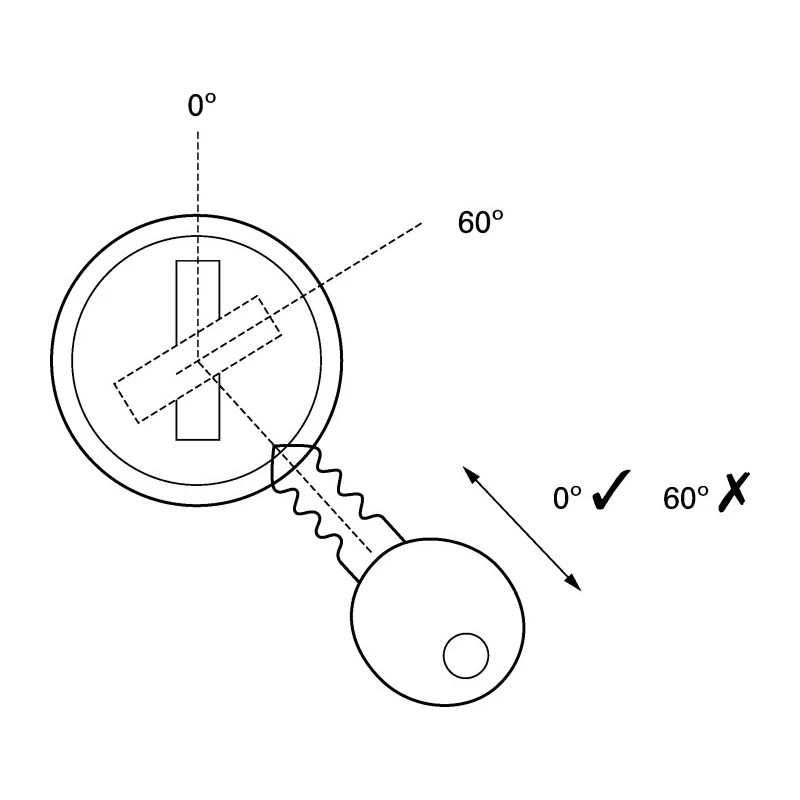

The operating temperature range from -20°C to 65°C allows for reliable performance in different ambient conditions. The 60° key index angle provides ergonomic and precise operation, while the solder terminal type simplifies installation.

The switch features momentary operation with 2 positions. Key trapping is enabled with common key type for security. Contact current rating is 1A at 24V DC for reliable electrical performance. Housing material is polyamide, offering strength and durability.

Tapered bezel shape for secure fitting and appearance. Contact is silver plated brass ensuring long-term conductivity. Mechanical life expectancy of 10,000 cycles supports long service life. Operating temperature suitable for diverse industrial environments.

Provided with 2 nickel-plated mild steel keys for operation. Solder terminal type facilitates dependable connectivity. Key index angle is 60 degrees for comfortable usage.

This key switch is extensively used in industrial, electrical, automation, and lighting control applications, offering safety and reliability. It is manufactured in the United Kingdom with compliance to RoHS standards, ensuring an environmentally friendly and high-quality product.
