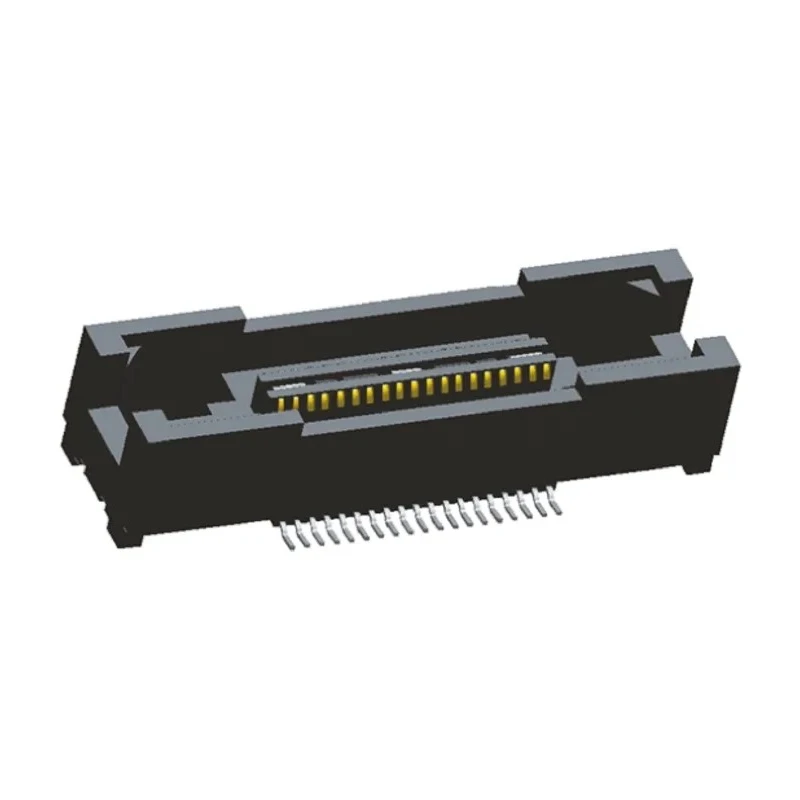

TE Connectivity MICTOR Series Straight Through Hole Surface PCB Socket 38-Contact 2 Row 0.64mm Pitch 5767096-8
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 11.5A |
| Mount Type | Through Hole, Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | MICTOR |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 0.64mm |
| Contact Plating | Gold |
| Number of Contacts | 38 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Features a robust liquid crystal polymer housing for durability.
- Operates reliably between -65°C to 125°C temperature range.
- Supports 11.5 A current and 30 V voltage ratings.
- Utilizes gold-plated copper female contacts for optimal electrical conductivity.
- Offers a high-density microstrip design supporting speeds over 10 Gbit/s.
- Polarized design prevents mismating and ensures secure PCB retention.
- Suitable for automated assembly processes and high-speed telecommunications systems.
- Connector size accommodates 38 contacts in increments for scalable configurations.
Product Description
TE Connectivity 5767096-8 MICTOR Series Straight Through Hole Surface PCB Socket is a precision-engineered 38-contact, 2-row connector designed for high-speed board-to-board connections with a 0.64 mm pitch. Constructed with a liquid crystal polymer housing, this socket supports through-hole and surface mounting, ensuring mechanical robustness and reliability in demanding industrial environments.
Rated for 11.5 A current and 30 V voltage, it operates effectively across a wide temperature range from -65°C to 125°C, maintaining electrical integrity in varied conditions. The female copper contacts are gold plated to minimize signal loss and provide excellent corrosion resistance.
The MICTOR series is optimized for high-speed data transmission exceeding 10 Gbit/s, featuring a microstrip design with two rows of signal contacts separated by a ground plane to reduce signal interference. This connector series is especially suited for enterprise switching, mid-range servers, and storage area networks requiring dependable high-speed interconnects.
The design includes polarization features to prevent mismating and PCB retention mechanisms that secure the connection even under mechanical stress. The modular system allows configurations ranging from 38 to 266 signal lines in increments of 38, providing scalable connectivity solutions.
High-speed design supporting data transfer rates beyond 10 Gbit/s. Liquid crystal polymer housing for mechanical strength. Gold-plated copper female contacts for superior electrical performance. Wide operating temperature range from -65°C to 125°C.
Polarization and PCB retention for reliable connection. Supports automated assembly processes for manufacturing efficiency. Suitable for telecommunications, servers, and storage networking applications.
This TE Connectivity MICTOR series socket ensures high performance, durability, and signal integrity for industrial and commercial electronic assemblies requiring precise and reliable PCB interconnects. Explore similar PCB Sockets and connectors on EnvMart for your electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 11.5 A.
It operates effectively within a temperature range of -65°C to 125°C.
The socket accommodates 38 contacts in a 2-row configuration.
It features a liquid crystal polymer housing and gold-plated copper female contacts for optimal electrical conductivity.
The pitch size is 0.64 mm.
Yes, it is designed to support automated assembly processes, enhancing manufacturing efficiency.
This model supports both through-hole and surface mounting.
It supports a voltage rating of 30 V.
The connector features a polarized design to prevent mismating and ensure secure PCB retention.
It is suitable for high-speed telecommunications systems, enterprise switching, mid-range servers, and storage area networks.
The microstrip design supports high-speed data transmission exceeding 10 Gbit/s and reduces signal interference.
The country of origin for this socket is the United States.
