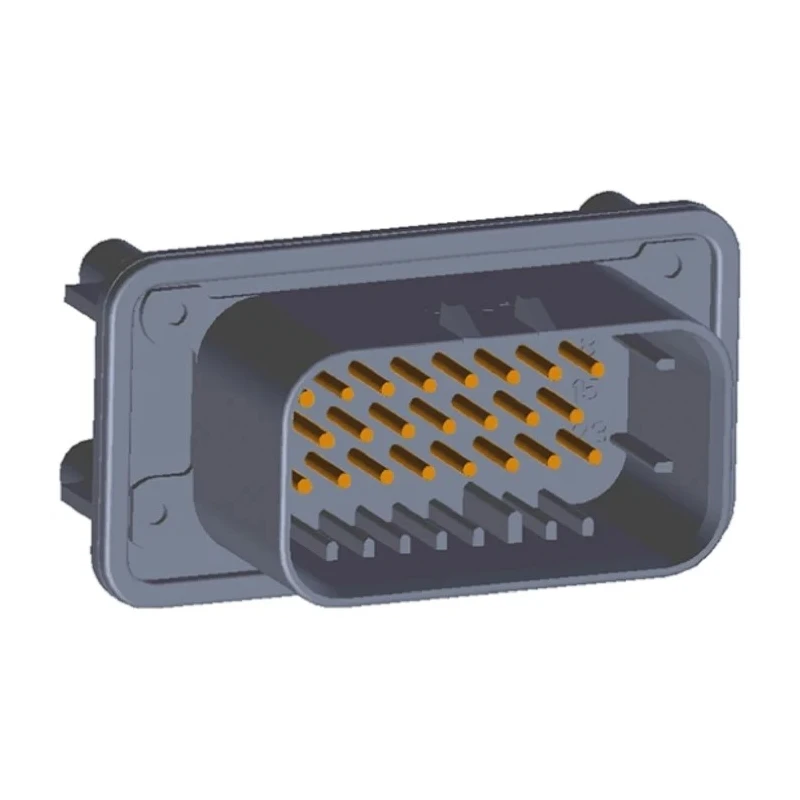

TE Connectivity Ampseal Automotive Connector Male 23 Contacts Grey Panel Mount Solder Termination 1-776228-4
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Grey |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 23 |
Key Features
- Rated for operating temperatures from -40°C to 125°C.
- IP69K sealed for dust tightness and resistance to high pressure water jets.
- Made with fibreglass reinforced polybutylene terephthalate housing for durability.
- Brass contacts plated with gold ensure reliable electrical conductivity.
- Designed with 23 contacts arranged in 3 rows for multiple connections.
- Solder termination type suitable for high vibration and shock applications.
- Ideal for automotive, off-road, construction, agricultural, and marine applications.
- Does not include any cord; suitable for panel mounting.
Product Description
TE Connectivity 1-776228-4 Ampseal Automotive Connector Male is a high-quality grey panel mount PCB connector engineered for robust automotive and industrial use. It features 23 solder termination contacts arranged in 3 rows, allowing for reliable and secure electrical connections under demanding environmental conditions.
Constructed with fibreglass reinforced polybutylene terephthalate housing, this connector offers superior ruggedness and can withstand operating temperatures ranging from -40°C to 125°C. The brass contacts are gold plated to enhance corrosion resistance and maintain excellent conductivity over time.
This connector is IP69K rated, the highest level of ingress protection, making it dust-tight and resistant to high temperature, high pressure water jets. Such properties make it ideal for use in off-road vehicles, trucks, buses, construction machinery, agricultural equipment, marine vessels, and even emergency service vehicles where exposure to harsh environments is common.
The product measures 60.8mm in width, 32.1mm in height, and 34.3mm in depth, ensuring a compact yet comprehensive connection solution. It is part of the AMPSEAL series by TE Connectivity, recognized for its durability and reliability even in high vibration and shock-prone scenarios. This male connector does not come with any cords and is designed specifically for panel mounting applications requiring solder termination.
Operating temperature range: -40°C to 125°C. IP6K9K ingress protection rating provides dust and high-pressure water resistance. Housing made from fibreglass reinforced polybutylene terephthalate for strength and heat resistance.
Gold-plated brass contacts ensure high-quality electrical performance. 23 contacts arranged in 3 rows support multiple circuits. Solder termination type facilitates secure connections under vibration. Dimensions: 60.8mm (W) x 32.1mm (H) x 34.3mm (D).
Designed for panel mounting without cord. Suitable for automotive, construction, agricultural, marine, and emergency applications. Explore EnvMart's Automotive Connector category for more products like this from TE Connectivity and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of -40°C to 125°C.
This model features 23 contacts arranged in 3 rows.
It has an IP69K rating, making it dust-tight and resistant to high-pressure water jets.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are brass with gold plating.
It uses a solder termination type, suitable for high vibration and shock applications.
The connector measures 60.8mm in width, 32.1mm in height, and 34.3mm in depth.
Yes, it is specifically designed for panel mounting applications.
It is suitable for automotive, off-road, construction, agricultural, and marine applications.
The gold plating enhances corrosion resistance and ensures reliable electrical conductivity over time.
Its IP69K rating and robust materials make it suitable for demanding environmental conditions, including exposure to dust and water.
This connector is a male type.
The country of origin for this connector is India.
