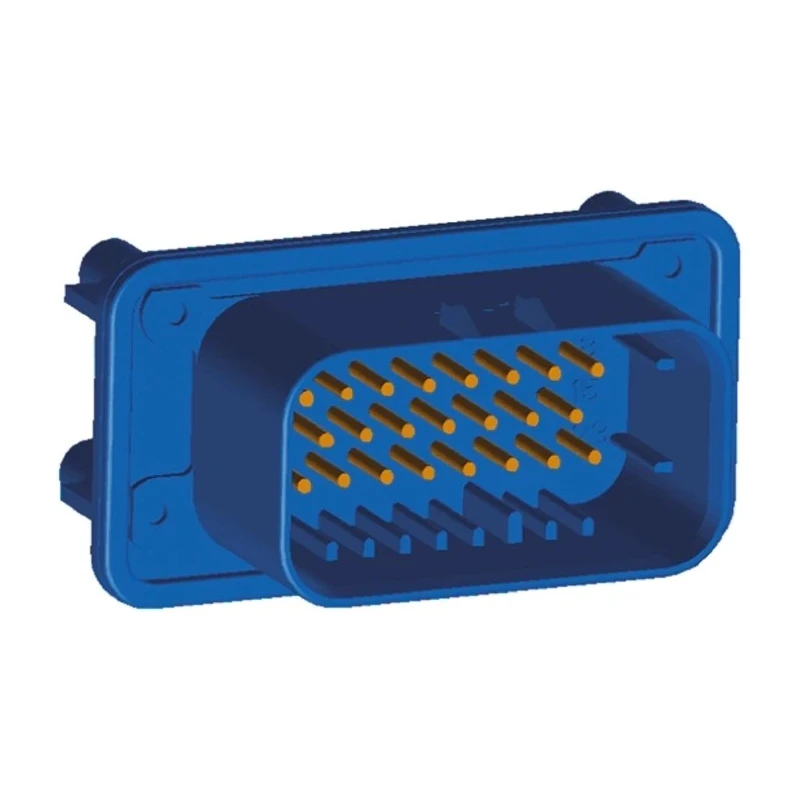

TE Connectivity Ampseal Automotive Connector Male Blue Panel Mount 23 Way Solder Termination 1-776228-5
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Blue |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 23 |
Key Features
- Operates within a temperature range of -40°C to +125°C.
- Features 23 contacts arranged in 3 rows for efficient electrical connections.
- Panel mount design with blue fibreglass reinforced polybutylene terephthalate housing.
- Brass contacts plated with gold for superior conductivity and corrosion resistance.
- IP69K rated for dust-tight protection and resistance to high-pressure, high-temperature water jets.
- Suitable for automotive applications including trucks, buses, agriculture, marine, and two-wheelers.
- Sealed with silicone rubber to withstand high vibration and shock environments.
- Supports up to 250 Volts AC with insulation resistance of at least 100 megaohms.
Product Description
TE Connectivity 1-776228-5 Ampseal Automotive Connector Male Blue Panel Mount 23 Way Solder Termination offers rugged, reliable connectivity solutions designed for demanding automotive and industrial environments. Constructed with a fibreglass reinforced polybutylene terephthalate housing and brass contacts plated with gold, this connector ensures superior durability and conductivity.
Operating temperatures range from -40°C to +125°C, making it suitable for extreme conditions. The 23 contact points arranged in 3 rows facilitate complex electrical connections, while the panel mount design allows secure installation.
This connector is sealed with silicone rubber and rated IP69K, the highest seal rating available, which guarantees complete dust protection and resistance to high-pressure and high-temperature water jets from close range. This makes the product excellent for off-road vehicles and specialized applications such as emergency services where exposure to harsh environments is common.
Its robust design also resists high vibration and shock, ensuring long-term reliability in trucks, buses, construction equipment, agriculture machinery, marine vessels, and motorcycles. The connector supports voltages up to 250 Volts AC and maintains insulation resistance of no less than 100 megaohms, providing safe and effective electrical performance.
Operates within a temperature range of -40°C to +125°C. 23 contacts in 3 rows for complex connections. Panel mount style with fibreglass reinforced housing. Gold-plated brass contacts for excellent connectivity. IP69K rating for ultimate dust and water resistance.
Sealed with silicone rubber for vibration and shock resistance. Suitable for automotive and industrial applications. 250 Volts AC rated with high insulation resistance.
This TE Connectivity Ampseal Connector provides dependable, high-performance electrical connections in harsh environments, ideal for automotive, industrial, agricultural, construction, and marine sectors. Explore more quality connectors and related components on EnvMart to enhance your electronics and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a temperature range of -40°C to +125°C, making it suitable for extreme conditions.
This connector features 23 contacts arranged in 3 rows, facilitating efficient electrical connections.
It has an IP69K rating, which provides complete dust protection and resistance to high-pressure, high-temperature water jets.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are brass plated with gold for superior conductivity.
It uses solder termination, which is suitable for secure electrical connections.
It supports up to 250 Volts AC, ensuring safe electrical performance in automotive applications.
The dimensions are 60.8mm in width, 34.3mm in depth, and 32.1mm in height.
Yes, it is sealed with silicone rubber to withstand high vibration and shock environments, making it reliable for demanding applications.
It is suitable for automotive applications including trucks, buses, agriculture, marine, and two-wheelers.
It maintains an insulation resistance of at least 100 megaohms, providing effective electrical performance.
It features a panel mount design, allowing for secure installation in various applications.
The connector is manufactured in India.
