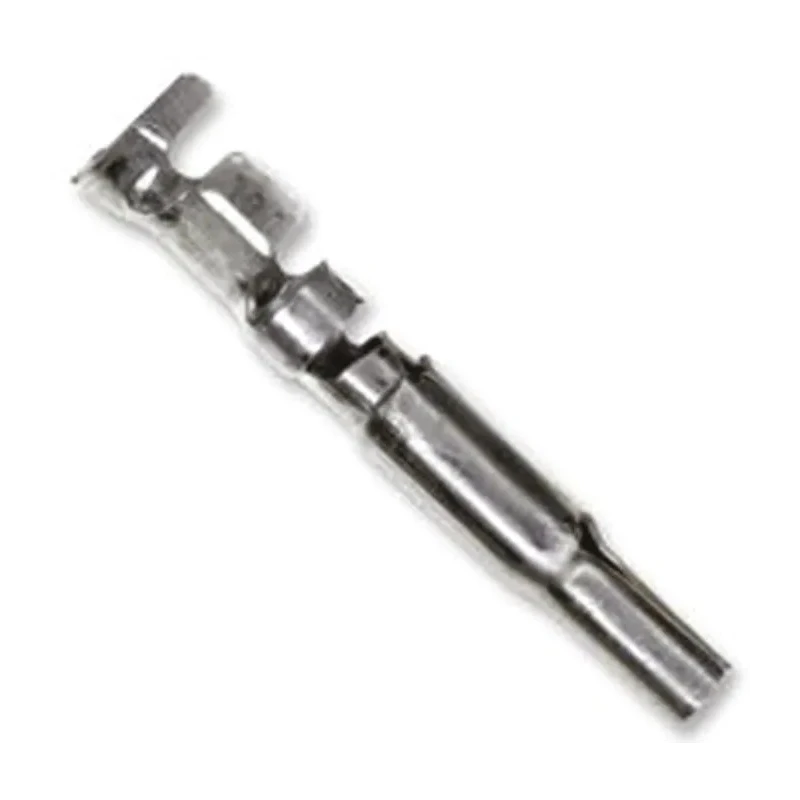

TE Connectivity Universal MATE-N-LOK Female Crimp Terminal, 10A Current, 18-14 AWG Wire Size, Tin Plated Phosphor 350919-3

TE Connectivity 350919-3 Universal MATE-N-LOK Female Crimp Terminal is a precision engineered PCB contact designed for reliable and secure electrical connections in electronic assemblies. With a robust phosphor bronze construction and a tin plating finish, it ensures long-lasting performance in various operating environments.

Intended for use with Universal MATE-N-LOK connector housings, this female Crimp Terminal accommodates wire sizes from 18 AWG (0.8mm²) to 14 AWG (2mm²), supporting currents up to 10A. The contact's length of 22.23mm ensures compatibility with standard MATE-N-LOK series connectors.

The crimp termination type provides a secure and efficient connection of wire and cable to the terminal, making it suitable for industrial applications in consumer electronics, HVAC systems, commercial power supplies, and other electrical equipment installations requiring dependable connections.

The contact features a straight orientation for streamlined assembly and ease of use. It is rated for operation in temperatures ranging from -30°C up to 105°C, allowing for wide applicability across different environmental conditions. The maximum contact resistance is tightly controlled at 500 milliohms to assure optimal electrical conductivity and minimal power loss.

TE Connectivity's Universal MATE-N-LOK range offers versatile solutions for grouping multiple electronic connections while maintaining high standards for durability and performance. This specific contact is a female terminal designed for efficient and reliable interconnection in printed circuit board assemblies.

Constructed from phosphor bronze material to provide high strength and conductivity. Tin plating enhances corrosion resistance and electrical contact quality. Supports crimp termination for fast and reliable wire attachment.

Suitable for wire sizes from 18 AWG to 14 AWG for broad flexibility. Rated for 10 ampere current handling capacity ensuring robust performance. Operating temperature range from -30°C to 105°C for diverse application environments.

Straight contact orientation simplifies installation procedures. Length of 22.23mm suitable for industry-standard connector housings. Designed for Universal MATE-N-LOK connector housing compatibility. Ideal for use in consumer electronics, HVAC, commercial power supplies, and similar industrial applications.

Choose TE Connectivity Universal MATE-N-LOK contacts for reliable, high-quality PCB connector solutions to ensure efficient and secure electronic assemblies. Browse more in the Crimp Contacts category on EnvMart.
