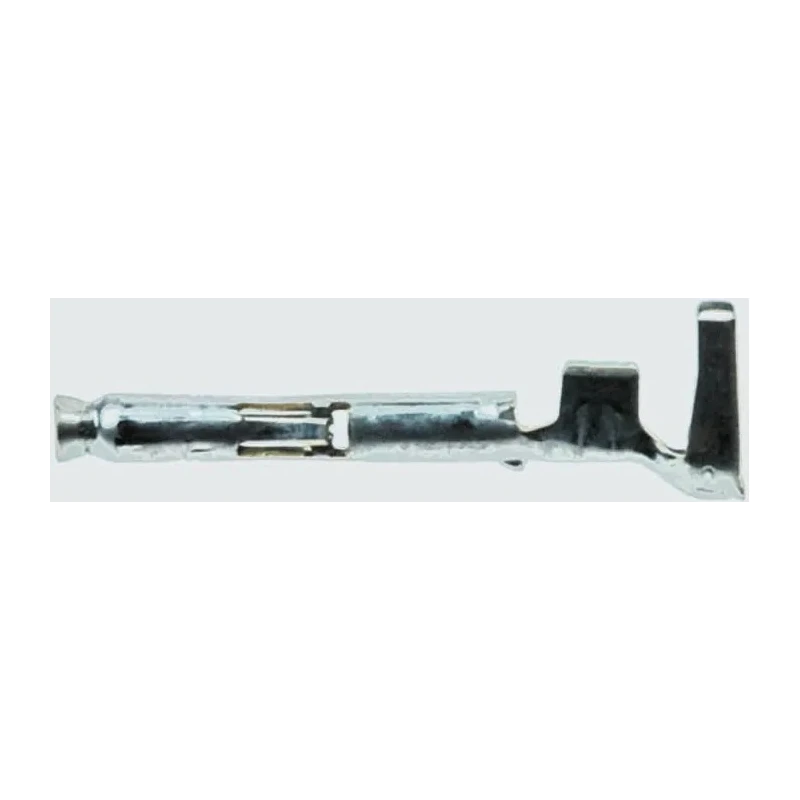

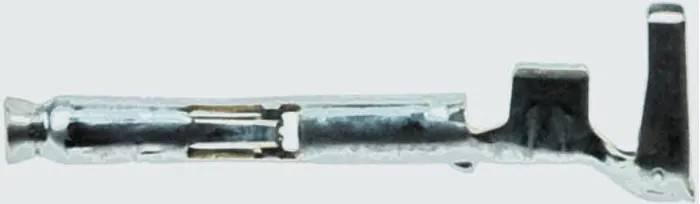

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 7A Current 22-18 AWG 105°C 170366-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Model | 170366-4 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.9mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Mini-Universal MATE-N-LOK connector housings.
- Designed for wire sizes ranging from 22 AWG to 18 AWG.
- Constructed with phosphor bronze contact material plated with tin.
- Maximum contact resistance of 10 milliohms ensures signal integrity.
- Operates reliably in temperatures from -20°C to 105°C.
- Termination is by crimping for secure wire contacts.
- Female gender contact suitable for corresponding male connectors.
- RoHS compliant for environmental safety.
Product Description
TE Connectivity 170366-4 Female Crimp Terminal is specifically designed to fit Mini-Universal MATE-N-LOK connector housings, widely used in electronics and electrical applications requiring secure wire terminations. This crimp terminal supports a current rating of 7 amperes and accommodates wire sizes from 22 to 18 AWG (0.3 to 0.9 mm²), making it adaptable for various wiring requirements.
Manufactured using phosphor bronze for durability and excellent electrical conductivity, this crimp terminal is plated with tin to enhance corrosion resistance and ensure reliable signal transmission. The maximum contact resistance is limited to 10 milliohms, which helps maintain system efficiency.
The product is rated for operation in temperatures between -20°C and 105°C, suitable for many industrial, manufacturing, and commercial electronics environments. Its termination type is crimping, which provides a secure and robust connection for wire leads.
The female gender configuration is designed to mate securely with male contacts in systems using the Mini-Universal MATE-N-LOK series, commonly utilized in power connectors and PCB wiring assemblies.
This component is RoHS compliant, ensuring it meets hazardous substance standards. No other certifications or standards approvals are provided. Compatible with Mini-Universal MATE-N-LOK connector housings. Wire size support: 22 AWG minimum to 18 AWG maximum.
Phosphor bronze contact material increases durability and conductivity. Tin plating enhances corrosion resistance. Maximum contact resistance of 10 milliohms. Operational temperature range: -20°C to 105°C. Crimp termination ensures secure wire connections.
Female gender contact for system compatibility. RoHS compliant to environmental standards.
This crimp terminal is ideal for industrial, electronic component manufacturing, and electrical system assembly applications where reliable wire connections are essential. It supports designs requiring compact, efficient power and signal transmission connections using the Mini-Universal MATE-N-LOK system.
Explore more high-quality connectors and terminal accessories on EnvMart to enhance your electronics assembly and production capabilities.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 7 amperes.
It accommodates wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.9 mm²).
The maximum contact resistance is 10 milliohms, which helps ensure signal integrity.
It operates reliably in temperatures from -20°C to 105°C.
This terminal uses crimp termination for secure wire connections.
The contacts are made from phosphor bronze and are plated with tin to enhance corrosion resistance.
Yes, it is RoHS compliant, meeting hazardous substance standards.
It is specifically designed for Mini-Universal MATE-N-LOK connector housings.
This terminal has a female gender configuration, suitable for mating with corresponding male connectors.
The country of origin for this product is India.
It is suitable for industrial, electronic component manufacturing, and electrical system assembly applications.
The specific dimensions and weight are not provided in the product details.
