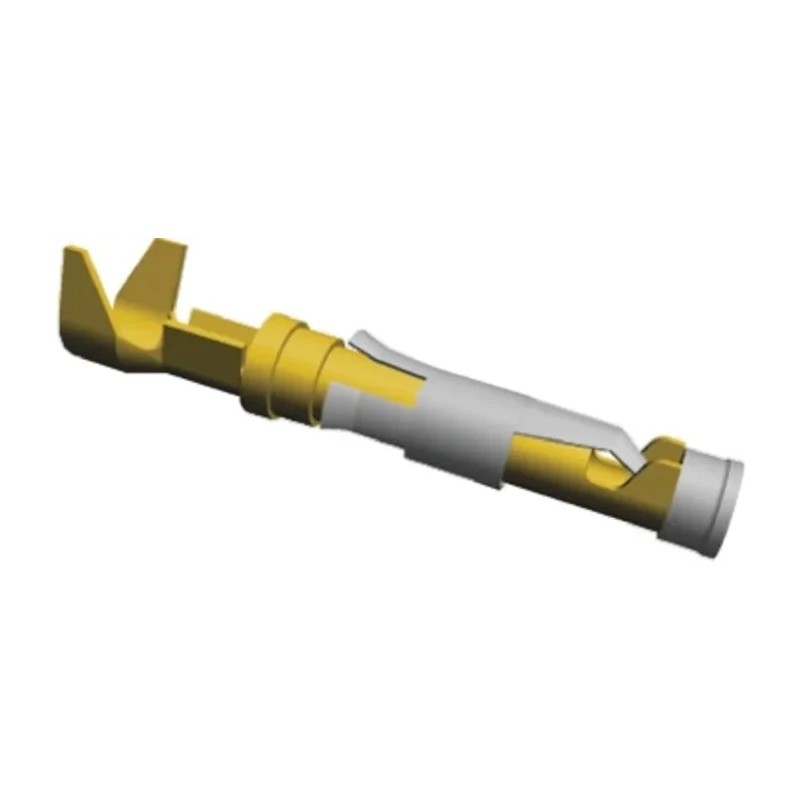

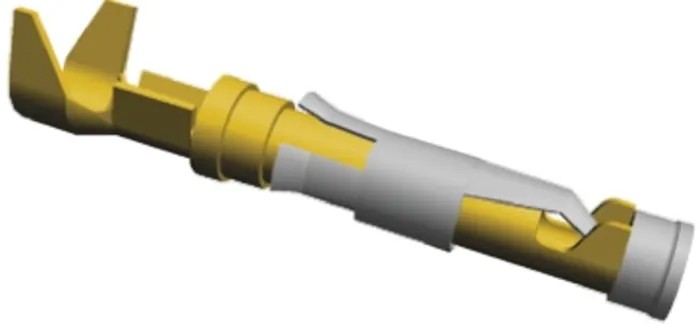

TE Connectivity Type III Series Female Crimp Terminal, 24 AWG Min, 20 AWG Max, 13A Current, Brass with Gold Plating 66563-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 13.46mm |
| Model | 66563-8 |
| Gender | Female |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| For Use With | G Series, M Series and Metrimate Connector Housings, CPC |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Constructed with brass contact material and gold plating for enhanced conductivity and corrosion resistance.
- Compatible with G Series, M Series, and Metrimate connector housings, as well as CPC connectors.
- Termination is by crimping, providing reliable and secure wire connections.
- Operating temperature range spans from -55°C to 150°C ensuring performance in various environments.
- Physical length of the terminal is 13.46 mm for precise fitment.
- Designed with a high normal force spring for low resistance in dry circuit signal conditions.
- Closed-ended mating entry prevents damage from misalignment and stubbing.
- Suitable for electronics, power connectors, and industrial automation applications.
Product Description
TE Connectivity 66563-8 Type III Series female crimp terminal is engineered for robust electrical connections in industrial and electronic assemblies. With a current rating of 13A, it supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum, making it versatile for various power and signal applications.
The contact material is brass with gold plating that ensures superior conductivity and corrosion resistance under demanding environmental conditions. The termination type is crimp, guaranteeing a secure and reliable connection optimized for use with G Series, M Series, and Metrimate connector housings, as well as CPC connectors.
Its operational temperature range of -55°C to 150°C enables use in aerospace, automotive, manufacturing, and industrial automation sectors where temperature extremes are common.
The design features a length of 13.46 mm and a closed-ended mating entry to avoid damage caused by misalignment, while a stainless steel spring provides excellent normal force and retention within the housing, ensuring low resistance in critical dry circuit signal applications.
Supplied in reels ready for seamless insertion into automated production machinery, these terminals enhance manufacturing efficiency and consistency. This product is ideal for electronics, power connectors, and industrial applications requiring reliable, high-quality crimp contacts.
Constructed of brass with gold plating for robustness and conductivity. Supports 24 AWG minimum to 20 AWG maximum wire sizes. 13A current rating suitable for various industrial uses. Operating temperature from -55°C to 150°C for wide applicability.
Precise 13.46 mm length for accurate installation. Designed for use with major connector series including G Series and Metrimate. Features a closed-ended mating entry preventing terminal damage. High retaining force provided by stainless steel spring for secure connections.
Supplied on reels ready for automation to improve production efficiency. Explore more reliable connectors and Crimp Terminals in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 13A, making it suitable for various power applications.
It supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum.
The terminal is constructed with brass contact material and features gold plating for enhanced conductivity and corrosion resistance.
The operating temperature range spans from -55°C to 150°C, allowing for use in various environments.
The physical length of the terminal is 13.46 mm, ensuring precise fitment in applications.
It is compatible with G Series, M Series, and Metrimate connector housings, as well as CPC connectors.
The termination type is crimp, providing reliable and secure wire connections.
The terminal is designed with a closed-ended mating entry that prevents damage from misalignment and stubbing.
The high normal force spring provides low resistance in dry circuit signal conditions, ensuring reliable connections.
It is suitable for electronics, power connectors, and industrial automation applications.
The country of origin for this terminal is India.
