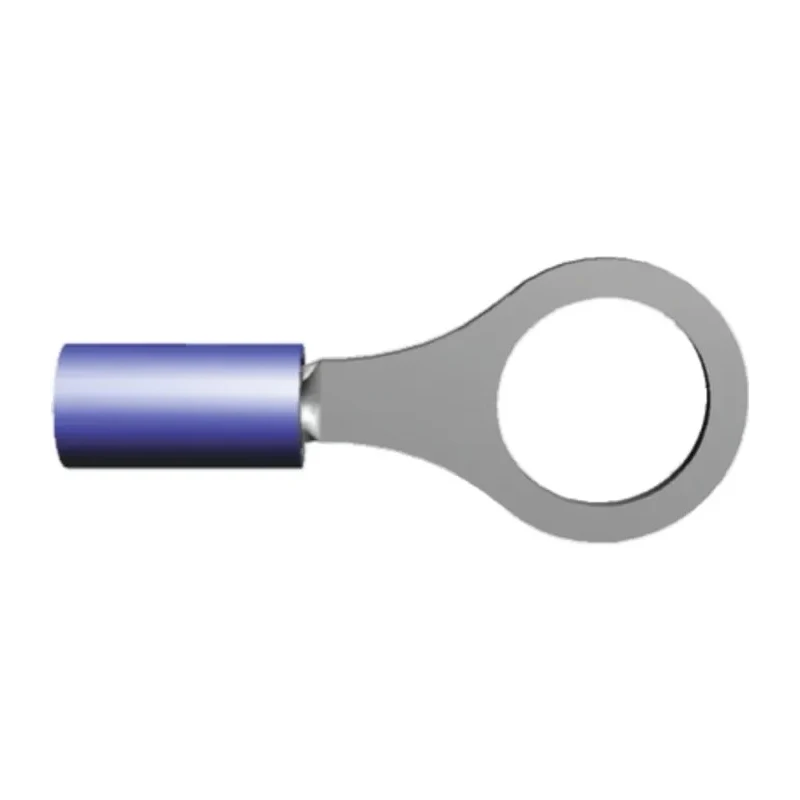

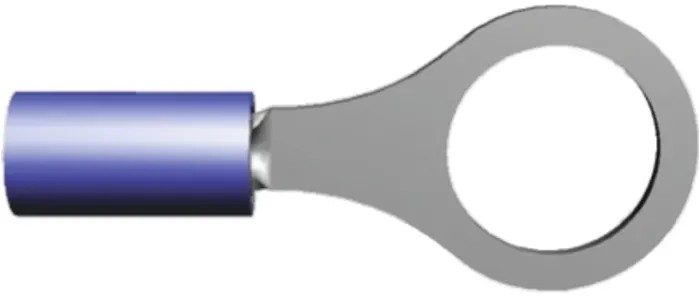

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size Blue 2-36160-1

TE Connectivity 2-36160-1 PIDG Insulated Ring Terminal is engineered for dependable electrical connections in industrial and commercial applications. The M5 stud size combined with support for 16 AWG to 14 AWG wire sizes makes it versatile for various wiring needs.

The terminal features a high conductivity copper body with a tin-plated contact surface to resist corrosion and enhance durability during installation and operation. The wire barrel incorporates serrations that improve contact integrity and tensile strength ensuring secure crimps under tough circuit conditions.

An inner copper sleeve offers extra wire insulation support minimizing risk of wire fraying and electrical faults. The outer blue nylon insulation sleeve not only provides mechanical protection but also facilitates quick identification of wire size during assembly or maintenance.

Designed to withstand maximum operating temperatures of 105°C, this ring terminal complies with RoHS environmental standards. This makes it an ideal choice for use in instruments and control panels, lighting systems, power supply units, transportation equipment, lifting apparatus, motors, aerospace applications, and household appliances.

Constructed with high conductivity copper for optimal electrical performance. Features a nylon insulation sleeve colored blue for easy wire size identification. Suitable for wire sizes ranging from 16 AWG to 14 AWG. Overall length of 21.82 mm with precise stud size of M5.

Contact surface plated with tin to ensure corrosion resistance. Designed with serrations in the wire barrel for maximum contact and tensile strength. Maximum operating temperature rated at 105°C, ideal for demanding environments.

Complies with RoHS standards ensuring environmental safety. Provides improved wire insulation support with a copper sleeve inside the barrel.

These PIDG ring terminals from TE Connectivity provide a uniform and reliable crimp, suitable for fast wire insertion and high-speed production environments. Their compliance with industry standards ensures suitability across a broad range of electrical wiring applications with consistent performance.
