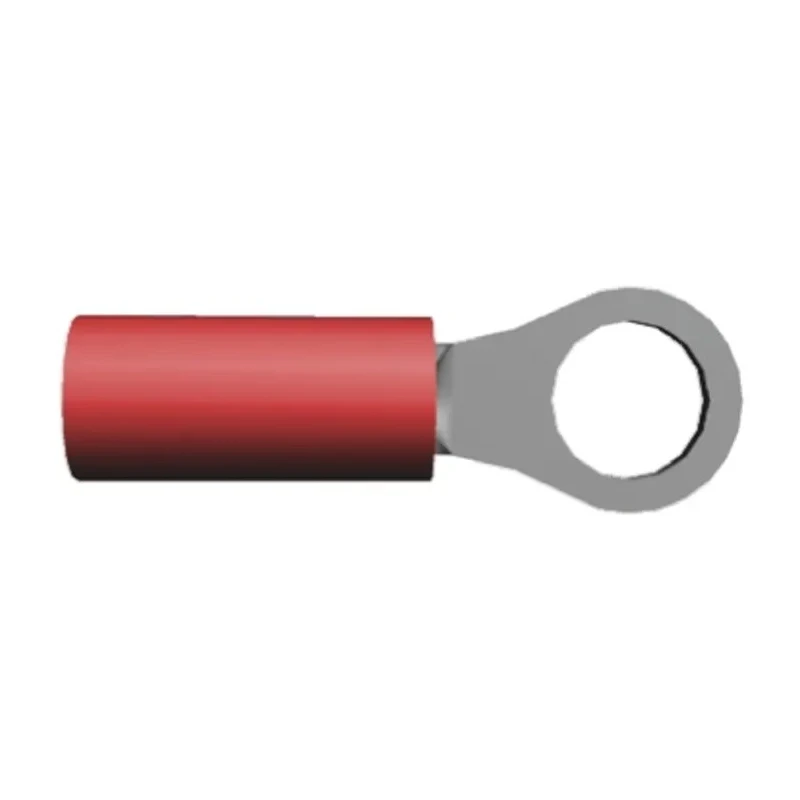

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Nylon Red 31887

TE Connectivity 31887 PIDG Insulated Ring Terminal is a high-quality electrical connector designed for reliable wire connections. It supports wire sizes from 22 AWG to 16 AWG and features an M5 stud size, making it suitable for a wide array of industrial, automotive, and electronic applications requiring secure crimped terminations.

The terminal features a high conductivity copper body with a tin-plated contact to resist corrosion and ensure long-lasting electrical performance. Its copper sleeve reinforces wire insulation support, preventing fraying and enhancing mechanical strength. The nylon insulation sleeve is color-coded red, allowing for quick wire size identification and aiding in orderly wiring installations.

Serrations inside the wire barrel enhance contact area and tensile strength after crimping, guaranteeing uniform crimps that hold firmly under vibration and stress. The funnelled wire entry design simplifies wire insertion, allowing for efficient high-speed production assembly lines.

These PIDG ring terminals comply with or exceed MIL-T-7928, Type II, Class 1 and 2 standards, confirming their suitability for demanding environments, including instrumentation, control panels, lighting, power supplies, transportation equipment, motors, aerospace, and appliance wiring.

High conductivity copper body for excellent electrical conduction. Tin plating on contacts offers corrosion resistance and durability. Nylon insulation sleeve for wire identification and insulation support. Serrated barrel ensures strong mechanical and electrical integrity post-crimping.

Funnelled wire entry enhances ease of assembly and prevents strand damage. Compact overall length of 20.24 mm fitting tight spaces. Supports wire gauge range from 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²). Maximum operating temperature rating of 105°C suitable for harsh conditions.

Manufactured in the United States adhering to rigorous quality standards. Ideal for industrial, automotive, aerospace, and general electrical wiring applications.

Choose TE Connectivity PIDG Insulated Ring Terminals for dependable connectivity that meets stringent industry requirements. Explore the full range of Ring Terminals and electronic components available for your power and signal wiring needs at EnvMart.
